Quail Digital Pro9 Installation Manual page 5

Step 6 You now fit the Drive-Thru Module
(Q-P9DTM) into to the speaker post between
the microphone and speaker to suit using the
flanges and 4 screws.
Step 7 Next install a single length of
direct burial Cat5 cable from the DTM in
the speaker post, through the conduit
into the likely location of the base station
(Q-P9BS) in the kitchen area. Then using your
crimping tool terminate both ends of the
cable with RJ45 plugs, remembering to fit
the waterproof connection cover onto the
CAT5 at the DTM end. Use your Cat5 tester to
confirm a PASS for a full 8 cable test. This is
the colour code sequence for wiring the plug.
Step 8 Plug in the Cat5 cable and the
speaker and the microphone to their
respective sockets on the DTM as shown.
Step 9 Before connecting the loop to the
DTM ensure you have checked the loop
lead-in wires for continuity. If this test fails,
check/test or replace the loop as required.
If the test is successful, proceed to connect
loop lead-in wires to the screw terminals of
the DTM as shown.
Now go straight to Step 11.

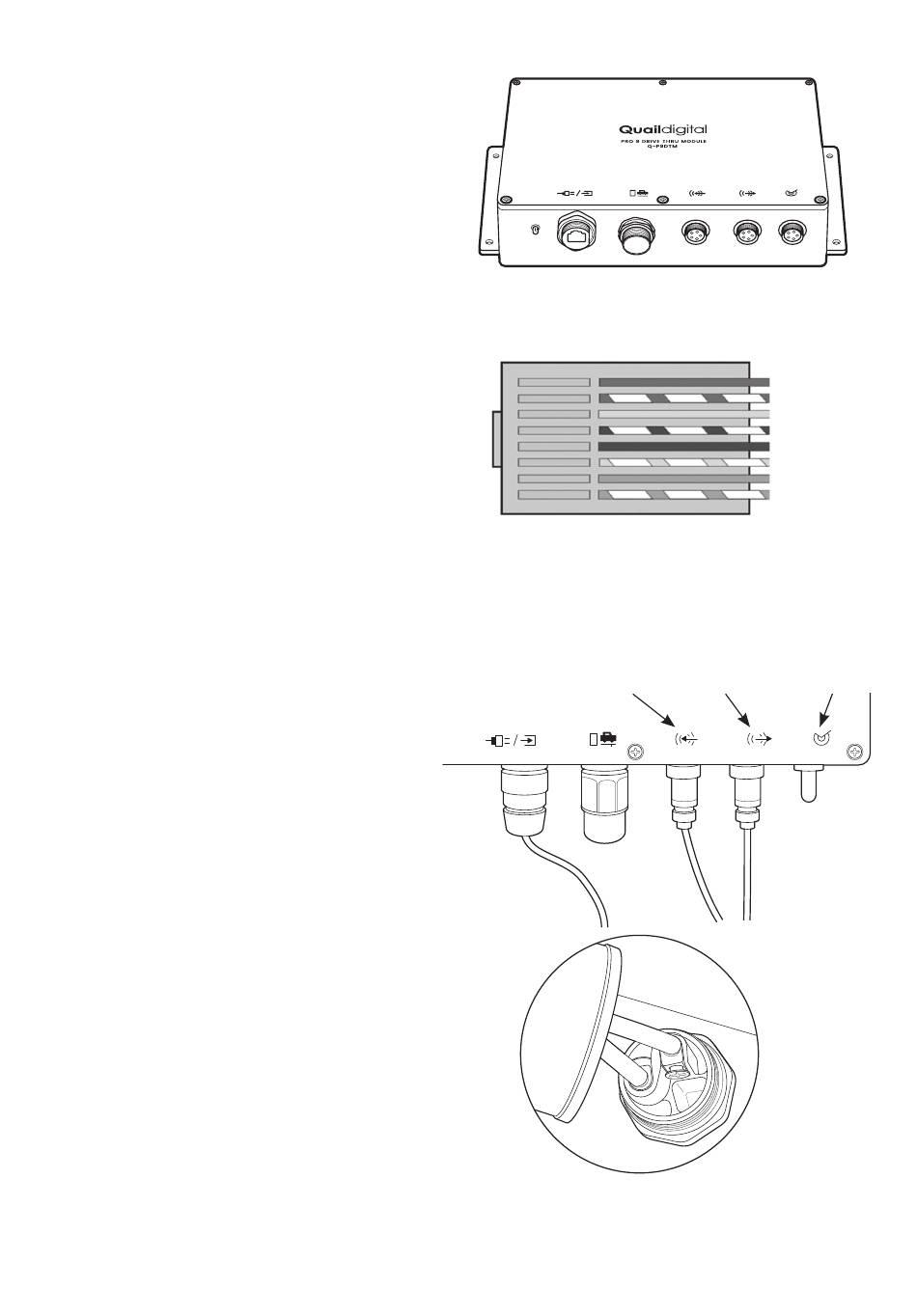

Figure 3 - Pro9 Drive-Thru Module
Figure 4 - Type B RJ45 termination colour code
Connection
to mic
Figure 5 - Loop connection
brown
brown/white
green
blue/white
blue
green/white
orange
orange/white
Connection Connection
to speaker to sonar
page 5
