Operating Instructions • Warning Information
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
SPECIFICATIONS
Free Speed: . . . . . . . . . . . . . . . . . . . . . . . . 15,000 RPM
Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 .9 HP
Air Inlet: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Recommended Hose Size: . . . . . . . . . . . . . . . . . .3/8" I .D .
Recommended Air Pressure: . . . . . . . . . . . . . . . . 90 psig
Air Consumption: . . . . . . . . . . . . . . . . . . . . . . . .3 .6 CFM
Length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 .5"
Net Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 .85 lbs .
Wheel Size: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 .0"
Sound Level . . . . . . . . . . . . . . . . . . . . . . . . . . . .89 dBA
Vibration Level . . . . . . . . . . . . . . . . . . . . . . . . . . 1 m/s²
CAT850XLR
• Parts Breakdown
WARNING
• MaxiMuM RPM of 15,000
• Max. aiR PRESSuRE:
90 pSig, 6.2 bAR
ALwAYS ReAd
inSTRuCTionS befoRe
uSing poweR TooLS
ALwAYS weAR
SAfeTY goggLeS
ALwAYS weAR heARing
pRoTeCTion
ALwAYS weAR fACe
pRoTeCTion
ALwAYS weAR hAnd
pRoTeCTion
Avoid pRoLonged
eXpoSuRe To vibRATion
RATed RpM of The
ACCeSSoRY MuST
RPM
RPM
RPM
eXCeed The MAXiMuM
TooL RpM Shown
CAT850XLR

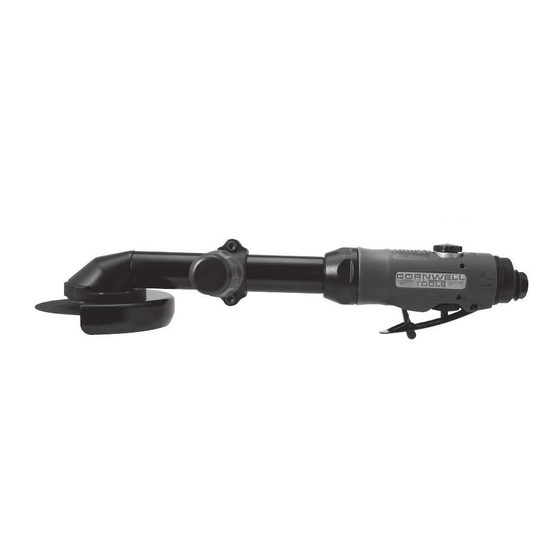

Reversible Extended
Cut-Off Tool
Copyright © Professional Tool Products, 2015
All rights reserved
Rev. 2/3/15
