Audio Design Associates ada-pac PTM-1645 Instructions

PAC Instructions for PTM-1645 & PTM-8100 Amps

Introduction

The PAC amplifier power controller is used in new
ADA PTM-1645 and PTM-8100 amplifiers. It incor-
porates a micro-controller for turn on power inrush
control and smart zone trigger control. Triggers are
activated by voltage input or by RS-232 data control.
You may use the triggers normally on a one to one
basis or you may custom assign any amplifier zone(s)
to any preamplifier trigger. Amplifiers can be set to
one of nine possible addresses permitting up to nine
amplifiers to be PAC linked together. You can also
select the bypass mode on the rear panel which will
activate all triggers anytime the main power is on.
The PTM-1645 has eight individually controlled ste-
reo outputs. The PTM-8100 has four individually
controlled stereo outputs. As such, only zones 1-4
are valid on the PTM-8100.
The PAC circuit is not an ADA bus device. For data
control it requires its own discrete serial port as there
is no handshaking, data flow control or collision de-
Entering Setup, Default Restore, Quick Turn On & Addresses
1. Plug data cable into unit to be setup, no loop throughs.
2. Start hyperterminal program set properties to serial port
to be used with 8N1, flow control none, at 19,200 baud.
3. Hold Setup button on the rear of unit for more than 5
seconds and release. The LED will blink when the button is
released indicating setup mode and the PC's screen will update.
Setup will time out after 60 seconds of inactivity. Alternatively,
pressing the Setup button once or turning the main Power switch
off and on will also escape the setup mode.
Keyboard Entries - Any letters used must be uppercase only.
Press <ENTER> at anytime to update screen.
Pressing <ENTER> in the middle of an incomplete string will
update screen with no changes.
D <ENTER> sets all triggers to default 1 to 1 settings, screen
will update.
Q <ENTER> toggles the Quick Turn On mode and the PC's
screen will update. In Quick Turn On mode, the amplifier's
power supply is always on so the turn on response time will be
Audio Design Associates 602 Mamaroneck Ave. White Plains, NY 10605 Tel: 1-800-HD-AUDIO Fax: 914-946-9620 www.ada-usa.com
tection as with ADA bus devices. No special setup
program is required. Hyperterminal, included with
most Windows based PC's or any suitable terminal
program can be used.

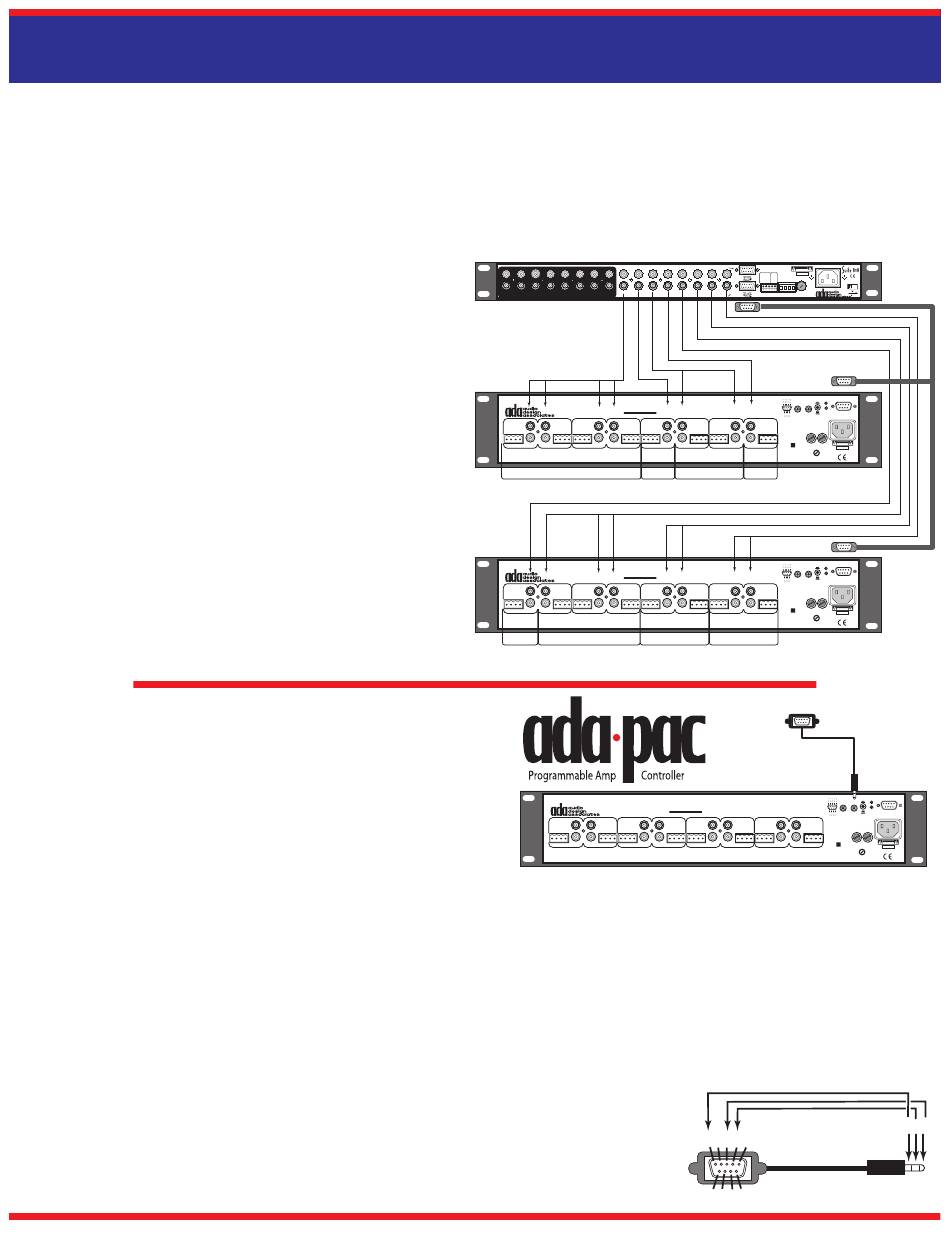

L L L L L L
R R R R
R R
1 2 3 4 5 6 7 8 1 2 3 4
AUDIO INPUTS ZONE OUTPUTS
Line-Level Stereo
Audio Cables
With "Y" Splitters or
Audio Distribution
Devices
PTM-1645
16 Channel Power Amp
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5
L L L
16-2 16-2 16-2 16-2 16-2
+ - - + + - - + + - - + + - - + + - - +
L R L R L R L R L R
R R R
10K 10K 10K 10K 10K 10K
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Warning! Do Not Short Outputs
WARNING! Risk Of Hazardous Energy! AVERTISSEMENT! Energie Electrique Dangereuse! Faire Des Connexions
Make Proper Connections. Propres Pour L'Hautparleur. Voir La Notice De Fonctionnement.
Deck & Pool Kitchen
Preamp Zone 1 Zone 2
Amp Address 1 - Zones 1-4 Amp1-Zn5
PTM-1645
16 Channel Power Amp
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5
L L L
16-2 16-2 16-2 16-2 16-2
+ - - + + - - + + - - + + - - + + - - +
L R L R L R L R L R
R R R
10K 10K 10K 10K 10K 10K
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Warning! Do Not Short Outputs
WARNING! Risk Of Hazardous Energy! AVERTISSEMENT! Energie Electrique Dangereuse! Faire Des Connexions
Make Proper Connections. Propres Pour L'Hautparleur. Voir La Notice De Fonctionnement.
M. Bath Master Suite Home Office
Zone 5 Preamp Zone 6 Preamp Zone 7
Amp2-Zn1 Amp 2-Zones 2-4 Amp 2-Zns 5&6
PTM-1645
16 Channel Power Amp
ZONE 1 ZONE 2 ZONE 3 ZONE 4
L L
16-2 16-2 16-2 16-2
+ - - + + - - + + - - + + - -
L R L R L R L R
R R
10K 10K 10K 10K
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3
Warning! Do Not Short Outputs
WARNING! Risk Of Hazardous Energy! AVERTISSEMENT! Energie Electrique Dangereuse! Faire Des Connexions
Make Proper Connections. Propres Pour L'Hautparleur. Voir La Notice De Fonctionnement.
immediate. This is useful for paging applications or where an
instant response is required. When Quick Turn On mode is off,
the amplifier's power supply is in standby when any zone is not
active. The first time the amp is activated, there will be a 3
second delay for the current inrush limiter before audio can be
heard. The inrush limiter also operates the first time the amp
mains are powered when Quick Turn On mode is on.
A1 <ENTER> sets amplifier address to 1 and the PC's screen
will update. Addresses allowed are 1 through 9 (A# <ENTER>).
9 Pin D RS-232
Connector To
1/8" Mini
Connector (Stereo)
Suite 8x8 Preamplifier
75 Watts Max Power
TO IRL-5000/ACC-48
Paging CAUTION
Input/Trigger RISK OF ELECTRIC SHOCK
DO NOT OPEN
L L ATTENTION!
Balanced Trigger
In 7 RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR
In 6 In 8 Audio Page 5-24V ADA Bus®
+12VDC In 5 Gnd Input (600 ) AC•DC MADE IN U.S.A.
Triggers In 4 In 1 1 2 3 4
In 3 In 2 1 2 3 4 5 Voltage
Gnd Fdbk Cntrl +VDC
Com (+) (-) (+) (-) 3/4 ASB Selector
115V~
R R
115 V
3/8 ASB
230V~ 115V 230V
5 6 7 8 Zn 6 Zn 7 Zn 8 WARNING! Risk Of Hazardous Energy! Make Proper Connections.
+12VDC Zn 5 Gnd AVERTISSEMENT! Energie Electrique Dangereuse! Faire Des Replace
Triggers Zn 4 Zn 1 Connexions Propres Pour L'Hautparleur. Voir La Notice De Fonctionnement. With Same
TO DB-9 OR PTM-1645/1225/1260 Zn 3 Zn 2 CAUTION: Disconnect Supply Cord Before Servicing.
ATTENTION: Debrancher Avant Le Depannage. Value Fuse
Bypass
L.V. Trigger
Trigger
RS-232 I/O
Typical Power: 100-200 Watts
Ultimate Max. Power: 600 Watts Program
Average Thermal Load: 1024 BTU/Hr OUT IN Setup
L.V. Trigger
600 Watts Max.
Connect to
Suite 8x8 or
ZONE 6 ZONE 7 ZONE 8
L Suite 16 P-16
16-2 16-2 16-2 Zone Triggers Fuse Stndby Main
115V~ 1/8 ASB 5 ASB
+ - - + + - - + + - - +
L R L R L R
Conversion to 230V
R
Operation Requires
Internal Modification
CAUTION
10K 10K RISK OF ELECTRIC SHOCK
1 2 3 4 1 2 3 4 1 2 3 4 230V~ 1/16 ASB 2.5 ASB DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR
MADE IN U.S.A.
CAUTION! WARNING!
Remove Plug Prior to Changing Fuse Push & Turn 90º
CAUTION: Disconnect Supply Cord Before Servicing.
ATTENTION: Debrancher Avant Le Depannage.
Living/Dining Family
PTM-1645 Amplifier
Zone 3 Zone 4
(Set to Address 1)
Amp1-Zns6&7 Amp1-Zn8
Bypass
L.V. Trigger
Trigger
RS-232 I/O
Typical Power: 100-200 Watts
Ultimate Max. Power: 600 Watts Program
Average Thermal Load: 1024 BTU/Hr OUT IN Setup
L.V. Trigger
600 Watts Max.
Connect to
ZONE 6 ZONE 7 ZONE 8 Suite 8x8 or
L Suite 16 P-16
16-2 16-2 16-2 Zone Triggers Fuse Stndby Main
115V~
+ - - + + - - + + - - + 1/8 ASB 5 ASB
L R L R L R
Conversion to 230V
R
Operation Requires
Internal Modification
CAUTION
10K 10K RISK OF ELECTRIC SHOCK
1 2 3 4 1 2 3 4 1 2 3 4 230V~ 1/16 ASB 2.5 ASB DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
CAUTION! WARNING!
Remove Plug Prior to Changing Fuse Push & Turn 90º
CAUTION: Disconnect Supply Cord Before Servicing.
ATTENTION: Debrancher Avant Le Depannage.
Exercise
PTM-1645 Amplifier
Preamp Zone 8
(Set to Address 2)
Amp 2-Zns7&8
9 Pin D Connector (RS-232)
To 1/8" Mini Connector (Stereo)
Bypass
Trigger
RS-232 I/O
Typical Power: 100-200 Watts
Ultimate Max. Power: 600 Watts
Average Thermal Load: 1024 BTU/Hr OUT IN
L.V. Trigger
Connect to
Suite 8x8 or
ZONE 5 ZONE 6 ZONE 7 ZONE 8
L L Suite 16 P-16
16-2 16-2 16-2 16-2 Zone Triggers Fuse Stndby
115V~
+ + - - + + - - + + - - + + - - + 1/8 ASB
L R L R L R L R
Conversion to 230V
R R
Operation Requires
Internal Modification
10K 10K 10K 10K
4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 230V~ 1/16 ASB 2.5 ASB
CAUTION!
Remove Plug Prior to Changing Fuse
CAUTION: Disconnect Supply Cord Before Servicing.
ATTENTION: Debrancher Avant Le Depannage.
5 4 3 2 1
9 8 7 6
9-Pin Ribbon
Cable with
9 Pin
D Connectors
L.V. Trigger
Program
Setup
600 Watts Max.
Main
5 ASB
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR
MADE IN U.S.A.
WARNING!
Push & Turn 90º
5 2 3
