Summary of Contents for CYP DCT-17

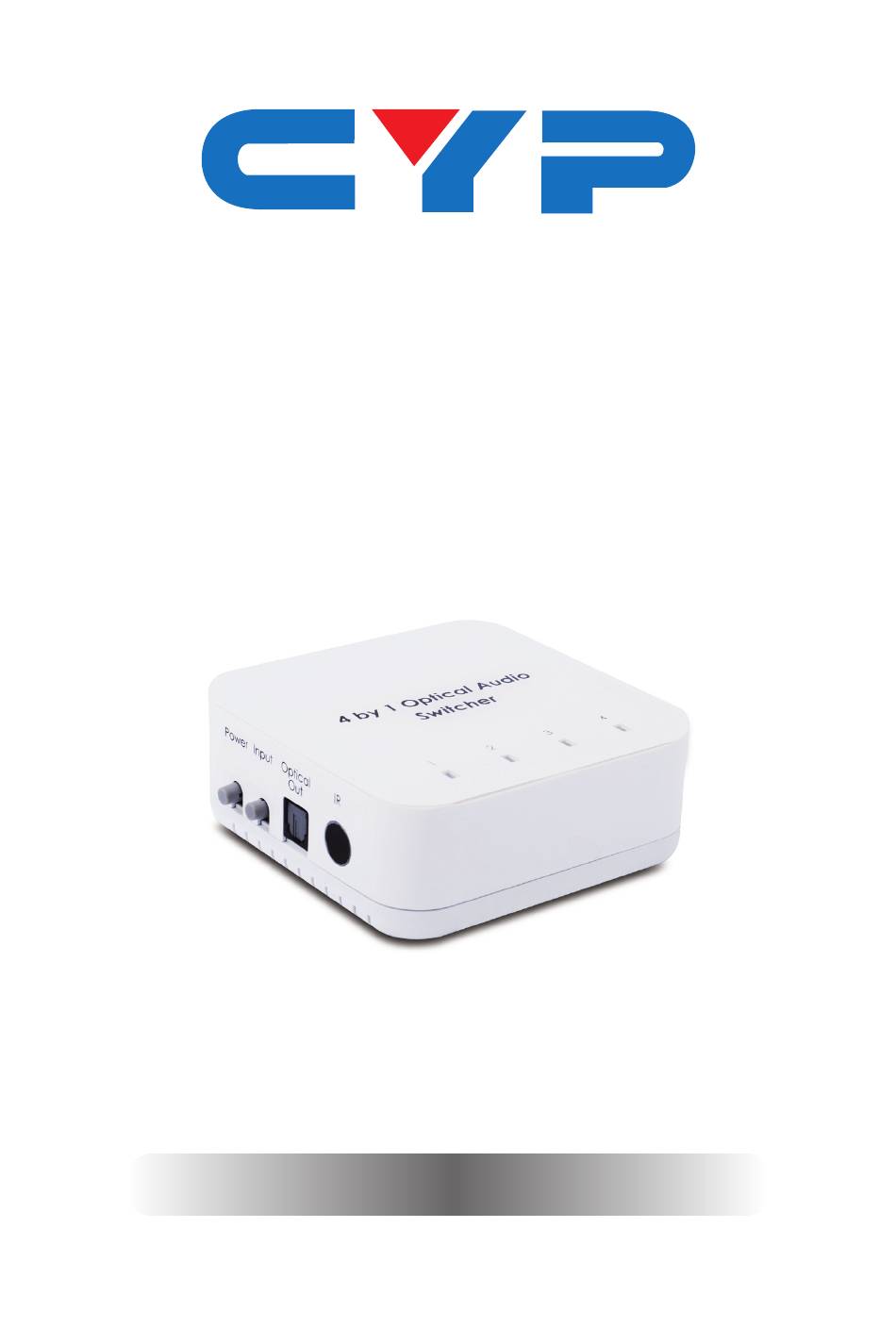

- Page 1 DCT-17 4×1 Optical Audio Switcher with IR Remote Operation Manual Operation Manual...
- Page 3 DisclaiMers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 safety precautiONs Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
cONteNts 1. introduction ..........1 2. applications ........... 1 3. package contents ........ 1 4. features ..........1 6. Operation controls and functions ..2 6.1 Top Panel ..........2 6.2 Left Panel ..........2 6.3 Right Panel ........3 6.4 Rear Panel .........3 6.5 Remote Control ........3 7. -
Page 6: Introduction

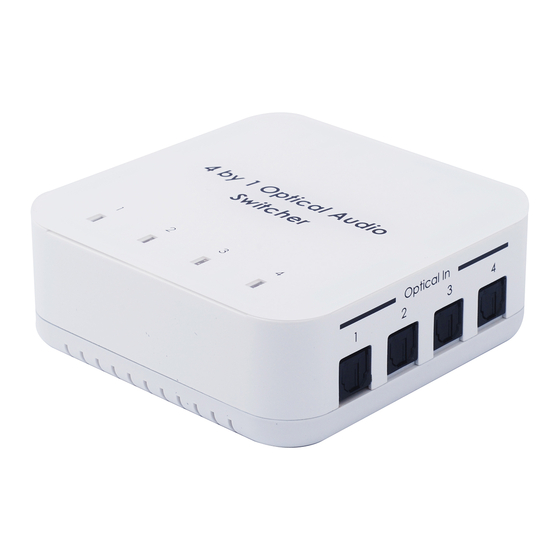

1. iNtrODuctiON The 4 by 1 Optical Audio Switcher has four optical inputs and one optical output and allows users with multiple optical sources to switch between sources without delay. The device has a built-in last memory function and IR remote control which provides a more user-friendly experience. -
Page 7: Operation Controls And Functions
6. OperatiON cONtrOls aND fuNctiONs 6.1 top panel 4 by 1 Optical Audio Switcher input leD 1~4: The blue LED will illuminate to indicate the selected source. 6.2 left panel Optical In Optical in: Connect to the source equipment such as DVD/Blu- ray players, set-top boxes or game consoles for audio input signal routing. -
Page 8: Right Panel
6.3 right panel Power Input Optical power: Press to turn on the device or to set it to standby mode. The blue LED on the top panel will illuminate when the device is powered and switched on. input: Select the input port from 1 to 4. The blue LED on the top panel will illuminate to indicate the selected source. -
Page 9: Connection Diagram
7. cONNectiON DiagraM DvD or Blu-ray player set-top Box pc/laptop games console Digital audio inputs (Optical) 60° remote Digital audio inputs (Optical) av receiver... -
Page 10: Specifications
8. specificatiONs input ports 4×Optical sampling rate Up to 192 kHz Output port 1×Optical audio format PCM2, Dolby 5.1 & DTS 5.1 (Pass through) power supply 5 V/1 A DC ( US/EU standards, CE/FCC/ UL certified) esD protection Human body model: ±... -
Page 11: Acronyms
9. acrONyMs acrONyM cOMplete terM Infrared... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
