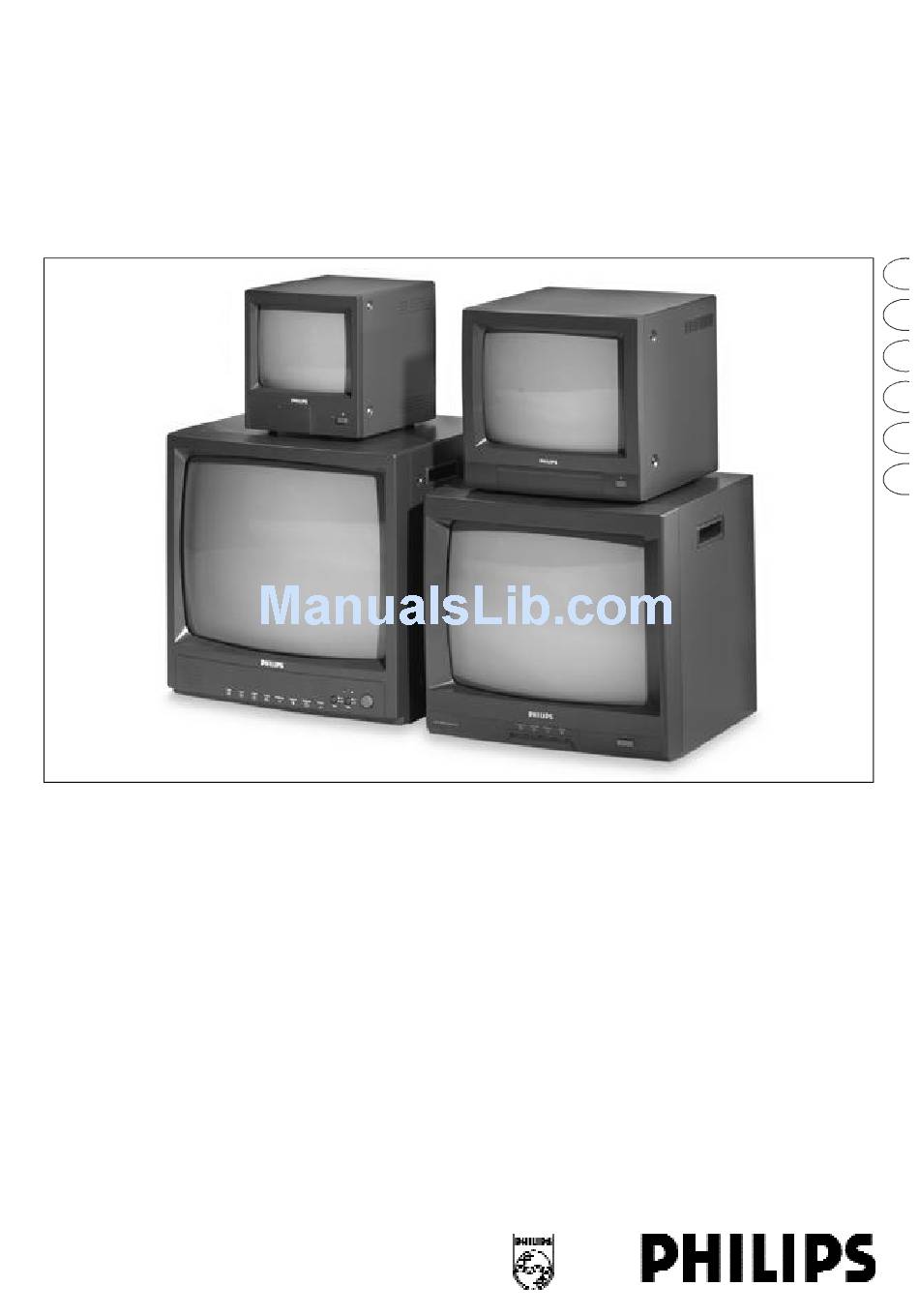

- Page 1 Instructions for Use Monochrome Video Philips Communication & Security Systems Monitors LTC 2009 LTC 2012 LTC 2017...
- Page 2 Instructions for Use...1.1 Mode d’emploi ...2.1 Bedienungsanleitung...3.1 Instrucciones de maneja ...4.1 Gebruiksaanwijzing ...5.1 Istruzioni per l’uso ...6.1...
- Page 3 Fig. 1 Monitors LTC 2009 & LTC 2012 Fig. 2 Monitors LTC 2009 & LTC 2012 connection Fig. 3 Monitors LTC 2009 & LTC 2012 looped through connection...
- Page 4 Fig. 4 Monitor LTC 2017 Fig. 5 Monitor LTC 2017 connection Fig. 6 Monitor LTC 2017 looped through connection...
-
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS 1. Read Instructions - All the safety and operating instructions should be read before the unit is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the unit and in the operating instructions should be adhered to. -
Page 7: Safety Precautions
SAFETY PRECAUTIONS CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This label may appear on the bottom of the unit due to space limitations. The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage"... - Page 8 CONTENTS Para. Title SAFETY PRECAUTIONS ..............1.3 COVER REMOVAL .
-
Page 9: Operation
INTRODUCTION Monitor Read these instructions carefully. Monitors: LTC 2009/50 9” Monitor (CCIR) 220-240 Va.c. 50 Hz LTC 2009/60 9” Monitor (EIA) LTC 2012/50 12” Monitor (CCIR) 220-240 Va.c. 50 Hz LTC 2012/60 12” Monitor (EIA) LTC 2017/50 17” Monitor (CCIR) 220-240 Va.c. 50 Hz LTC 2017/60 17”... -
Page 10: Technical Data
V-HOLD - When the picture is rolling up or down, adjust this control until a stable single picture is obtained. VIDEO IN/OUT connectors - For receiving the output from a camera, a VCR or another monitor and for connecting the video output of the monitor to the Video input of another monitor or a VCR.
