Colour Observation System
Table of contents
Introduction............................................................................................... 3
Connection and operation facilities...................................... 4
Installation.................................................................................................. 5
Operation of the monitor.............................................................. 5
How do the menus work?............................................................... 7
Menu control buttons
The menus................................................................................................... 7
Alarm function on/off
Display time and date
Time adjustment
Date adjustment
Auto install
Language selection
Alarm function......................................................................................... 9
Trouble shooting.................................................................................10
System cable ..........................................................................................11
Accessories...............................................................................................11
Tips for maintenance......................................................................11
English
Read these instructions, before putting your system in
operation.
3
Introduction
Thank you for buying our observation system. By
Page
purchasing this system you possess a sophisticated,
easy-to-operate observation and security system.
Operation and programming of the system is performed
through On Screen Display (OSD) menus. With these
menus you can adapt the system to your own
convenience.
If you follow the installation and operation instructions
as described in the following sections, you will quickly
learn how to adjust and operate your observation system.
The following items are included in this kit:
1 Monitor
1 Camera + 1 Camera wall bracket
1 System cable (25m/75ft)
1 System manual + 1 Camera manual
Accessories:
The system can be extended by one or more system
accessories or other peripheral equipment, such as:
Intercom box
Alarm/Action box
Alarm/Action box + PIR motion detector
Cameras (to a maximum of 4)
Interface box
Slave monitor (to a maximum of 3)
Mains power adapter
(Time lapse) Video Recorder (VCR)
6
4
4
1

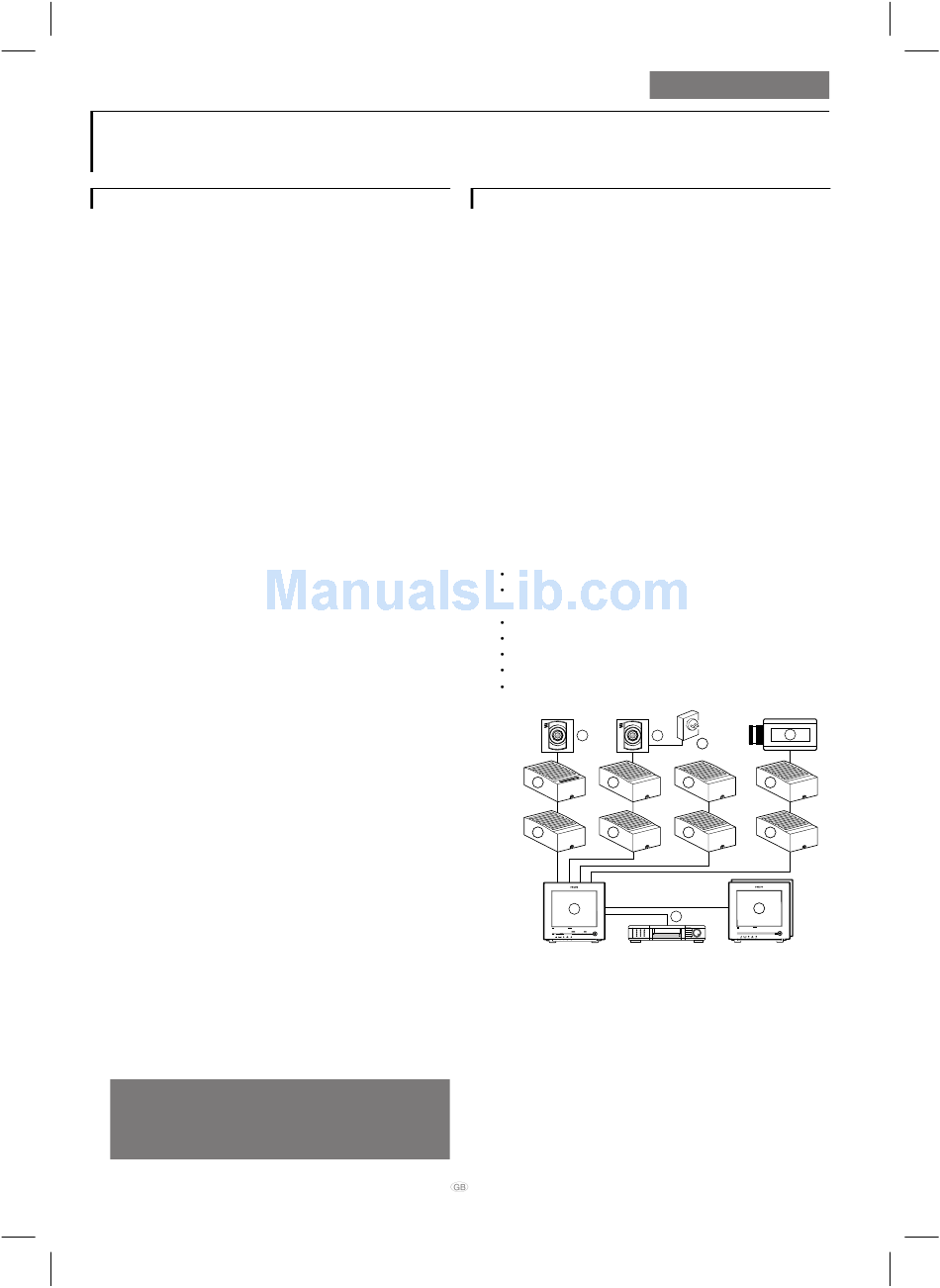

Colour Observation system
talk action
menu
_
+
auto
next
view
1 System monitor
2 Video recorder (VCR)
3 Slave monitor(s)
4 Accessory boxes
(0-2 per cable)
English
6
7
8
4
4
5
4
4
4
3
2
Colour Observation Monitor
Colour Observation Monitor
CL 66610005_005a.AI
5 Interface box
6 System cameras
7 Non system cameras (CVBS)
8 Mains power adapter
Advertisement
Table of Contents
Related Manuals for Philips VSS7370/D3T
Summary of Contents for Philips VSS7370/D3T
-
Page 1: Table Of Contents
Colour Observation System Table of contents Introduction... 3 Connection and operation facilities... 4 Installation... 5 Camera Monitor Operation of the monitor... 5 Power on/off Power save/active Talk function Action function Auto sequence on/off View modes Camera selection System reset How do the menus work?... 7 Menu control buttons The menus... -
Page 2: Connection And Operation Facilities
Mains supply: The monitor accepts a mains power voltage of 100-240V~, 50/60Hz. For the camera(s) and system accessory boxes a safe low-voltage (16-32V ) is supplied by the system monitor through the system cable. The system monitor, camera(s) and accessories are automatically switched on when the system monitor is switched on with the rear mains switch. -
Page 3: Installation
camera in max 24V 2A video audio alarm gnd Camera inputs (1 to 4) VCR in/output The VCR output contains the image and sound of the selected camera image. Aux. output Output which contains the image and sound of one of the 4 camera inputs (menu controlled). -
Page 4: Power Save/Active
1 Power on The monitor switches ON. The following text appears on the monitor screen: PHILIPS OBSERVATION SYSTEM VERSION x.x SYSTEM CHECK (x.x = version number) After approximately 30 seconds or when a button is pressed the camera image appears on the monitor screen. -
Page 5: View Modes
During a reset a beep sounds and the following text is shown on the monitor screen: PHILIPS OBSERVATION SYSTEM VERSION x.x SYSTEM RESET After approximately 30 seconds or when a button is pres- sed the message will disappear from the monitor screen. -
Page 6: Silent Function On/Off
Alarm function active yes/no (ALARM) With this function you can activate or deactivate the alarm function of the connected camera inputs. The alarm function of this camera input is activated. The alarm function of this camera input is not activated. In case an alarm box triggers an alarm, the buzzer, the alarm relay and the slave alarm information are not activated. -
Page 7: Alarm Function
The items of the install menu are discussed in the following sections. Display time and date (DISPLAY) With this option you can select if and where you want to display the time and date on the monitor screen (Lower left-hand corner, Lower right-hand corner or off). Select DISPLAY from the Install Menu;... -
Page 8: Trouble Shooting
2 Monitor in power save mode: There are two possibilities: Non-silent mode (silent function off) The monitor switches to active mode, see ‘monitor in active mode’. Silent mode (silent function on) The alarm output contact is activated (horn, siren or telephone selector) for max. -
Page 9: System Cable
For example the recording time of an E-180 tape - depending on the VCR type - is extended to one day or even one month. Philips provides several types of time-lapse VCRs. CL 66610005_006.AI... -
Page 10: Technical Specifications
Technical specifications S ystem monitor Picture tube 14", 90° deflection, 0.65mm pitch TV grade Resolution (Line pairs) 340 TVL TV standard PAL, 625 lines, 50Hz, 2:1 Mains supply voltage 100 - 240V Power consumption 70W max. (without cameras) 110W max. (with 4 cameras at 200m.) 16-32V Camera power supply System synchronisation...
