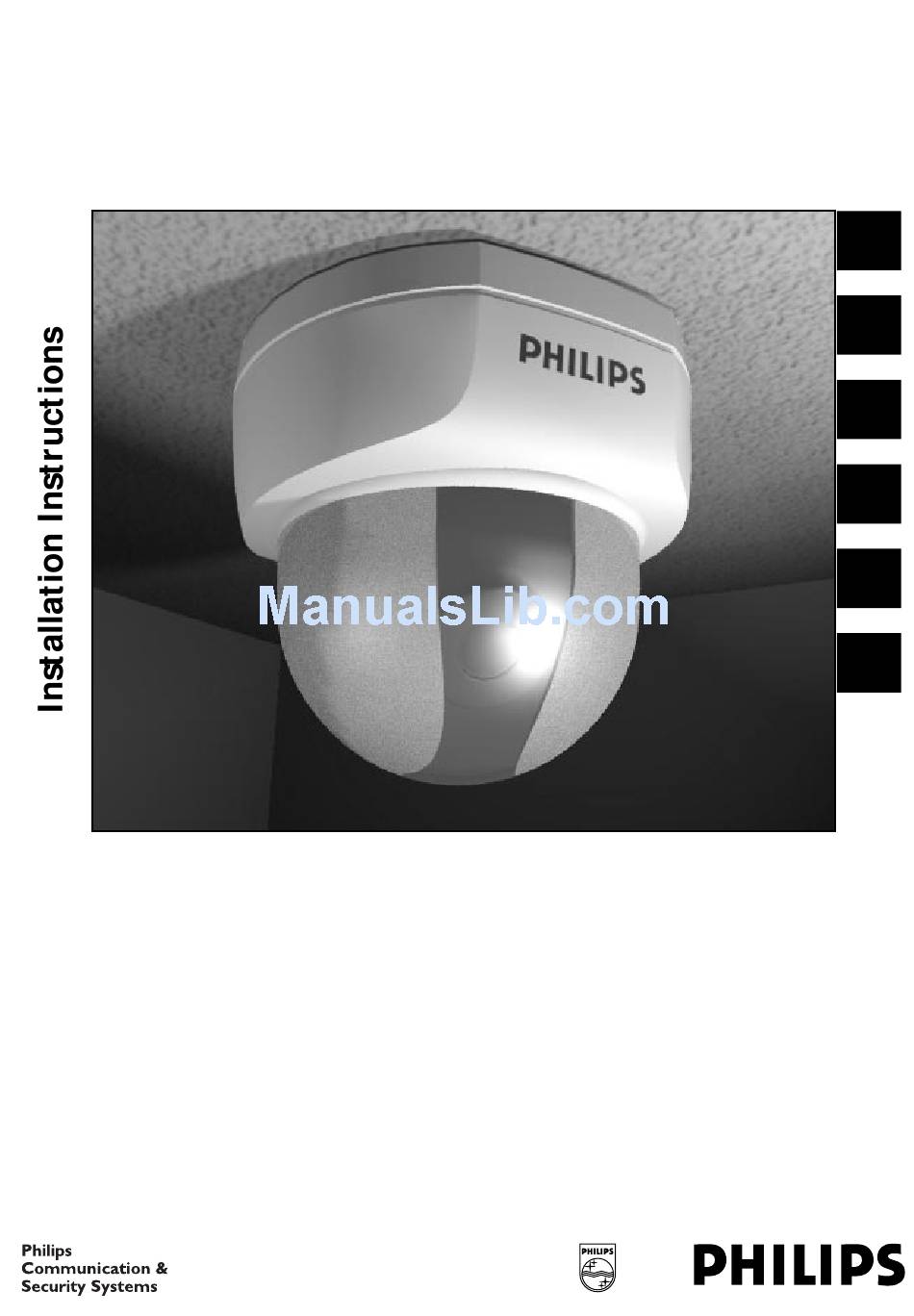

- Page 1 LTC 113x & LTC123x FlexiDome Series Fixed Dome Cameras...
- Page 2 IMPORTANT SAFEGUARDS 1. Read Instructions All the safety and operating instructions should be read before the unit is operated. 2. Retain Instructions The safety and operating instructions should be retained for future reference. 3. Heed Warnings All warnings on the unit and in the operating instructions should be adhered to.
- Page 3 9. Overloading Do not overload outlets and extension cords as this can result in a risk of fire or electric shock. 10. Object and Liquid Entry Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electrical shock.
-
Page 4: Fcc Information
14. Safety Check Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition. FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS CAUTION:TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This label may appear on the bottom of the unit due to space limitations. The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "... -
Page 6: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFEGUARDS ......1 FCC INFORMATION .......3 SAFETY PRECAUTIONS . -
Page 7: Dimension
DIMENSION 1.1 Front view of camera... 1.2 Top view of camera... 1.3 Side view of ring... 101.5/4.0 mm/inch 76.2/3.0 101/3.98 81/3.2 mm/inch 123.5/4.86 mm/inch... -
Page 8: Standard Package
STANDARD PACKAGE INCLUDED - Metal bracket x1 pcs... - Spring sheet x 2 pcs... - Screw (for flush mount) x 4 pcs... - Camera unit x 1 sets, plus 4 spare fixing screws... - Plastic ring x 1 pcs... - IFU x 1 copy... dome bubble housing cover housing base... -
Page 9: Installation For Surface ( Wall ) Mount
Recommend for Indoor Application Only INSTALLATION (for Surface ( Wall ) Mount) case a: Cables'route is above the surface like ceiling case b: Cables'route is on the surface like concrete wall 3.1 Case a: Drill three(3) holes (ø 3mm [0.19- inch]) for camera mount;... - Page 10 3.4 Take off the housing cover together with dome bubble. 3.5 Set the Dip switch. ''OFF'' position Dip Switch 1 BLC (disabled) Dip Switch 2 ES mode 3.6 Install the camera onto wanted surface (wall) by fastening 3 screws (not supplied).
-
Page 11: Installation For Flush (Ceiling) Mount
3.8 Put the "housing cover & dome bubble" onto housing base. 3.9 Rotate the bubble to make sure the lens is positioning to bubble's transparent part. INSTALLATION (For Flush (Ceiling) Mount) 4.1 Cut a hole (ø115 mm [4.53-inch]). 115/4.53 mm/inch... - Page 12 4.2 Take off the housing cover together with dome bubble; then separate housing cover& dome bubble. 4.3 Mount the "ring" onto "housing cover"; then "ring + housing cover" onto the "housing base" accordingly. Secondly install the metal bracket and fasten it by using supplied four (4) screws.
- Page 13 bracket sheet spring suggested touching portion 4.4 Connect "power cable (12Vdc)" to the terminal block; and coaxial cable (w/ female BNC) with the video extension one. Note: Use only Class 2 listed 12Vdc/ 300mA well regulated power supply. 4.5 Set the Dip switch. ''OFF'' position Dip Switch 1 BLC (disabled)
- Page 14 4.7 Adjust the lens position; and make sure the wanted view area has been covered. Then fix the position of camera module by fastening 2 screws on the sides of metal frame. 4.8 Put the dome bubble onto housing cover. 4.9 Rotate the bubble to make sure the lens is positioning to bubble's transparent part.
-
Page 15: Technical Data
TECHNICAL DATA Electrical (Monochrome Version) Pick up device Num. of pixel elements Scanning system Resolution Minimum illumination S/N ratio Auto gain Control Shutter control mode Electronic shutter Back light compensa (BLC) Gamma compensa. Sync. system Built-in lens LTC 1132/xx LTC 1133/xx Video output Power source Electrical (Color Version) - Page 16 Shutter control mode Electronic shutter Back light compensa. Gamma compensa. Sync. system Built-in lens LTC 1232/xx LTC 1233/xx Auto white balance Video output Power source Mechanical: Cable entry Mounting Construction Finish Dimension Weight Environmental: Operating Temp. Humidity Electromagnetic Compatibility: EMC Requirements CCIR/ PAL versions Immunity Emission...
