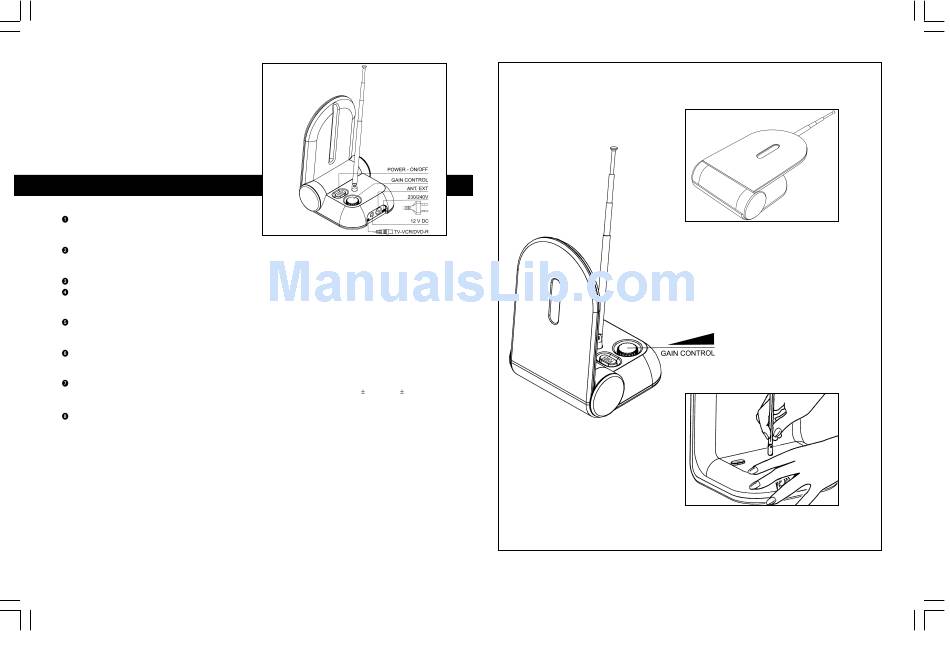

(See also the illustrations on page 15.)
Universal amplified indoor aerial
SBC TT650
GB Instructions for use
Connect the cable of the aerial to the television aerial socket.
If there is a video recorder already installed, connect the cable
of the aerial to the aerial socket of the video recorder.
If there is a cable network connection in use, disconnect this
cable from the television set or the video recorder, and connect
it to the socket on the back of the aerial (ANT. EXT).
Connect the telescopic aerial as indicated on page 15.
Connect the mains lead of the aerial to a 230-240 VAC mains
socket. Note: the aerial is also fitted with a 12 VDC supply
socket for use in caravans, campers, boats, etc.
Switch the ON/OFF button on the aerial to ON. The red
indicator lights up, which means that the aerial is now
operational.
Tune in the different television channels using the Instructions
for Use of your TV. Turn the aerial around and/or adjust the
gain until optimum reception is obtained (UHF).
If having the telescopic aerial(s) (VHF) fully extended does not
give you the best reception then try varying the lengths and
angles of the aerial.
Connect Terrestrial signals (DVB-T).
To obtain the best reception for digital terrestrial signals its is
necessary that there are less as possible obstacles
(big trees/buildings etc.) between the transmitter and the antenna.
It is recommended that you put the antenna close to a window.
Set the gain control rotary-wheel in zero position and increase
the signal gain till you have obtained the optimal reception.
1
Notes
This aerial is powered once it is connected to a 230-240 VAC
mains supply. To disconnect the aerial from the mains supply
remove the power plug from the mains socket.
The base of the aerial has four rubber pads which provide stability
and which are ideal for all surfaces.
The label containing technical data can be found at the base of
the aerial.
Technical features
• Gain (aerial + amplifier): UHF 39 3dB, VHF 39 3dB
• Power supply: 230-240 VAC 50-60 Hz
12 VDC for use in caravans, campers, boats etc.
• Power consumption: 3VA
• Impedance: 75 Ohms
• Safety regulations according to EN 60065
