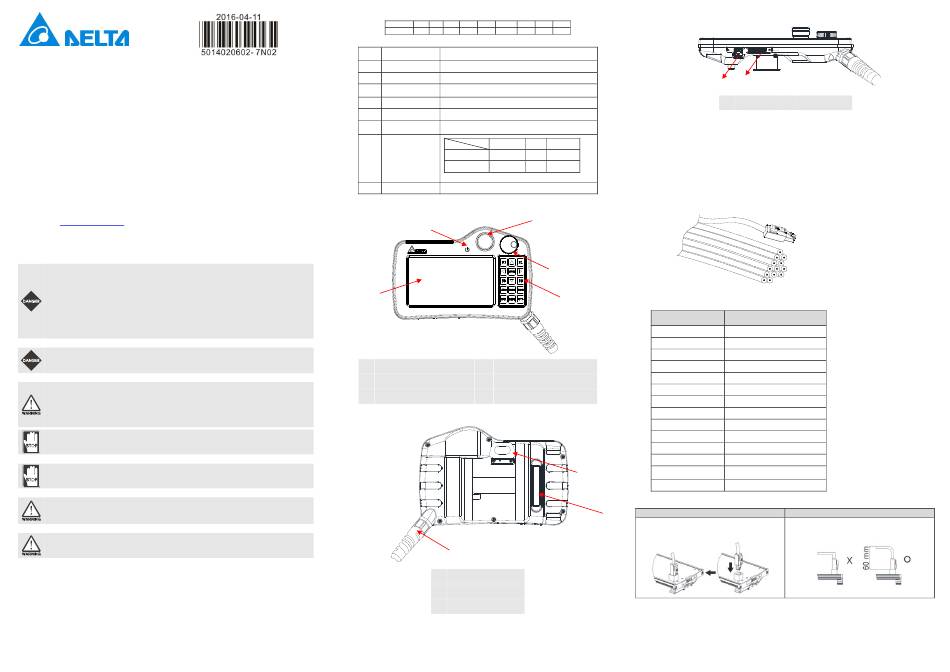

Delta HMC07-N4 Instruction Sheet

High Color‧Motion Inside‧
-N4
HMC07
User-Friendly HMI Products
No.18, Xinglong Rd., Taoyuan City
Instruction Sheet
(1) Preface
Thank you for purchasing HMC07-N4. This instruction sheet provides for some related information of HMC07-N4 H
series. Before using the product, please read through this manual carefully in order to ensure the correct use of the
product. In addition, please place this manual safely for quick reference whenever is needed. Please follow the rules
below if you have not finished reading this manual yet.
 Install the product in a clean and dry location free from corrosive and inflammable gases or liquids.
 Ensure that all wiring instructions and recommendations are followed.
 Ensure that HMI is correctly connected to the ground. The grounding method must comply with the national
electrical standard (Please refer to NFPA 70: National Electrical Code, 2005 Ed.).
 Do not modify the wiring when power is applied to HMI.
 Do not touch the power supply during operation. Otherwise, it may cause electric shock.
If you have any enquiry during operation, please contact our local distributors or Delta sales representatives.
The content of this instruction sheet may be revised without prior notice. Please consult our distributors or download the
latest version at http://www.delta.com.tw/ia.
(2) Safety Precautions
Carefully note and observe the following safety precautions during inspecting, installation, operating, maintenance and
troubleshooting.
Installation
 Comply with instruction mentioned in this instruction sheet for installation. Otherwise it may damage
the equipment.
 Do not expose the product to the environment which containing water, corrosive gas, inflammable gas.
Or it may result in electric shock, fire, or explosion.
 Do not install the product in a location where temperatures will exceed specification for the HMI.
Failure to observe this caution may result in abnormal operation or damage to the product. Please
refer to the specifications that listed on the second page.
 This product has the approval of KCC Class A, which is for commercial or industrial use only. Home
use product is classified as KCC Class B.
 Do not place this product where that may result in personal injury, equipment damage, or cause
emergency stop.
Wiring
 Connect the ground terminals to class-3 ground system (Ground resistance should not exceed 100 Ω).
Improper grounding may result in communication error, electric shock or fire.
 Do not connect to other wire rods to extend the cable length. Or it may cause poor communication or
malfunction.
Operation
 When designing HMI programs, if the interface is not programmed well, it may cause the abnormal
operation. Therefore, in order to prevent personal injury or equipment damage, make sure that the
communication error caused by the interface, controller or equipment would not lead to the
malfunction of the product.
 Please backup the screen data and HMI programs in case the data is lost.
 When not in use, please place the HMI at a flat surface or use the hook on the back to hang it properly
to avoid risks of falling or crash.
 Do not modify the wiring during operation. Otherwise it may result in electric shock or personal injury.
 Never use a sharp object to touch or hit the screen as doing this may damage the screen and cause
malfunction of HMI.
Maintenance and Inspection
 Do not touch any internal parts of the HMI as this may damage the product or cause electric shock.
 Wait at least 10 minutes after the power is removed before touching any HMI terminals or performing
any wiring and/or inspection. Or the residual voltage may cause electric shock.
Wiring Method
 The voltage applied shall not exceed specification for the HMI. Failure to observe this caution may
result in electric shock or fire.
 If any cable is forced removed, please make sure to check the connection again before resuming the
operation.
Communication Wiring
 Comply with communication wiring specification for wiring.
 To avoid noise and interference, the communication cable, all power cables, and motor power cable
should be placed in separate conduits.
(3) Model Explanation
HMC
(1) Product Name
(2) LCM Size
(3) Type
Display
(4)
Specification
33068, Taiwan
(5) Version number
(6) Series
External control
(7)
interface (Bus)
(8) External Device
(9) Cable Length
(4) Parts Names
HMC07-N411H5CX (Front View)
C
A LED Power Indicator
C Touch Screen / Display
E Handwheel
HMC07-N411H5CX (Rear View)
07 - N 4 11 H 5 C 5
(1) (2) (3) (4) (5) (6) (7) (8) (9)
HMC: HMI with Controller
07 : 7.0" TFT
N: General type
4: WVGA (800x480)
10, 11
H: Hand-held
5: DMCNET
Device
Handwheel SD SD+USB
Code
●
2
● ●
C
5: 5 m A: 10 m
D
A
E
B
B Function Keys
D Emergency Stop
B
A 3-Position Operation Switch
B Cable
C Hook
HMC07-N411H5CX (Bottom View)
B
A
A USB Slave
(5) Ambient Conditions of Installation and Storage
The product should be kept in the shipping carton before installation. In order to retain the warranty coverage, the HMI
should be stored properly when it is not used for an extended period of time. Some storage suggestions are:
 Store in a clean and dry location
 Store within an ambient temperature range of -10°C to +60°C (-14°F to 140°F).
 Store within a relative humidity range of 10% to 90% and in a non-condensing environment.
 Do not store the HMI in a place subjected to corrosive gases and liquids.
 Correctly pack and place the product on a solid and durable surface.
 The ambient conditions of installation should NOT include: over-heat device; water drop, vapor, dust and oily
dust; corrosive and inflammable gas and liquid; airborne dust and metal particles; interference of
electromagnetic noise; and should have solid foundation and no vibration.
(6) Wiring Method
Wire of HMC07-N4
Cable Definition
Color of Skinned Wire
White / Purple Emergency Stop 1 – NC(B)
White / Green Emergency Stop 1 – NC(B)
Blue Emergency Stop 2 – NC(B)
White / Blue Emergency Stop 2 – NC(B)
Yellow RS-485 (+)
White / Yellow RS-485 (-)
White / Black Grounding for Communication
Brown Grounding for Communication
White / Brown Grounding for Communication
Red DC 24V
Black 0V
White FGND (Power ground)
C White & Red N/A
RJ-45 (Blue) DMCNET
Note
A
Correctly connect to the remote module or ASDA series
servo drive according to the recommended direction of
RJ-45.
B SD Card
Function
Note
Leave at least 60 mm for connection. Do not over-bend
the cable.
