T o p o

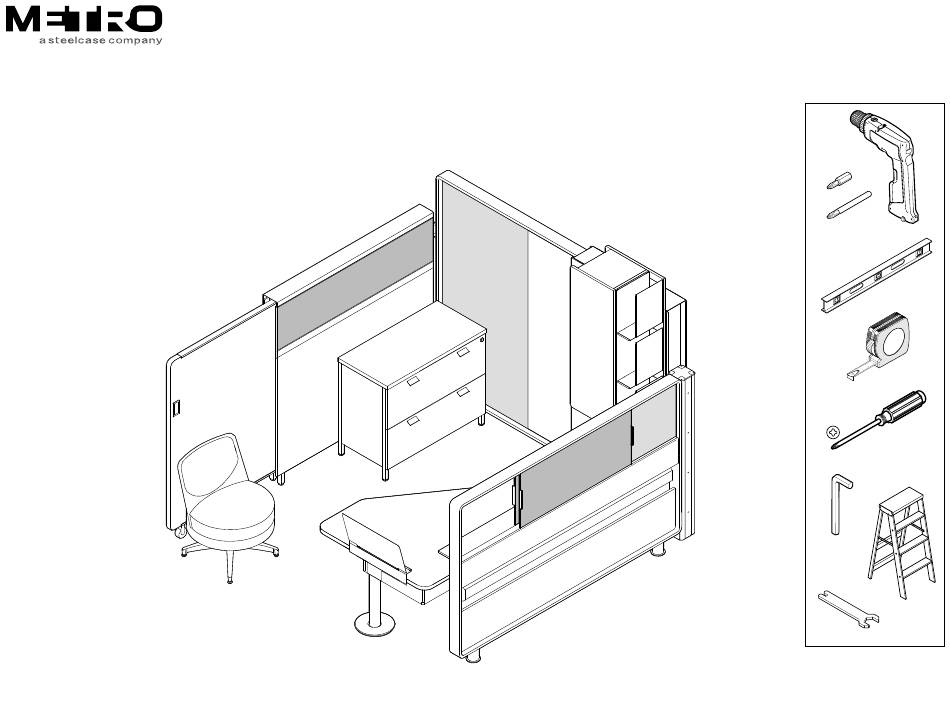

O p e n P la n A s s e m b ly D ir e c t io n s
™
®
Please feel free to contact
Metro Customer Service with
any questions or concerns:
866.645.6953
www.metrofurniture.com
B it E xtension
Combo Wrench
Page 1 of 24
© 2007 Coalesse - Metro, Grand R apids, MI, USA.
939503312 R ev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Metro Topo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcase Metro Topo

Summary of Contents for Steelcase Metro Topo

  • Page 1 T o p o O p e n P la n A s s e m b ly D ir e c t io n s ™ ® Please feel free to contact Metro Customer Service with any questions or concerns: 866.645.6953 www.metrofurniture.com B it E xtension...
  • Page 2 ® R efer to the drawings on page 2 (major panel components) and page 3 (various hardware and accessories) to help identify the parts as you proceed with the installation. "A" "B " Optional S liding Marker Desk Loop (page 6) Loop-to-post Connector B aseboard Utility Connector Post...
  • Page 3 ® Various Hardware and Accessories Loop B racket R eturn Wall Top Cap R eturn Wall Panel Flex-fit Wall Panel R eturn Tack Panel Desk-Loop S ill Wire Management Tray (page 9) (page 10) (page 11) (page 19) (page 11) (page 13) (page 19 ) Wire Manager...
  • Page 4 ® Flex-fit wall Flex-fit wall Pocket segment Pocket segment XY Configurations When specifying Topo baseboard utilities it is important to correctly identify an X configuration vs. a Y configuration. Making the correct identification requires 3 things: Modular connector for desktop utility 1.
  • Page 5 ® Note: B efore beginning installation of flex-fit wall, lay down, position, and connect baseboard utilities (refer to instruction No. 42651). Connector Post to Flex-fit Wall Frame (4) plastic christmas tree clips 1. R emove top cap and wall panels from flex-fit wall frame. (4) 2 x 2 square washers 2.
  • Page 6 ® Flex-fit Wall Frame to Desk Loop 1. Prepare loop-to-post connectors for assembly. 2. Orient fastener side of connectors facing out, away from corner. 3. Slide loop-to-post connectors into vertical tracks on desk loop. BE CAREFUL NOT TO SCRATCH LOOP EXTRUSION SURFACE. 4.

  • Page 7: End View

    ® 7. Slide flex-fit-wall loop extrusions (top and bottom) into frame. 8. Install tolerence extrusion in center track of bottom loop. HANDLE PARTS CAREFULLY - THEY MAY BE FRAGILE DURING INSTALLATION. END VIEW Flex-fit-wall loops Top Loop showing (3) preinstalled inner extrusions Tolerence extrusion B ottom Loop...
  • Page 8 ® 9. Slide fabric scrim into center loop track and fit bottom edge into the tolerence extrusion. Trim excess cord on trim. 10. Insert corner casting into vertical loop at top and bottom, then tighten (2) set screws at each corner. 11.
  • Page 9 ® 12. Determine overall dimension, then position loop in final location. (4) 1/4-20 x 1-1/2" thumb screws, plastic head 13. Slide loop bracket into loop tracks (2) places, top and bottom, then tighten thumb screws. 14. Install a connector post with loop-to-post connectors onto vertical loop (refer to page 4).
  • Page 10 ® Install the Return Wall 1. R emove top cap as shown. 2. R emove tack panel and return wall panel from return wall frame. Remove (2) screws (2) screws each from each end end, 1/4-20 x 3/4 3. Position base track under return wall frame. of V-Track flat head socket 4.
  • Page 11 ® Install Wall Panels and Tack Panels (6) bolts, 1/4-20 x 3/4" 1. Hang main (lower) wall panels on button head phillips return wall frame. 2. Fasten tack panels to return wall frame as shown. Hang panel brackets on fasteners inside frame then tighten fasteners at the top to secure.
  • Page 12 ® 3. R einstall V-track onto return wall. 4. Extend roller panel fully, then tighten (2) bolts at the front end of V-track. V-Track 5. Move roller panel to rear of return wall and tighten (2) bolts at the rear end of V-track. Top Cap Note: Ensure that the V-track is in fully engaged with the upper wheel of the...
  • Page 13 ® Desk Loop Sill Assembly 1. R emove backer from double-sided tape on sill assembly, then attach onto desk-loop Fit sill extrusion fence track. Fence into fence track 2. Install table source PVD module and wire manager per Wiremold installation instruction No.
  • Page 14 ® Desk-Loop Scrim and Sliding Panel E ND VIE W 1. Loosen (4) set screws and remove top horizontal loop. 2. R emove the front corner casting. 3. Slide scrim into center track, then locate at back of loop. Install Finish Scrim 4.
  • Page 15 ® 6. Insert (2 or 3, depending on specification) panel rollers into forward track. 7. Install sliding panel as shown. E ND VIE W S nap panel onto rollers S lide rollers into gap in track (3) preinstalled inner extrusions Place bottom edge of panel in guide slot (2) or (3) R ollers...
  • Page 16 ® Desktop Assembly NOTE: TETHER BRACKETS AND HYPER-GLIDE ARE PACKED WITH THE ADJUSTABLE HEIGHT COLUMN. (2) BRACKETS ARE REQUIRED FOR 6' AND 7' LOOPS, (3) BRACKETS FOR 8' LOOP. 1. Loosely preassemble the tether table brackets to the fence in the approximate locations shown.
  • Page 17 ® 3. Attach telescoping hyper-glide to underside of desktop. (4) wood screws, 4. Install desktop onto tether brackets #12 x 1" and adjustable column leg. pan head #3 5. Position desktop relative to desk-loop in desired location, then tighten tether Underside of desktop brackets to fence.

  • Page 18: Pedestal Installation

    ® Pedestal Installation Note: It is important to determine if your pedestal is used in a right hand (shown in this direction) or left hand application. This will dictate where the brackets are positioned. 1. Attach (1) upper bracket as shown. 2.
  • Page 19 ® 3. Attach pedestal connection bracket to bottom of flex-fit wall frame. 4. Loosely preassemble pedestal connection bracket to forward track of desk loop. 5. Fasten loop to pedestal brackets together. Hint: Preassemble T-nut and bolt loosely to ease alignment to the fence channel. Note: Baseboard Utility cover should be installed before the flex-fit wall panel.
  • Page 20 ® 10. Move pedestal into position. 11. Attach pedestal to connection bracket on flex-fit wall frame. 12. Tighten bottom loop-to-pedestal bracket in final location in forward track. 13. Secure top loop-to-pedestal bracket SIDE VIEW showing T-nut and to underside of fence. bolt loosely preassembled Hint: Preassemble T-nut and bolt loosely to ease alignment to the fence channel.

  • Page 21: Rear View

    ® Overhead S torage Tower 1. Carefully lift storage tower into position. 2. Attach tower to flex-fit wall. A. Engage tabs on tower bracket with slots on flex-fit wall frame. B . Slide tower towards connector post REAR VIEW until tabs are securely locked down. 3.
  • Page 22 ® Finish Top Cap 1. Position top cap onto flex-fit frame. 2. Slide tabs into slots at loop end of flex-fit frame to lock. 3. Secure with (1) screw at connector post end. REAR VIEW (1) screw, 1/4-20 x 3/4" Page 22 of 24 939503312 R ev.
  • Page 23 ® Optional - Lower Modesty Panel 1. Mount lower modesty brackets under desktop. Lower Modesty Brackets 2. Attach fold scrim to magnets on lower modesty brackets. Pull taught to relieve wrinkles. (8) wood screws per bracket #10 x 5/8" Magnets Fold Scrim B OTTOM VIE W of Desktop S hown without Desk-loop...
  • Page 24 ® Optional - Upper Modesty Panel 1. Align mounting bracket to pilot holes in underside of worksurface. 2. Attach upper modesty panel to underside of desktop. Upper Modesty Panel (8) wood screws #10 x 5/8" Page 24 of 24 939503312 R ev. A...
