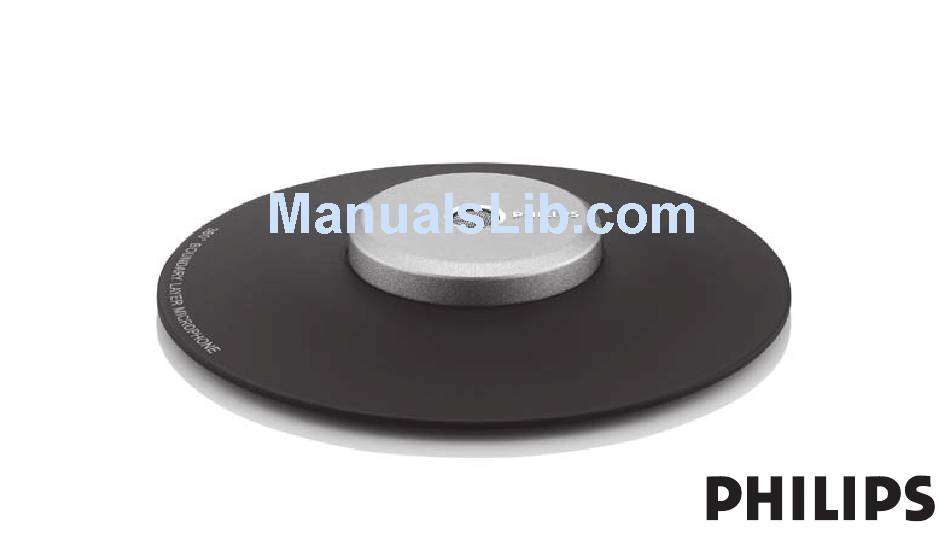

- Page 1 Conference Microphone LFH 9172 www.philips.com/dictation...
-
Page 3: Connections Overview
Connections overview 3.5 mm (⅛ ") audio plug 3.5 mm (⅛ ") to 5-pin DIN adaptor cable 3.5 mm to 2.5 mm ( Übersicht der Anschlüsse 3,5 mm-Klinkenstecker 3,5 mm auf 5-pin DIN-Adapterkabel 3,5 mm auf 2,5 mm-Adpaterkabel Présentation des connexions Prise audio 3,5 mm Câble d‘adaption 3,5 mm à... - Page 4 Position the conference microphone Positionieren des Konferenzmikrofons Mettez en place le micro- phone de conférence Posicione el micrófono de conferencia Positioneer de vergadermicrofoon Posizionare il microfono da conferenza 2m / 6.5 ft 2m / 6.5 ft...
- Page 5 Expand the recording range by cascading up to three microphones per recording channel Erweitern des Aufnahmebereiches durch Zusammenschließen von bis zu drei Mikrofonen pro Aufnahmekanal Etendez le périmètre d’enregistrement en connectant en série jusqu’à 3 microphones Expanda el área de grabado conectando hasta 3 micrófonos pro cada canal de grabación Uitbreiden van het opnamebereik d.m.v.
-
Page 6: Specifications
Technical data Specifications • Design: Boundary layer microphone • Type: Electret condenser microphone • Output impedance: approx. 2.2 kOhm @ 1 kHz • Sensitivity: -38 dBV • Frequency response: 30 Hz – 18 kHz • Phantom supply voltage: 1,5 to 5 V/ 0,5mA Connectivity •... -
Page 7: Declaration Of Conformity
Trade Name: Philips Conference Microphone 9172 Responsible Party: Philips Speech Processing, 64 Perimeter Center East, Atlanta, GA 30346, USA, Tel. 888-260-6261 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. - Page 8 Discover the comprehensive range of high-end dictation products from Philips www.philips.com/dictation Specifications are subject to change without notice. Trademarks are the property of Royal Philips Electronics or their respective owners. © 2008 Royal Philips Electronics. All rights reserved. Document version 1.0, 28/01/2008.
