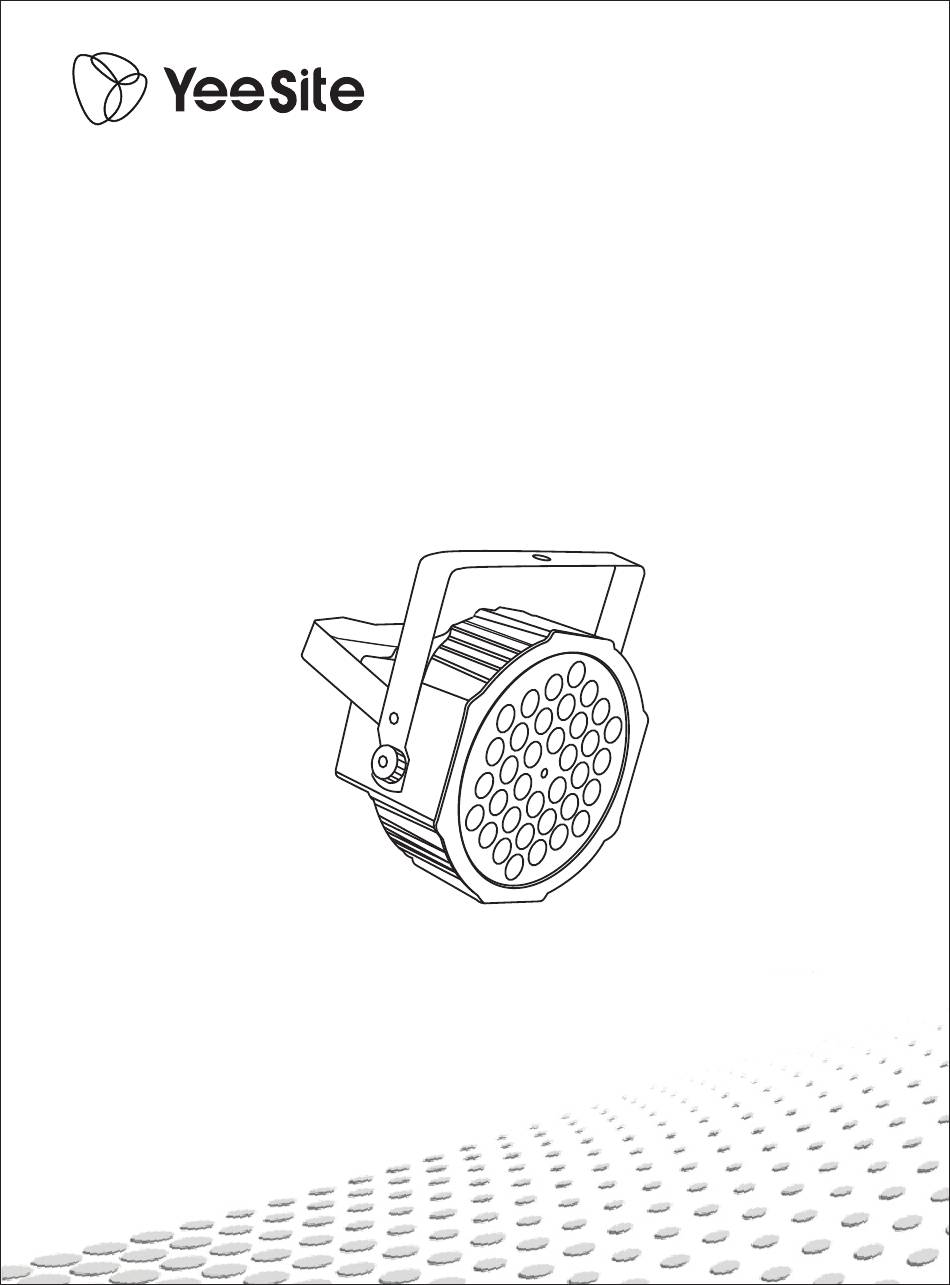

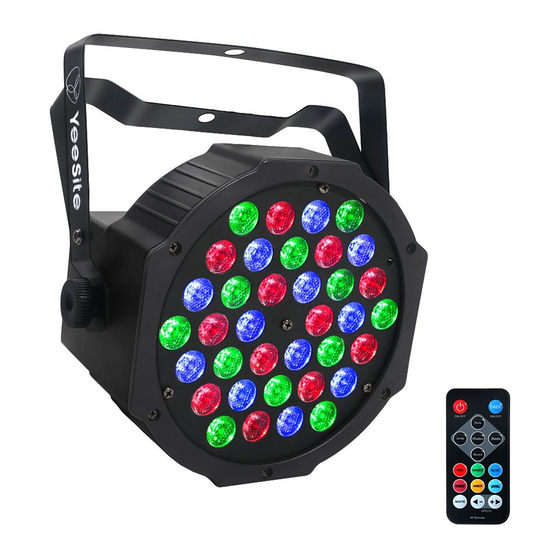

- Page 1 36LEDs Par Light User Manual...
-
Page 2: Before You Begin
Unpacking Instructions Thank you for purchasing the 36LEDs Par Light by YeeSite. Every 36LEDs Par Light has been thoroughly tested and has been shipped in perfect operating condition. Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 3: Safety Notes
YeeSite reserves the right to revise the content of this document without any obligation to notify any person or company of such revision,however, Yeesite has no obligation to make, and does not commit to make, any such revisions. Safety Notes Please read the following Safety Notes carefully before working with the product. - Page 4 The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the product to rain or moisture. Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces. Be sure that no ventilation slots on the product’s housing are blocked.
- Page 5 2. INTRODUCTION Product Overview Power POWER Display Microphone DMX In/Out Menu Button MENU UP DOWN ENTER Lenses 7.1in 180mm IR Sensor...
- Page 6 3. SETUP AC Power The 36LEDs Par Light has an auto-ranging power supply and it can work with an input voltage range of 110 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s...
-
Page 7: Mounting Diagram
Make sure that the structure onto which you are mounting the product can support the product’s weight. See the Technical Specifications for weight information. When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging point, whether an elevated platform or a truss. -
Page 8: Control Panel Operation
4. OPERATION Control Panel Operation To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control panel. Button Function <MENU> Press to find an operation mode or to back out of the current menu option <UP>... -
Page 9: Dmx Linking
The 36LEDs Par Light uses 4 DMX channels or 7 DMX channels and defines the highest configurable address to 511 To select the starting address, do the following: 1.Press <MENU>... -
Page 10: Dmx Channel Assignments And Values
DMX string connected to a DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller. Automatic Programs To run the 36LEDs Par Light in automatic mode, follow the instructions below:... -
Page 11: Sound-Active Mode
1.Press <MENU> repeatedly until DENO shows on the display. 2.Press <ENTER>. Sound-Active Mode To run the 36LEDs Par Light in sound-active mode, do the following: 1.Press <MENU> repeatedly until SOUD shows on the display. 2.Press <ENTER>. Custom Color Mixing To custom mix a static color, follow the instructions below: 1.Press <MENU>... -
Page 12: Strobe Mode
Master/Slave Mode (wired) The Master/Slave mode allows a single 36LEDs Par Light product (the “master”) to control the actions of one or more 36LEDs Par Light products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in any Stand-Alone... - Page 13 mode. Once set and connected, the slave products will operate in unison with the master product. Configure the products as indicated below. Slave products: 1.Press <MENU> repeatedly until SLAV shows on the display. 2.Press <ENTER> to accept. 3.Connect the DMX input of the first slave product to the DMX output of the master product.
-
Page 14: Remote Control
Remote Control Power ON/OFF DMX mode Auto mode Fade 1, Fade 2 Hopping mode Strobe mode Sound-active mode Green color Red color Blue color Roseo color Cyan color ROSEO AMBER Amber color White color Speed - Speed + Icon Button Function Display on Panel Function Description Press this button to turn on or ON/OFF... -
Page 15: Product Maintenance
5. MAINTENANCE Product Maintenance Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.
