Summary of Contents for Eddyfi Technologies INUKTUN VERSATRAX 100

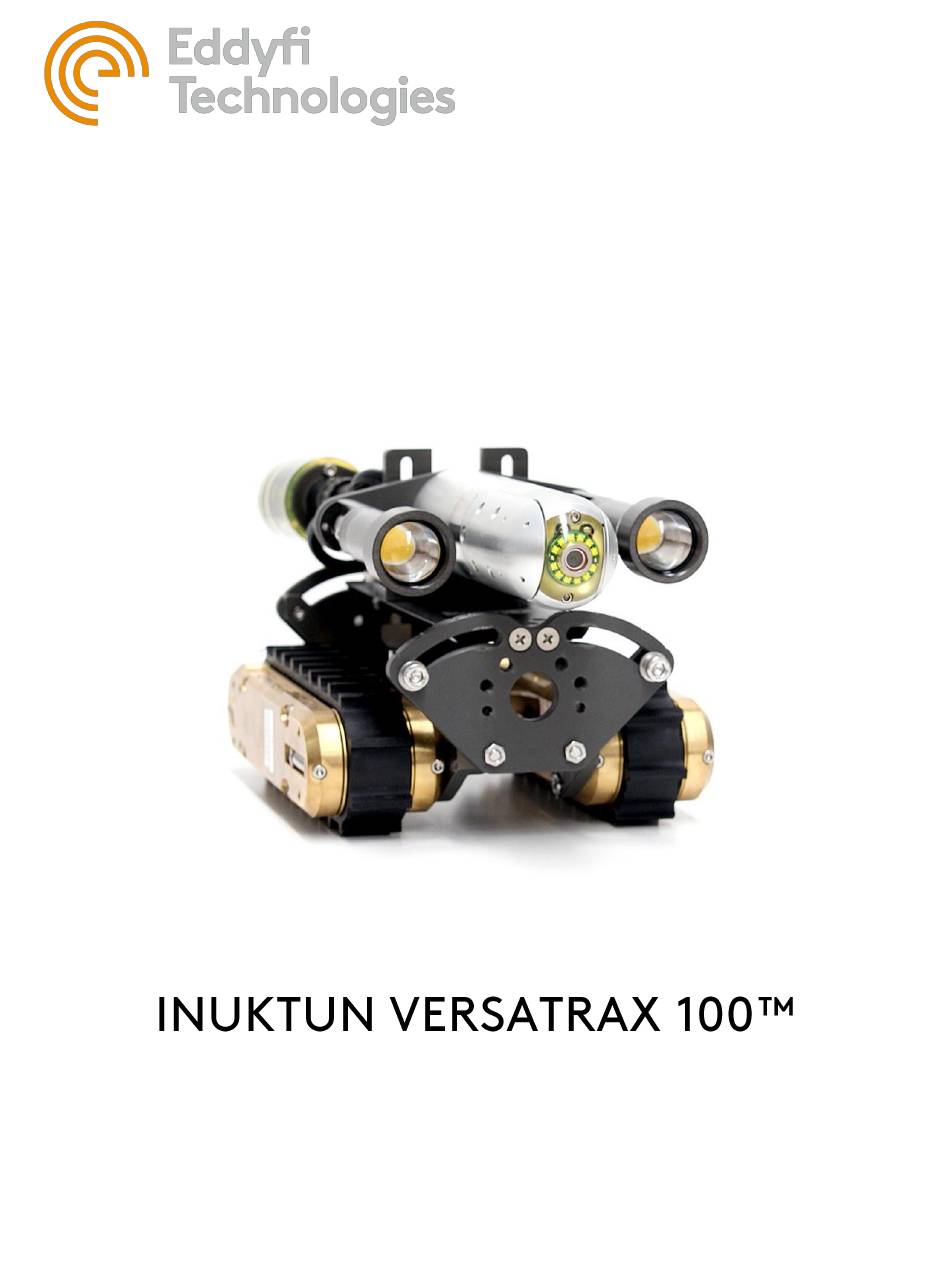

- Page 1 2569 Kenworth Road, Suite C Nanaimo, BC, V9T 3M4 CANADA +1.250.729.8080 info@eddyfitechnologies.com www.eddyfitechnologies.com...
-
Page 2: Table Of Contents
Versatrax 100™ Table of Contents About This Manual ............................4 System Description ............................4 Description of Equipment & Intended Use ....................4 Specifications ............................5 Certification .............................. 6 Safety ................................6 System Setup .............................. 10 Personnel Requirements ........................10 Working And Storage Environment......................10 System Power ............................ - Page 3 Versatrax 100™ Extended Parallel With Spectrum 90™ ....................26 Extended Parallel Chassis ......................26 Camera & Light Installation ......................27 Extended Traction Weight Kit (Optional) ..................28 Extended Magnet Kit (Optional) ..................... 29 Inline Configuration ..........................30 Track Installation ..........................30 4-Inch Configuration ........................
-
Page 4: About This Manual
Description of Equipment & Intended Use The Inuktun Versatrax 100™ (VT100) system is a 4000 series Inuktun Microtrac™ based vehicle used for navigating pipes of 4 to 12 inch (100 mm to 300 mm) internal diameter with the camera centered. The track mechanism is further adjustable to very large diameters or flat surfaces. -
Page 5: Specifications
Versatrax 100™ Specifications Pipe Size Range (Inline 4, 5, 6-inch pipe. [100, 125, 150mm] pipe. Camera Chassis) centered with interchangeable skids. Spectrum 45 camera only. Minimum Bend Radius (Inline) 7D radius in 4-inch pipe [7D radius in 200mm pipe] Radius is measured from the pipe centerline. Bend radii will be larger for the extended parallel chassis. -
Page 6: Certification
Versatrax 100™ Optional Operational Kits Magnet Kit (standard & extended) (Parallel Chassis) Weight Kit (Adds 8 lb (3.6 kg) for traction, standard length) Camera Extension Kit (3069627). Five spacers up to 6 inches (52 mm). Auxiliary Lights (Parallel 801 Micro-controlled LEDs Chassis) Power Supply (Interface Box) 100-240VAC 50/60Hz, 5A... - Page 7 Versatrax 100™ WARNING: Magnetic Pinch Hazard – The magnetic chassis is fitted with rare earth magnets. These magnets are very strong and create an immanent pinch hazard. Use caution when handling the magnets or vehicle near steel objects and tools, they may snap together unexpectedly.
- Page 8 Versatrax 100™ WARNING: Intense Optical Radiation - The VT100™ camera lights and 801 auxiliary lights are extremely bright. Never look directly at the lights. Use a welding filter (shade #8 or higher) if inspecting the LEDs. • CAUTION: Class II Laser: The optional Spectrum 90™ may be equipped with laser lines.
- Page 9 Versatrax 100™ WARNING: Trip Hazard - Never stand on the tether. A snap load to the tether may pull it out from underneath you and cause you to fall. Standing on the tether may also damage its internal conductors, cause unnecessary wear, and decrease its life.
-
Page 10: System Setup
Versatrax 100™ System Setup Personnel Requirements Basic deployment of the VT100™ system may be performed by one person. Operations at more complex worksites may require two people, especially when the console location is removed from the point of deployment. • Console Operator: This person is responsible for driving the vehicle, watching the pipe and making comments about the location and pipe condition. -
Page 11: System Power
Versatrax 100™ System Power Power Requirements The VT100™ is operated through a 19-inch rackmount interface box. The interface box provides power to the tether and vehicle. Power Input: 100-240 VAC, 5 Amps, 50-60 Hz. Generators / Inverters If powering the system from a generator or inverter, refer to that unit’s operating manual for recommendations on continuous and peak load ratings. -
Page 12: Icon™ Portable Controller Connection
Versatrax 100™ FIGURE 1: POWER SUPPLY & INTERFACE BOX ICON™ Portable Controller Connection The ICON™ Portable Controller supplies power to the tether and vehicle. It provides a communication interface to the vehicle. It also provides video reception and distribution. Refer to the Controller Setup section of the ICON Portable Controller User Manual for more information. Vehicle &... -
Page 13: Portable Reel Setup
Versatrax 100™ FIGURE 2: TETHER CONNECTION TO THE VEHICLE Portable Reel Setup If your system includes a portable reel, follow these steps to operate: 1. Remove the shipping cap from the front of the case and insert the crank handle. 2. -
Page 14: Mini-Reel Setup
Versatrax 100™ 6. Feed the tether through the level wind as follows: a. Open the access slot by lifting the two exposed screw heads to raise the tether support shafts. b. Pull up on both sides of the top wheel’s brass axle and slide the tether beneath it. c. -
Page 15: Microtrac™ Voltages
Versatrax 100™ Microtrac™ Voltages The interface box provides tether power outputs for both 48V and 70V equipment. The VT100™ crawler is intended for 70V operation. This vehicle should only be fitted with Microtracs™ marked for 70V DC supply. 48V rated tracks will be damaged if connected to this system. Warning: Track Voltage Input –... -
Page 16: Vehicle Configuration
Versatrax 100™ Vehicle Configuration Parallel Configuration Track Angle Adjustment The parallel chassis’ track angle may be continually adjusted from flat to 8-inch [200mm] pipe. To change the track angle, loosen the four M6 socket cap screws located in the end plate slots, move the track to its new angle, and retighten the screw. -
Page 17: Camera Height Adjustment
Versatrax 100™ Camera Height Adjustment Camera height is adjusted by loosening the four M5 socket cap screws in the camera slider, moving the camera to the required height and retightening the screws. In 12” (300 mm) pipe, the upper adjustment screws are removed, and lower screws are placed at the top of the slot as illustrated below. -
Page 18: Camera Height Extensions (Optional)
Versatrax 100™ Camera Height Extensions (Optional) An optional height extension kit may be added to the parallel chassis to raise the camera an additional six inches. Five brackets are included with the kit. Used in combination with the above height adjustment, the kit allows for continuous camera adjustment between 12 and 24-inch (300-600 mm) pipe. -
Page 19: Camera & Light Installation
Versatrax 100™ Camera & Light Installation Spectrum 45 The front Spectrum 45™ (SP45) camera is mounted to the vehicle using M3x12mm flat head screws. There is a mark at the back of the camera which indicates the top for correct orientation. At the back of the camera you will find a ring of six screws around the connector holding on the back-end cap. - Page 20 Versatrax 100™ Spectrum 90™ A Spectrum 90™ (SP90) can be installed as an upgrade from the standard SP45™ for this vehicle. Note: this requires a different harness as whip lengths will change. Note: Installation of an SP90 may require the use of different fasteners when the system is equipped with a magnet tray.
-
Page 21: Track Removal/ Installation
Versatrax 100™ Track Removal/ Installation The Microtracs™ are removed or installed onto the vehicle using four M5x8mm socket cap screws. The track whip connector must be fully mated (finger tight only), and the whip secured on place on the chassis using the provided P-clips. -
Page 22: Traction Weight Kit (Optional)
Versatrax 100™ Traction Weight Kit (Optional) An optional weight kit may be added to the parallel vehicle to increase traction. The weight kit adds 8.7 lb. [3.9 kg] to the parallel vehicle. Standard weights are powder painted steel but are also available in brass or stainless steel. -
Page 23: Magnet Kit (Optional)
Versatrax 100™ Magnet Kit (Optional) A magnetic attachment can be added to the parallel chassis for better traction in steel pipes and on steel surfaces. The following subsections give detail on installation and adjustment of the magnet kit. Note: Systems equipped with an SP90™ require different fasteners for mounting the magnet tray. These systems are supplied with M6x30mm, M6x25mm, and M6x20mm socket head cap screws. - Page 24 Versatrax 100™ Magnet Kit Installation To install the magnet kit, start with the vehicle in the flat configuration with the front camera whip disconnected, then, remove the harness by unscrewing the two M6 socket head cap screws using a 5mm Allen wrench.
-
Page 25: Source Location: C:epdmislengproductsdt-Versatrax100Mkiimanualsumdt013103.Docm
Versatrax 100™ Magnet Adjustment Note: The magnet tray is held by four M6 screws. Two screws are pulling up, and two screws are pushing down in an “X” arrangement. The screws that are pushing down (lock screws) are threaded through the chassis backplane. -
Page 26: Extended Parallel With Spectrum 90
Versatrax 100™ Extended Parallel With Spectrum 90™ Extended Parallel Chassis The extended parallel chassis uses extended Microtracs to accommodate additional weights and magnets, and to better accommodate the SP90™ camera. Standard weight and magnet kits are incompatible with the extended chassis. With the SP90 camera installed, the minimum pipe size is 200mm [8”] SCH-40. -
Page 27: Camera & Light Installation
Versatrax 100™ FIGURE 19: PARALLEL EXTENDED PIPE FIT Camera & Light Installation The front SP90™ camera is mounted to the vehicle using M6x16mm socket cap screws. The camera is oriented with the Schrader valve facing up. Additional lighting is provided by the two 801 Lights, installed using M3x8mm socket cap screws. -
Page 28: Extended Traction Weight Kit (Optional)
Versatrax 100™ Extended Traction Weight Kit (Optional) An optional extended weight kit may be added to the extended parallel vehicle to increase traction. The weight kit adds 10 lb. (4.5 kg) to the parallel vehicle. Standard weights are powder painted steel but are also available in brass or stainless steel. -
Page 29: Extended Magnet Kit (Optional)
Versatrax 100™ Extended Magnet Kit (Optional) A 4-Cup magnetic attachment can be added to the extended parallel chassis for better traction in steel pipes and on steel surfaces. Installation and adjustment of the magnet kit follows the same procedure as the standard-length magnet kit described above. -
Page 30: Inline Configuration
Versatrax 100™ Inline Configuration Track Installation The inline VT100™ vehicle uses two sets of side plates and two sets of “X” hinges to connect the tracks. To begin assembly of the inline configuration, gather together the wiring harness, side plates, tracks, hinges, and screws. -
Page 31: 4-Inch Configuration
Versatrax 100™ 4-Inch Configuration 1. The 4-Inch in-line configuration uses the spring-loaded traction units (illustrated above) without spacers. 2. Install the 4-Inch skids around the camera (illustrated below). Use Loctite 243 (blue) with all fasteners. FIGURE 24: IN-LINE 4-INCH CONFIGURATION Document: UMDT013103.docm Revision: A10 Created by: KJB... -
Page 32: 5-Inch Configuration
Versatrax 100™ 5-inch Configuration 1. The 5-Inch in-line configuration uses the spring-loaded traction units (illustrated above) with one spacer. 2. Install the 5-Inch skids around the camera (illustrated below). Use Loctite 243 (blue) with all fasteners. FIGURE 25: IN-LINE 5-INCH CONFIGURATION Document: UMDT013103.docm Revision: A10 Created by: KJB... -
Page 33: 6-Inch Configuration
Versatrax 100™ 6-Inch Configuration 1. The 6-Inch in-line configuration uses the spring-loaded traction units (illustrated above) with two spacers. 2. Install the 6-Inch skids around the camera (illustrated below). Use Loctite 243 (blue) with all fasteners. FIGURE 26: IN-LINE 6-INCH CONFIGURATION Document: UMDT013103.docm Revision: A10 Created by: KJB... -
Page 34: Rear Camera (Optional)
Versatrax 100™ Rear Camera (Optional) An optional rear camera may be installed on the in-line vehicle. No camera: Install the blank plate as shown below. The wired camera connector will be stowed in the counter-bored hole under the lid. Rear camera: Remove the blank plate. Plug the camera connector wiring into the rear camera module. Screw the module in place, ensuring the O-ring is clean and fully seated in its groove. -
Page 35: Crystal Cam™ Front Camera (Optional)
Versatrax 100™ Crystal Cam™ front camera (optional) The inline vehicle can be configured with a Crystal Cam™ as its front camera. This requires a non- standard harness. FIGURE 28: OPTIONAL CRYSTAL CAM FRONT CAMERA Document: UMDT013103.docm Revision: A10 Created by: KJB Date: 26 Sep 2019 3070984-A10 Source Location: C:\ePDM\ISLEng\products\dt-versatrax100mkii\manuals\UMDT013103.docm... -
Page 36: Maintenance
Versatrax 100™ Maintenance Tether Handling The tether should be considered the most important part of the vehicle system. It feeds power and control signals to the vehicle and returns video and sensor data. If the tether becomes damaged from improper use, poor handling or an accident, the vehicle may become crippled or inoperable. This may result in repairs, down time, and loss of production. -
Page 37: Connector Care
Versatrax 100™ Connector Care Proper connector care is important for system reliability. Preventable connector problems can represent a significant cost in downtime and re-termination which could easily have been avoided. A good tether isn’t much use without a connector. We recommend the following steps to help prevent damage to connectors. 1. -
Page 38: Fuse Replacement
Caution: A blown fuse is an indication of possible component failure. If, after restoring power, the system does not operate normally or if the circuit blows a second time, please contact Eddyfi Technologies technical support. AC Line Input... -
Page 39: Parts And Repairs
2569 Kenworth Road, Suite C Nanaimo, BC, V9T 3M4 CANADA TF 1.877.468.5886 T +1.250.729.8080 info@eddyfi.com www.eddyfitechnologies.com Eddyfi Technologies – US (American Authorized Distributor and Service Centre) 812 W 13th Street Deer Park, TX, 77536 T +1.281.542.3292 info@eddyfi.com www.eddyfitechnologies.com Document: UMDT013103.docm... -
Page 40: Warranty Repairs
Warranty claims must return to the factory for evaluation. To return an item for evaluation or repair, first contact Eddyfi Technologies at our toll-free number or e- mail address. Eddyfi Technologies will supply a Return Merchandise Authorization (RMA) number with detailed shipping and customs instructions. -
Page 41: Limited Warranty Policy
The foregoing constitutes the sole and exclusive remedy of the purchaser and the exclusive liability of Eddyfi Technologies and is in lieu of any and all other warranties, express, implied or statutory as to merchantability, fitness for purpose sold, description, quality productiveness, or any other matter. Under no circumstances shall Eddyfi Technologies be liable for special, incidental or consequential damages, or for delay in performance of this warranty.
