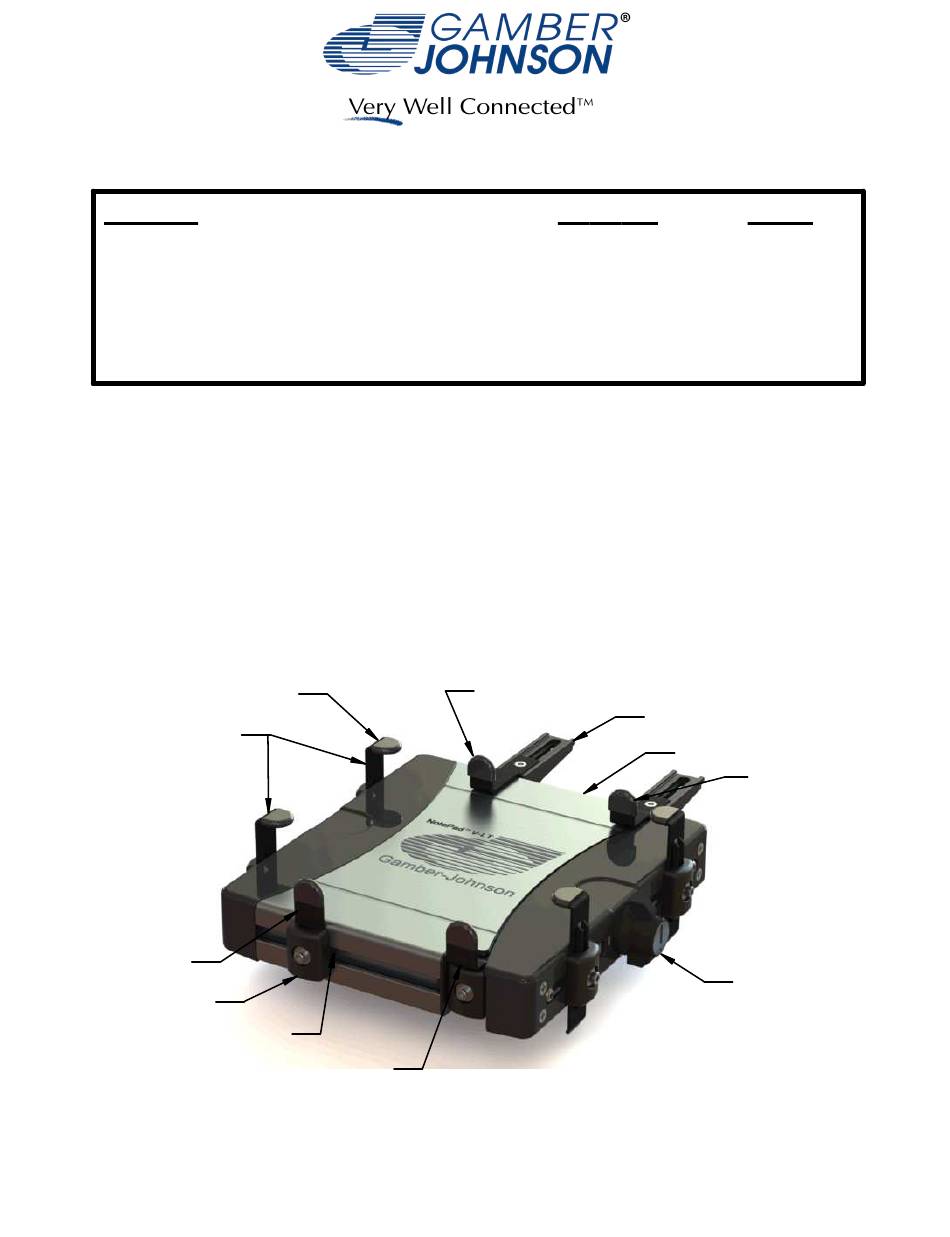

INSTALLATION INSTRUCTIONS

Product

Notepad™V-LT Universal Cradle & Accessories

7160-0402 Notepad™V-LT Universal Cradle w/Standard Side Clips

7160-0402-01 Notepad™V-LT Universal Cradle w/Zero Edge Side Clips

7160-0402-02 Notepad™V-LT Universal Cradle custom

7160-0402-03 Notepad™V-LT Universal Cradle with CAM clips

7160-0251 Screen Support Assembly

7160-0252 LED Light Assembly

7160-0253 Mic Clip Assembly

Notepad™V-LT Universal Computer Mount 7160-0402 will accomodate

computers 8.2" to 11.8" in width, 7.58" to 9.3" in depth and up to 1.50" thick.

The Notepad™V-LT hold-down clips and key lock are designed to securely hold the laptop

in the mount and deter theft, not prevent it.

Gamber-Johnson recommends taking your laptop out of the vehicle when not in use.

9/64" Hex (Allen) wrench is needed to adjust clip location and postion. 7/16" Wrench or

Socket is need to attach Notepad™V-LT to Gamber-Johnson Motion Attachments.

#2 Phillips screwdriver and a 9/64" Hex (Allen) wrench are need to mount accessories.

Vinyl Cap

Side Clips

Flat Front Clip

Clip Guide

Tee Nut

Product Mounting Disclaimer

Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or conseq uential damages for personal injury or other damage

of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson

products full consideration of vehicle occupan ts, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is

required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufacture s specifications

and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868

Offset Front Clip

Revision

Rev. C

Long Rear Clip

Rear Support & Brace

Form

INST-562

Printing Spec: PS-001

Deck

Short Rear Clip

Lockable Latch

1 / 5

Table of Contents

Need help?

Do you have a question about the Notepad V-LT and is the answer not in the manual?

Questions and answers

Summary of Contents for Gamber Johnson Notepad V-LT

Page 1 INSTALLATION INSTRUCTIONS Product Revision Form INST-562 Rev. C Notepad™V-LT Universal Cradle & Accessories 7160-0402 Notepad™V-LT Universal Cradle w/Standard Side Clips 7160-0402-01 Notepad™V-LT Universal Cradle w/Zero Edge Side Clips 7160-0402-02 Notepad™V-LT Universal Cradle custom 7160-0402-03 Notepad™V-LT Universal Cradle with CAM clips 7160-0251 Screen Support Assembly 7160-0252 LED Light Assembly Printing Spec: PS-001...
Page 2 Rear Support Assembly Two Rear Support Clips must be assembled at the time of installation. Attach each Rear Support & Brace to Tee Nut located in channel on back edge of Notepad™V-LT using a #8-32 x .38 Socket Head Screw. Attach the Long Rear Clip and Short Rear Clip to appropriate Rear Support &...
Page 3 Pull to open deck Adjusting Notepad™V-LT for computer If the latch on Notepad™V-LT is locked, unlock the unit with the supplied keys. All Notepad™V-LT's are keyed alike. Unlatch by turning the lock body clockwise 90 degrees. Pull the lock side of the Notepad™V-LT to the right to open the deck.
Page 4 Notepad™V-LT Accessories 7160-0251 Screen Support Assembly The Screen Support Assemly can only be attached to the right side on Notepad™V-LT. Remove the two Phillips Flat Head Screws found at the back right side corner. Place Screen Support Assembly over the holes and attach using two #8-32 x .62 Socket Head Screws and two #8 Flat Washers.
Page 5 Notepad™V-LT Accessories Cont. 7160-0252 LED Light Assembly The LED Light Assembly can be mounted on any corner of the Notpad™V-LT. Remove the two Phillips Flat Head Screws found on the corner. Place the LED Light Assembly over the holes and attach using two #8-32 x .62 Socket Head Screws and two #8 Flat Washers.
