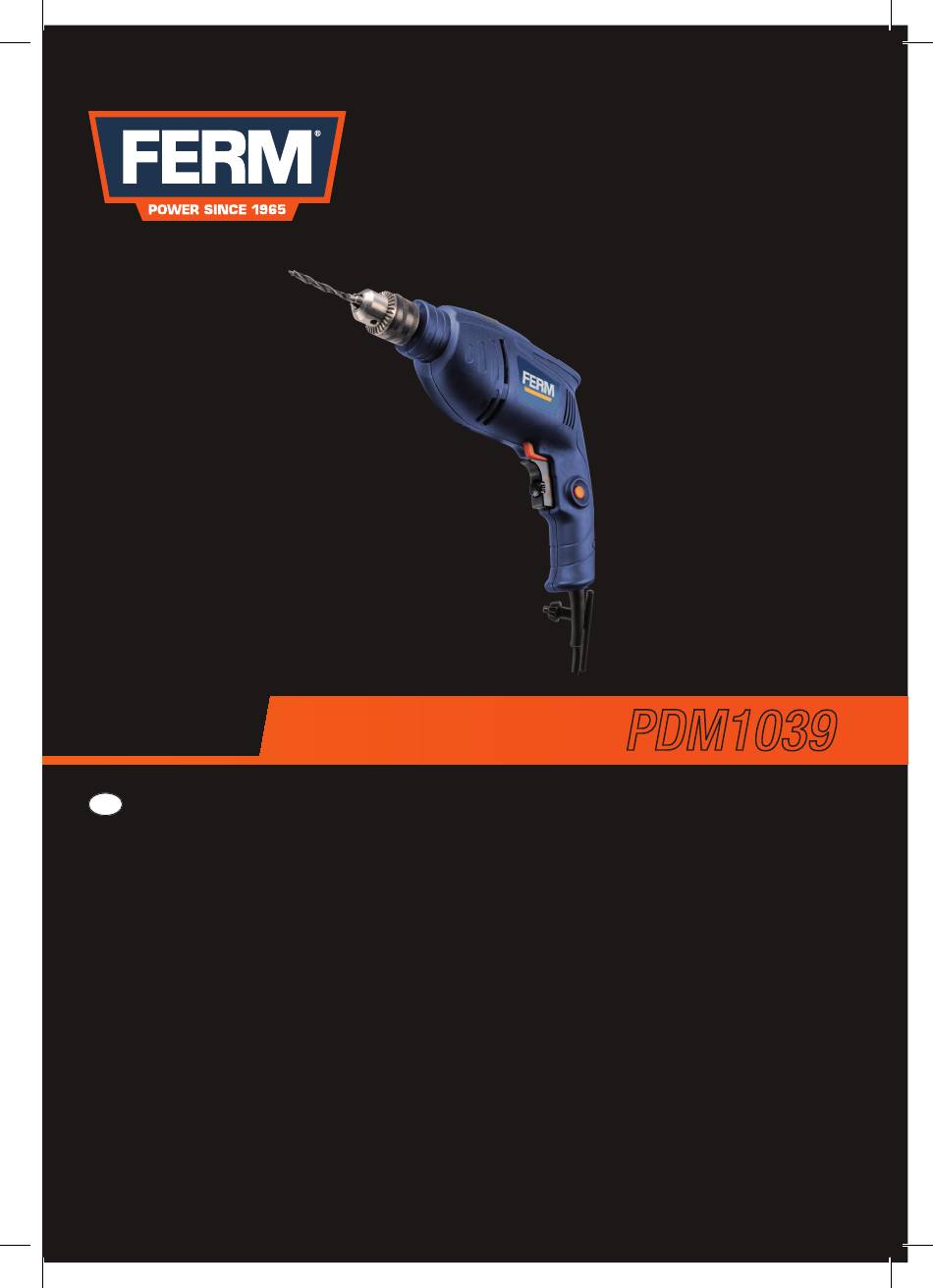

- Page 1 PDM1039 Original instructions WWW.FERM.COM...
- Page 2 Fig. A Fig. B Fig. C...
-
Page 3: Safety Instructions
IMPACT DRILL Wear safety gloves. PDM1039 Thank you for buying this FERM product. By Variable electronic speed doing so you now have an excellent product, delivered by one of Europe’s leading suppliers. All products delivered to you by Ferm are Double insulated. -
Page 4: Electrical Safety
DESCRIPTION (FIG. A) Technical specifications PDM1039 Your impact drill has been designed for drilling Mains voltage 230 V~ holes in wood, metal and plastics and for hammer drilling in brick and concrete. - Page 5 ASSEMBLY Forward/reverse switch (fig. A) Do not change the direction of rotation Before assembly, always switch off the during use. machine and remove the mains plug from the mains. • For clockwise rotation, slide the forward/ Mounting and removing the drill bit (fig. B) reverse switch (4) to the left.
-
Page 6: Cleaning And Maintenance
CLEANING AND MAINTENANCE GENERAL POWER TOOL SAFETY WARNINGS Before cleaning and maintenance, always switch off the machine and remove the WARNING! mains plug from the mains. Read all safety warnings and all instructions. Failure to follow the • Regularly clean the housing with a soft cloth. warnings and instructions may result in electric •... - Page 7 e) When operating a power tool outdoors, 4) Power tool use and care use an extension cord suitable for outdoor a) Do not force the power tool. Use the use. Use of a cord suitable for outdoor use correct power tool for your application. reduces the risk of electric shock.
- Page 8 b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another.
-
Page 10: Spare Parts List
Spare parts list Description Position 407532 Left screw M5 x 22 407401 Chuck drill 10 mm 126124 Spindle 126125 Woodruff key 126126 Steel ball 126127 Spring 126128 Big bush 407382 Gear 126131 Spindle gasket 126132 Bearing 126133 Holder 126134 Impact iron 126135 Impact button 800608... -
Page 11: Exploded View
Exploded view... - Page 12 1501-08 WWW.FERM.COM ©2014 FERM B.V.
