Summary of Contents for Cleveland CE-400 Series

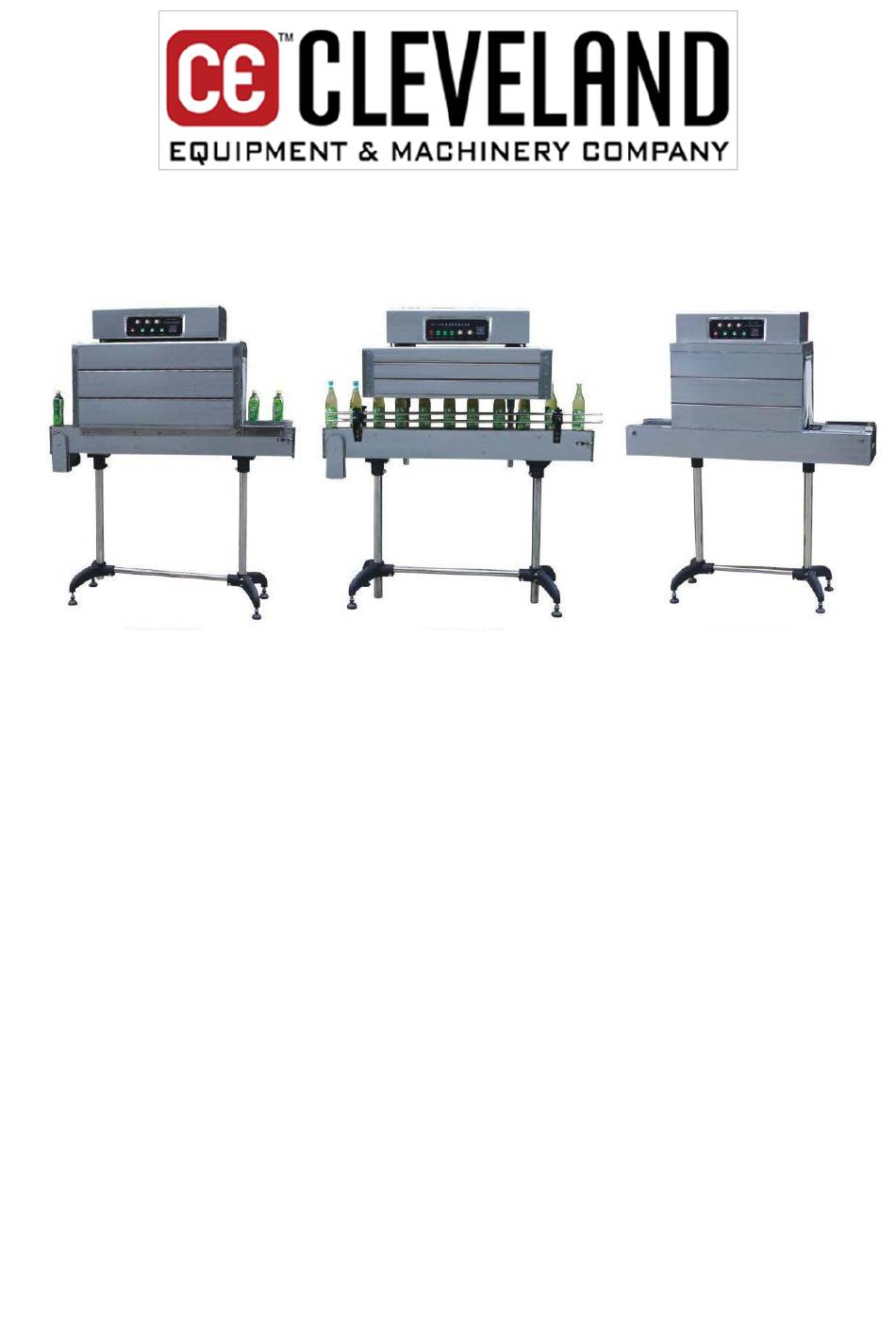

- Page 1 400 S eries abel hrinking Machine Operation Manual...
-
Page 2: Table Of Contents
CE-400 Series Label Shrinking Machines Contents I． FOREWORD ....................2 II． FUNCTION ...................... 2 III． SPECIFICATION ..................... 3 IV． STRUCTURE DIAGRAM ................4 V． CONTROL PANEL ..................8 VI． OPERATIONAL PROCESS ................9 VII. REFERENCE OF SHRINK TEMPERATURE AND TIME ......11 VIII．CAUTION ...................... -
Page 3: I．foreword
II．FUNCTION The CE-400 Series label shrinking machine are mainly applied to shrink label of product in bottle shape, cup shape, or barrel shape. There are 4 models for choice -- - 435, 455, 415, and 425. -
Page 4: Specification
CE-400 Series Label Shrinking Machines III．SPECIFICATION Model CE-435 CE-455 CE-415 CE-425 Power 5 KW 9 KW 7 KW 8 KW Max. packing size Φ105*350H Φ105*350H Φ105*350H Φ160*350H (mm) Adjustable Size of shrink 800*150*380 1000*150*380 1000*150*150 800*200*400 tunnel (mm) Conveyor motor... -
Page 5: Structure Diagram
CE-400 Series Label Shrinking Machines IV．STRUCTURE DIAGRAM CE-435 Page 4... - Page 6 CE-400 Series Label Shrinking Machines CE-455 Page 5...
- Page 7 CE-400 Series Label Shrinking Machines CE-415 Page 6...
- Page 8 CE-400 Series Label Shrinking Machines CE-425 Page 7...
-
Page 9: Control Panel
CE-400 Series Label Shrinking Machines V．CONTROL PANEL 1. Power: 5. Temp. meter: Control the power of machine Adjust temp. of shrink tunnel 2. Fan: 6. Speed Adjuster: Control the motor of fan Adjust speed of conveyor 3. Conveyor: 7. Upper Heating:... -
Page 10: Operational Process
CE-400 Series Label Shrinking Machines VI．OPERATIONAL PROCESS Place the machine on the level ground and unpack it; make sure to complete the ground connection for the safety of operator. (Notice: Grounding plate is displayed in the picture on the right; it can be found on one of 3 power wires if it is single phase;... - Page 11 CE-400 Series Label Shrinking Machines The method of adjusting intelligent temperature meter is below: A. The upper line of number in red shows the practical value (PV), and the down line of number in green shows the set value (SV). B. Press the SET button, the green light flashes.
-
Page 12: Reference Of Shrink Temperature And Time
CE-400 Series Label Shrinking Machines During the process of shrinking, adjust the temperature, conveyor speed and down heating according to practical case. If there are some wrinkle, which means too low temp. or too fast speed, we can increase its temperature or lower the speed. -
Page 13: Caution
CE-400 Series Label Shrinking Machines VIII．CAUTION The electrical input power rate must be higher than the Rated power of the machine to ensure proper function. The power source must be the same as noted on the tag to avoid any circuitry or electrical shock or fire hazard. -
Page 14: Common Malfunction
CE-400 Series Label Shrinking Machines In order to prolong the life of heating pipes, do the right operation according to following step: a) While start machine, put on the heating device and hot fan together at the same time. b) While stop machine, put off the heating device first and let fan run for a while to cool down. -
Page 15: Maintainance
CE-400 Series Label Shrinking Machines X. MAINTAINANCE Switch off power while doing maintenance service. Professional technician is required. XI．SPARE PARTS LIST ITEMS CE-435 CE-455 CE-415 CE-425 Inner-hexagon spanner, 4 mm Inner-hexagon spanner, 6 mm Inner-hexagon spanner, 10 mm Spanner, 8*10mm... -
Page 16: Circuit Diagram
CE-400 Series Label Shrinking Machines XII．CIRCUIT DIAGRAM CE-435 Label Shrink Packaging Machine CE-455 Label Shrink Packaging Machine Page 15... - Page 17 CE-400 Series Label Shrinking Machines CE-415 Label Shrink Packaging Machine CE-425 Label Shrink Packaging Machine Page 16...
