Saeco RI9722/11 Service Manual

Incanto s-class
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INCANTO rondo
INCANTO classic
INCANTO de luxe
INCANTO sirius
Revision: 1
INCANTO easy
INCANTO
INCANTO rapidsteam
INCANTO digital
INCANTO digital SBS
Revision: 5
SERVICE
MANUAL
Saeco International Group
All parts of the present service manual are the pro perty of Saeco International Group. All rights rese
is not responsible for any errors or omissions in t he present document. Any reproduction or unauthoris ed use of this manual
without the prior written permission of the manufac turer or by contractual agreement is prohibited.
Saeco
rved. The manufacturer

Advertisement

Table of Contents
loading

Related Manuals for Saeco RI9722/11

Summary of Contents for Saeco RI9722/11

  • Page 1 INCANTO rondo INCANTO classic INCANTO de luxe INCANTO sirius Revision: 1 INCANTO easy INCANTO INCANTO rapidsteam INCANTO digital INCANTO digital SBS Revision: 5 SERVICE MANUAL Saeco International Group All parts of the present service manual are the pro perty of Saeco International Group. All rights rese is not responsible for any errors or omissions in t he present document.
  • Page 3 INCANTO S-CLASS INCANTO rondo INCANTO classic INCANTO de luxe INCANTO sirius SERVICE MANUAL Revision: 1 Saeco International Group All parts of the present service manual are the property of Saeco International Group. All rights reserved. The manufacturer is not responsible for any errors or omissions in the present document. Any reproduction or unauthorised use of this manual without the prior written permission of the manufacturer or by contractual agreement is prohibited.

  • Page 5: Table Of Contents

    Table of contents Introduction Technical data Operation Functions and timing Service programme Faults Repairs / Service Schedule / Final Test Disassembly Circuit diagrams Saeco International Group REV.1 FEB.2005...

  • Page 7: Introduction

    INTRODUCTION 1. Documents required 2. Equipment 3. Material 4. Safety instructions 5. Overview of product range Saeco International Group CHAPTER 1 REV.1 FEB.2005 Page...
  • Page 9 INCANTO S-CLASS 1. Requirements for operation Service manual • Operating instructions where available • 2. Equipment In addition to an electrical workshop, the following standard tools are necessary: Description Special screwdriver (Pozi) Special screwdriver (Pozi) Temperature measuring device 3. Material Description Comments Heat conductive paste...
  • Page 10 1. INTRODUCTION 5. Overview of product range (Incanto S-CLASS) Incanto rondo Incanto de luxe Pre- brewing INCANTO rondo black INCANTO rondo SBS INCANTO classic INCANTO de luxe INCANTO sirius Page 2/2 Incanto classic Incanto sirius Rapid Powder coffee steam compartment warmer REV.1 FEB.2005 INCANTO S-CLASS...

  • Page 11: Technical Data

    TECHNICAL DATA 1. Technical data (Incanto rondo) 2. Technical data (Incanto classic) Saeco International Group CHAPTER 2 (Incanto de luxe) (Incanto sirius) REV.1 FEB.2005 Page...
  • Page 13 INCANTO S-CLASS 1. Technical data (Incanto rondo) Power supply/output: Safety system: Temperature monitoring: Heating system: Pump: Safety valve: Water filter: Gearmotor: Gear resistor: Cup warmer: Grinder: Grinder motor: Second doser: Power consumption: Pump pressure: Dimensions W x D x H in mm: Weight: Capacity of coffee bean container: Capacity of water tank:...
  • Page 14 2. TECHNICAL DATA 2. Technical data (Incanto classic, de luxe, sirius) INCANTO classic, de luxe, sirius Power supply/output: Safety system: Temperature monitoring: Heating system: Pump: Safety valve: Water filter: Gearmotor: Gear resistor: Cup warmer: Grinder: Grinder motor: Second doser: Power consumption: Pump pressure: Dimensions W x D x H in mm: Weight:...

  • Page 15: Operation

    OPERATION Operation (Incanto rondo) 1.1. Control panel 1.2. Operating instructions Operation (Incanto classic) 2.1. Control panel 2.2. Operating instructions 2.3. User programme Operation (Incanto de luxe) 3.1. Control panel 3.2. Operating instructions 3.3. User programme Operation (Incanto sirius) 4.1. Control panel 4.2.
  • Page 17 INCANTO S-CLASS 3. OPERATION 1. Operation (Incanto rondo) 1.1. Control panel Saeco International Group REV.1 FEB.2005 Page 1/21...
  • Page 18 3. OPERATION 1.2. Operating instructions (quick reference) Action Getting started 1 Unpack machine. 2 Install Aqua Prima filter. 3 Fill water tank 4 Fill coffee beans container. 5 Connect mains plug. 6 Turn on main switch. 7 De-aerate water circuit. Reset filter counter 8 Press steam button.
  • Page 19 INCANTO S-CLASS Water hardness Very hard water (over 21ºdH) Hard water (15º-21ºdH) Medium water (15º-21ºdH) Soft water (4-7ºdH) Soft water (0-3ºdH) Action Remove Aqua Prima filter from water tank. Fill water tank with descaler according to the relevant instructions (Saeco descaler). Open HWS valve Turn machine off.
  • Page 20 3. OPERATION INCANTO S-CLASS 2. Operation (Incanto classic) 2.1 Control panel Page 4/21 REV.1 FEB.2005 Saeco International Group...
  • Page 21 INCANTO S-CLASS 2.2. Operating instructions (quick reference) Action Getting started 1 Unpack machine. 2 Fill water tank 3 Install Aqua Prima filter. 4 Fill coffee beans container. 5 Connect mains plug. 6 Turn on main switch. 7 De-aerate water circuit. Reset filter counter 8 Press hot water button (about 6 sec.)
  • Page 22 3. OPERATION Hot water dispensing 14 Press hot water button. 15 Open HWS valve 16 Close HWS valve 17 Press hot water button. Empty dregs drawer Empty drip tray Clean water tank. Clean coffee bean container. Clean the housing. Rinse brewing unit Clean brewing unit and lubricate Clean filter Descale...
  • Page 23 INCANTO S-CLASS Fault The machine does not switch The machine is not connected to the mains power supply. The coffee is not hot enough. The cups are cold. A low temperature has been set. Only hot water is dispensed No powder coffee has been filled. when powder coffee is selected.
  • Page 24 3. OPERATION 2.3. User programme (Incanto classic) The table below indicates the various settings and programmes which can be selected through the user programme options. Access: The machine must be turned on with the expresso and hot water buttons pressed in order to enter the programming mode.

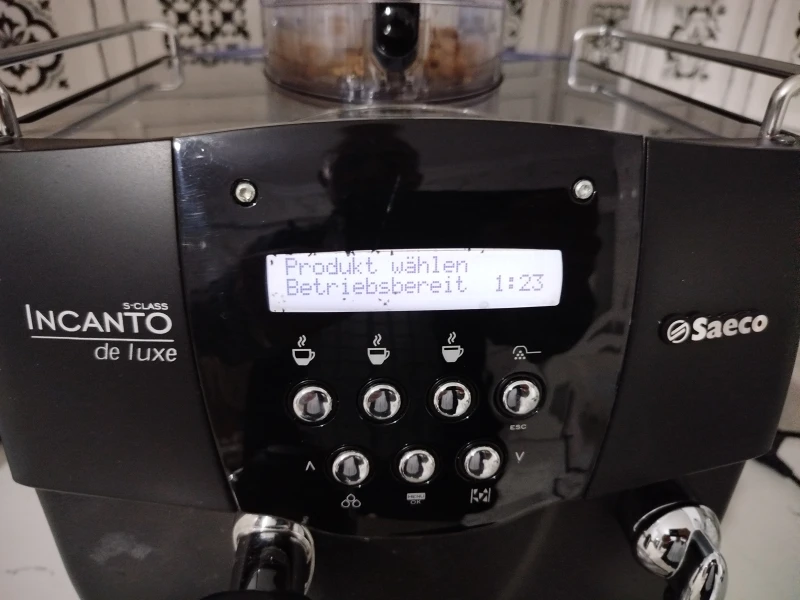

  • Page 25 INCANTO S-CLASS 3. OPERATION 3. Operation (Incanto de luxe) 3.1 Control panel Saeco International Group REV.1 FEB.2005 Page 9/21...
  • Page 26 3. OPERATION 3.2. Operating instructions (quick reference) Action Getting started 1 Unpack machine. 2 Install Aqua Prima filter. 3 Fill water tank 4 Fill coffee beans container. 5 Connect mains plug. 6 Turn on main switch. 7 De-aerate water circuit. 8 Activate water filter.
  • Page 27 INCANTO S-CLASS Empty dregs drawer Empty drip tray Clean water tank. Clean coffee bean container. Clean the housing. Rinse brewing unit Clean brewing unit and lubricate Clean filter Descale Action Remove the Aqua Prima filter. Fill tank with descaler solution. Press descaling button Open HWS valve Programme end...
  • Page 28 3. OPERATION Display indicators Standby Descaling Standby Fill water tank Bean less Ready Empty the dregs drawer Important: The grinds container must only be emptied when the machine is turned on. The container must be removed for at least 5 sec. If the grinds container is emptied when the machine is turned off, coffee dispensing will be locked when the machine is turned on.

  • Page 29: Replace Water Filter

    INCANTO S-CLASS Replace water filter Standby Important information about the Aqua Prima filter 1. Store the Aqua Prima filter in a cool place, protected from sunlight. The room temperature must be between +5°C and +40°C. 2. Use the filter in rooms where the temperature does not exceed 60°C. 3.
  • Page 30 3. OPERATION 3.3. User programme (Incanto de luxe) The table below indicates the various values, settings and programmes which can be read and selected through the user programme options. Various cleaning programmes can also be activated Access: Access via Menu/OK button. Menu procedure: 1.
  • Page 31 INCANTO S-CLASS Item Setting/Indicator Aroma Strong Expresso Normal Mild Aroma Strong Coffee Normal Mild Aroma Strong Expresso lungo Normal Mild Pre-brewing LONG Total coffee Number Timer 00:15 – 03:00 Clock timer Time Switching time Time display Clock timer Cleaning cycle Factory settings Exit: ESC button...
  • Page 32 3. OPERATION 4. Operation (Incanto sirius) 4.1 Control panel < > 4.2. Operating instructions (quick reference) Action Getting started 1 Unpack machine. 2 Install Aqua Prima filter. 2 Fill water tank 3 Fill coffee beans container. 4 Connect mains plug. 5 Turn on main switch.
  • Page 33 INCANTO S-CLASS appropriate button. Coffee dispensing / Powder coffee Place cup under dispenser. Select aroma / Press powder button until the powder spoon appears and select relevant coffee button (expresso lungo / coffee / expresso) Dispensing steam 13 Open HWS valve Hot water dispensing 14 Press steam/hot water button (picture of drops appear on...
  • Page 34 3. OPERATION Action Press OK. Go to YES by using the arrow button. Press OK. Open dial. Open HWS valve Programme end Close HWS valve Fill tank. Press button required. Open HWS valve Programme end Close HWS valve Install Aqua Prima filter. Fill water tank.
  • Page 35 INCANTO S-CLASS Fault/Indicator Does not function No power Brewing unit not properly installed BREWING UNIT NOT or not closed. DETECTED GRINDS CONTAINER Coffee grinds container not properly NOT DETECTED installed. EMPTY GRINDS Coffee grinds container full CONTAINER COFFEE BEAN Coffee bean container is empty. CONTAINER EMPTY FILL WATER TANK.
  • Page 36 3. OPERATION 4.3. User programme (Incanto sirius) The table below indicates the various values, settings and programmes which can be read and selected through the user programme options. Various cleaning programmes can also be activated. Access: Selection entry via menu button. <...
  • Page 37 INCANTO S-CLASS Item Setting/Indicato SIGNSLTON FACTORY SETTINGS PRE-BREWING LANG EXPRESSO High TEMPERATURE Medium COFFEE See expresso TEMPERATURE TEMPERATURE See expresso EXPRESSO LUNGO AROMA Mild SELECTION Normal STRONG TIME DISPLAY TIME TIME FORMAT CLOCK TIMER SWITCHING TIME TIMER Cleaning cycle Descaling cycle TOTAL EXPRESSO COFFEE...

  • Page 39: Functions And Timing

    FUNCTIONS AND TIMING Water system 1.1. Water system (Incanto rondo) 1.2 Water system (Incanto classic) Electrical system Timing Function 4.1. Gearmotor 4.2. Gear resistor 4.3. Water level monitoring 4.4. Flow meter (turbine) 4.5. HWD valve (steam operation) 4.6. Temperature sensor (KTY) 4.7.
  • Page 41 INCANTO S-CLASS 1. Water system 1.1. Water system (Incanto rondo) Water tank Wassertank Schwimmer Float Wasserfilter Water filter Wasserfilter Water filter Flow meter Flowmeter Component Water tank Float Water filter Flow meter (turbine) Pump Safety valve Boiler (flow heater) Sensor (KTY) Thermostat Boiler pin (Valve plug) HWS valve...
  • Page 42 4. FUNCTION/TIMING 1. 2. Water system (Incanto classic, de luxe, sirius) Thermal sensor Temp.sensor Wassertank Water tank Schwimmer Float Water filter Wasserfilter Water filter Wasserfilter Pumpe Pump Flowmeter Flow meter Component Water tank Water filter Flow meter Pump Safety valve Boiler (flow heating) Sensor Thermostat...
  • Page 43 INCANTO S-CLASS 3. Timing The following time chart indicates the functions of the individual components in terms to time HS - ON Timing Grinder motor Heating app.45sec Pump Gearmotor Status MS1 Status MS2 Heating stage Status Explanation: Two processes start when the main switch is activated: Firstly, the gearmotor is initialised.
  • Page 44 4. FUNCTION/TIMING 4. Function 4.1. Gearmotor The gearmotor is connected to the power element of the circuit board via the auxiliary heating system. In order to perform forwards and backwards movements, the gearmotor is controlled alternately with a positive and negative half wave. The voltage is limited by the electronic system to approx. 30 to 35 V. The electronic system of the motor is switched off in the event of an overload.
  • Page 45 INCANTO S-CLASS 4. FUNCTION/TIMING 4.4. Flow meter (Turbine) The machine is equipped with a flow rate monitoring system. The system checks whether the turbine (flow meter) rotation speed at a particular time complies with the pre-set value. If no pulses are generated from the turbine within 10 seconds, the current cycle is interrupted.

  • Page 46: Service Programme

    4. FUNCTION/TIMING Measured values (KTY) Temperature Resistance ( ) 1629 1845 1922 2246 3168 3366 3979 4188 At room temperature the resistance is approx. 1.9K . 4.7. Grinder The grinder is fitted with grinding discs. The grinding discs are made of ceramics. ATTENTION: Adjust the grinding level only when the grinder is in operation! EXCEPTION: Grinder is empty.
  • Page 47 INCANTO S-CLASS 4.9. SBS Saeco Brewing System 4.9.1. General functioning The water flow speed through the brewing unit can be slowed or accelerated by means of an adjustable flow valve (Fig. 2) which is activated by turning the knob on the front of the coffee machine. The contact time of the water with the coffee in the brewing unit (extraction time), and consequently, the coffee concentration, is changed accordingly, while maintaining consistent froth formation.
  • Page 48 4. FUNCTION/TIMING INCANTO S-CLASS 4.9.2. Froth valve functioning The backpressure in the froth valve and, consequently, on the membrane of the froth valve, is minimal when the flow valve is open. Accordingly, the valve needle is kept by the spring pressure in almost home position and the flow is at maximum (Fig.
  • Page 49 INCANTO S-CLASS 4. FUNCTION/TIMING 4.9.3. Extraction values with SBS A comparison of the measured values (dosing quantity 9g/SBS min.; dosing quantity 9g/SBS max. and dosing quantity 6g/SBS min.) indicates that the change from SBS min. to SBS max. corresponds with a change in dosing quantity of 1.5g.
  • Page 51 SERVICE PROGRAMME Service programme (Incanto rondo) 1.1. Test mode Service programme (Incanto classic) 2.1. Test mode 2.2. Diagnosis menu Service programme (Incanto de luxe) 3.1. Test mode 3.2. Diagnosis menu Service programme (Incanto sirius) 4.1. Test mode 4.2. Diagnosis menu Saeco International Group CHAPTER 5 REV.1 FEB.2005...

  • Page 53: Faults

    INCANTO S-CLASS 1.Service programme (rondo) 1.1.Test mode Access: Access the service mode by turning on the machine and simultaneously pressing the 1 Coffee and steam buttons. Various test functions can be activated in the service mode by activating either the coffee or steam buttons in conjunction with various coffee quantity settings.
  • Page 54 5. SERVICE PROGRAMME 2.Service programme (Incanto classic) 2.1.Test mode Access: Access the service mode by turning on the machine and simultaneously pressing the coffee and hot water buttons. The various functions indicated in the table can be checked by pressing the button combinations listed below.
  • Page 55 INCANTO S-CLASS Flow rate The flow rate value must be between 40 and 60. LED description Expresso button LED Coffee button LED Powder button LED Hot water button LED Descale button LED Water Low LED Coffee Beans Low LED Fault LED Example: Powder button (32), Descale button (8) and Coffee Beans Low LED (2) light up = 42 Microswitch test Microswitch...
  • Page 56 5. SERVICE PROGRAMME 2.2. Diagnosis menu (Incanto classic) Application of diagnosis system The diagnosis system makes it possible to read data and enter settings into the coffee machine. ATTENTION: Before connecting the diagnosis box, read the operating instructions (data plug can only be connected and disconnected when both devices are unpowered).
  • Page 57 INCANTO S-CLASS Function Setting range PRE-BREWING 0 – 1 GRINDS COUNTER 0-50 Number GRINDS MAXIMUM 5-50 --TOTAL COFFEE-- --------------------- CYCLES Number --TOTAL WATER-- --------------------- (ml) Number WATER DESCALING --------------------- (ml) WATER FILTER 0 - 999999999 (ml) Number HOT WATER 6 - 34 1/h FLOW (l/h) 20 --HOT WATER--- 58,000 - 65,500...
  • Page 58 5. SERVICE PROGRAMME Function Setting range --SERVICE DATE-- 0 - 31 --SERVICE DATE-- 0 - 12 MONTH --SERVICE DATE-- 1996 - 2050 YEAR Page 6/18 INCANTO S-CLASS Increment Comments +/- 1 The service date indicates the date of the machine's last service. This date can be changed and must be +/- 1 updated at each service.
  • Page 59 INCANTO S-CLASS 3. Service programme (Incanto de luxe) 3.1. Test mode Access: Access the test mode from the standby mode (press 2x Menu/OK) by keeping the EXPRESSO LUNGO and HOT WATER button pressed, whilst pressing the MENU/OK button again. While the buttons are kept pressed, the current software version is shown. The various functions indicated in the table can be checked by pressing the button combinations listed below.
  • Page 60 5. SERVICE PROGRAMME Display in test mode: 1234567890 MR (X) 123456 Upper display line: Indicates the status of the microswitch (see table). Lower display line: Indicates the status of the operating buttons. Flow rate If the pump is activated during test mode and the hot water valve opened, a two-digit number appears on the bottom right side indicating the flow rate.
  • Page 61 INCANTO S-CLASS 3.2. Diagnosis menu (Incanto de luxe) The values below can be read and adjusted in the diagnosis menu as shown in the table. Coffee button Expresso button Hot water button Programme page scrolling Men / OK button Access: Access from the standby mode (press 2x Menu/OK) by keeping the EXPRESSO, LONG COFFEE and HOT WATER button pressed and pressing the MENU/OK button with a slight delay.
  • Page 62 5. SERVICE PROGRAMME Function/Standard Setting range ----HEATING---- SENSOR ADJUST. NORMAL TEMP. 70- 130°C ° C HIGH TEMP. 70- 130°C ° C TEMP. OF 1st 70- 130°C COFFEE ° C STEAM TEMP. 70- 135°C ° C TEMP. INCREASE 0-50°C ° C GRINDS COUNTER 0-50 Number...
  • Page 63 INCANTO S-CLASS Function/Standard Setting range Water flow since 0 - 999999999 descaling indicator (ml) Number HOT WATER 6 - 26 1/h FLOW (l/h) 14 HOT WATER 58,000 - 65,500 PUMP ADJUST. 63000 WATER RESERVE COUNTER NUMBER WATER RESERVE STOP CLEANING CYCLE Counter Number CLEANING CYCLE...
  • Page 64 5. SERVICE PROGRAMME 4. Service programme (Incanto sirius) 4.1. Test mode Access: Access the service programme from the standby mode (press MENU/OK) by keeping the EXPRESSO LUNGO and EXPRESSO button pressed, whilst pressing the ON button. If the ON button is released, the current software version is shown. <...
  • Page 65 INCANTO S-CLASS Display in test mode: 123456789A MR (X)* 123456 Upper display line: Indicates the status of the microswitch (see table). Lower display line: Indicates the status of the operating buttons. Flow rate If the pump is activated during test mode and the hot water valve opened, a two-digit number appears on the bottom right side indicating the flow rate.
  • Page 66 5. SERVICE PROGRAMME All CPU input signals from the machine appear in the first line of the display. 8 = Flow meter pulses 9 = Front door microswitch A = Grinder Hall sensor pulses (a "M" appears in idle mode) M = Grinder idle indicator R = (flashing) Clock function OK X = Dose quantity base setting (0, 1, 2)
  • Page 67 INCANTO S-CLASS 4.2. Diagnosis menu (Incanto sirius) The values below can be read and adjusted in the diagnosis menu as shown in the table. < > Access: Access from the standby mode (press MENU/OK) by keeping the EXPRESSO and HOT WATER button pressed, whilst pressing briefly the ON button.
  • Page 68 5. SERVICE PROGRAMME Function/Standard Setting range ----HEATING---- SENSOR ADJUST 96 NORMAL TEMP. 70- 130°C ° C HIGH TEMP. 70- 130°C ° C TEMP. 1st COFFEE 70- 130°C ° C TEMP. INCREASE 0-50°C ° C GRINDS COUNTER Number GRINDS STOP 1 EXPRESSO (ml) Number 1 COFFEE...
  • Page 69 INCANTO S-CLASS Function/Standard Setting range TOTAL WATER (ml) Number WATER DESCALING 0 – 999999999 (ml) Number WATER SINCE 0 – 999999999 DESCALING (ml) Number NUMBER OF DESCALING PROCESSES: Number NUMBER OF CLEANING PROCESSES Number WATER FILTER 0 – 999999999 (ml) Number HOT WATER 6 –...
  • Page 70 5. SERVICE PROGRAMME Function/Standard Setting range MACHINE STATUS 0 – 255 --DATE OF MANUF--- --------------------- --DATE OF MANUF--- --------------------- MONTH --DATE OF MANUF--- --------------------- YEAR --SERVICE DATE-- 0 - 31 --SERVICE DATE-- 0 - 12 MONTH --SERVICE DATE-- 1996 - 2050 YEAR Exit: Press ESC button.
  • Page 71 CHAPTER 6 FAULTS Page 1. Faults Saeco International Group REV.1 FEB.2005...

  • Page 73: Service Schedule

    SERVICE SCHEDULE 1. Repairs schedule 2. Service schedule 3. Final test Saeco International Group CHAPTER 7 REPAIRS / REV.1 FEB.2005 Page...
  • Page 75 INCANTO S-CLASS 1. Repairs schedule: The repairs schedule, together with the service schedule, lists all relevant activities to be performed in an efficient sequence. Activity Visual check (transport damage) Record of machine data Functional check / Error analysis (test mode) Opening of machine Visual check (leakages) Mechanical systems check (functional test)
  • Page 76 7. REPAIRS/SERVICE SCHEDULE 3. Final test: Test Procedure Cup fill volume 2-3 cups on expresso setting Cup fill volume 2-3 cups on coffee setting Noise emission Froth quantity Carefully froth coffee in cup until froth separates Froth colour Temperature Measurement of dispensed coffee stream Grind level Check grain size of coffee...
  • Page 77 DISASSEMBLY Disassembling the cover Dismantling of the grinder Disassembly of the grinder discs Grinder adjustment Disassembly of the Grinder Disassembly of the display Dismantling of the power board Dismantling of the support plate Dismantling of the pipe heater 10. Dismantling of the instantaneous water heater 11.
  • Page 79 INCANTO-CLASS Disassembly of the cover Fig. 1 Fig. 2 Fig. 3 Fig. 4 Saeco International Group 8. DISASSEMBLY Remove the screw showen in figure • 1 and remove the coffee bean hopper. Unscrew the preground coffee • compartment and remove. Remove the screws shown in Fig.
  • Page 80 8. DISASSEMBLY Seite 2/29 Remove the seal. • Fig. 5 Remove the two screws. • Fig. 6 Remove the cover. • Fig. 7 Remove the ground connector. • Remove the cupwarmer connector. • Fig. 8 REV.1 FEB.2005 INCANTO S-CLASS Saeco International Group...
  • Page 81 INCANTO-CLASS Dismantling of the the grinder Fig. 1 Fig. 2 Fig. 3 Fig. 4 Saeco International Group 8. DISASSEMBLY Remove the three screws as showen. • Remove the clips. • Remove the connector. • Remove the connector. • REV.1 FEB.2005 Seite 3/29...
  • Page 82 8. DISASSEMBLY Fig. 5 Seite 4/29 INCANTO S-CLASS Remove the grinder. • Assemble in revers order. • REV.1 FEB.2005 Saeco International Group...
  • Page 83 INCANTO-CLASS Disassembly of the the grinder discs Fig. 1 Fig. 2 Fig. 3 Fig. 4 Saeco International Group 8. DISASSEMBLY Press the release button (1) and at • the same time turn the ring nut (2) counterclockwise to the end of its stroke and remove the ringnut.
  • Page 84 8. DISASSEMBLY Seite 6/29 Remove all the ground coffee by • means of a vacuum cleaner. Clean also the openings of the three • seats, by means of a small screwdriver. Fig. 5 Turn the grinder disc • counterclockwise and unhinge it. Fig.
  • Page 85 INCANTO-CLASS Grinder adjustment Fig. 1 Fig. 2 Saeco International Group 8. DISASSEMBLY Insert the ringnut in the same • position where its been removed. Press the release button and turn it • clockwise till the two reverence marks match. When attaching the bean hopper •...
  • Page 86 8. DISASSEMBLY Disassembly of the grinder Seite 8/29 Cut the relevant clips. • Fig. 1 Remove the connectors. • Fig. 2 Remove the three screws. • Fig. 3 REV.1 FEB.2005 INCANTO S-CLASS Saeco International Group...
  • Page 87 INCANTO-CLASS Fig. 4 Fig. 5 Fig. 6 Fig. 7 Saeco International Group 8. DISASSEMBLY Remove the four screws, as shown • in figure 4 Remove the sensor, by pressing the • anchoring tab by means of a screwdriver..at the same time remove it •...
  • Page 88 8. DISASSEMBLY Fig. 10 Fig. 11 Seite 10/29 Fit the rubber cap to the flange of • the new grinder motor. Fig. 8 Fit the rubber cap to the flange of • the new grinder motor. Fig. 9 Insert the sensor removed from the •...
  • Page 89 INCANTO-CLASS Fig. 12 Fig. 13 Fig. 14 Fig. 15 Saeco International Group 8. DISASSEMBLY Connect the the motor to the wiring. • The black wire has to be connected • to (-), the white one has to be connected to (+). In case the sprocket is worn out, •...
  • Page 90 8. DISASSEMBLY Fig. 16 Fig. 17 Fig. 18 Fig. 19 Seite 12/29 INCANTO S-CLASS Grease the gear. • Attention: Use exclusivley grease type: • “Interflon fin food grease 2”. Saeco code no. 14-INTEGR22004 Grease the sprocket. • Grease the worm gear. •...
  • Page 91 INCANTO-CLASS Disassembly of the the display Fig. 1 Fig. 2 Fig. 3 Fig. 4 Saeco International Group 8. DISASSEMBLY Remove the four screws. • Remove the two flat cables. • Remove the two screws. • Remove all connectors of the •...
  • Page 92 8. DISASSEMBLY Seite 14/29 Remove the four screws, as shown • in the figure. Remove the blue flat cable as shown • in the figure. Fig. 6 Remove the two screws as shown in • the figure. Fig. 7 Disassembled parts. •...
  • Page 93 INCANTO-CLASS Dismantling of the the power board Fig. 1 Fig. 2 Saeco International Group 8. DISASSEMBLY Detach all connectors of the power • board. Remove the four screws as shown in • the figure, and remove the power board. Assembly in revers order •...
  • Page 94 8. DISASSEMBLY Dismantling of the the support plate Seite 16/29 Remove the steam tube connection • by pulling while rotating counter clockwise. Fig. 1 Remove the four screws, as shown • in the figure. Fig. 2 Pull the switch off the seat and •...
  • Page 95 INCANTO-CLASS Fig. 5 Fig. 6 Fig. 7 Saeco International Group 8. DISASSEMBLY Remove the grommet, as shown. • Remove the ground wire, as shown • in the figure. Remove the assembly plate out of • the housing. Assembly in revers order •...
  • Page 96 8. DISASSEMBLY Dismantling of the the pipe heater Seite 18/29 Remove the screw, as shown in • figure 1. Fig. 1 Remove the two union nuts and • remove the two tubes. Fig. 2 Remove the thermo isolation of the •...
  • Page 97 INCANTO-CLASS Fig. 5 Saeco International Group 8. DISASSEMBLY Dismantled pipe heater. • Assembly in revers order • REV.1 FEB.2005 Seite 19/29...
  • Page 98 8. DISASSEMBLY 10. Dismantling of the the instantaneous water heater Seite 20/29 Remove the union nut, as shown in • the figure. Fig. 1 Remove the mounting screw of the • pipe heater. Fig. 2 Remove the three screws, as shown •...
  • Page 99 INCANTO-CLASS Fig. 5 Fig. 6 Fig. 7 Fig. 8 Saeco International Group 8. DISASSEMBLY Remove the three faston connectors, • as shown in figure 5. Remove the faston connectors, as • shown in figure 6. Remove the mounting screw of the •...
  • Page 100 8. DISASSEMBLY Seite 22/29 Dismantled instantaneous water • heater. Fig. 9 Assembly in revers order • REV.1 FEB.2005 INCANTO S-CLASS Saeco International Group...
  • Page 101 INCANTO-CLASS 11. Dismantling of the the flow meter Fig. 1 Fig. 2 Fig. 3 Fig. 4 Saeco International Group 8. DISASSEMBLY Remove the two clips, as shown in • the figure. Remove the flow meter connector • from the control board. Remove the water hose from the •...
  • Page 102 8. DISASSEMBLY 12. Disassembly of the the gear Seite 24/29 Remove the three screws, as shown • in the figure. Fig. 1 Remove the instantaneous water • heater. Fig. 2 Remove all the screws from the gear • motor cover. Fig.
  • Page 103 INCANTO-CLASS Fig. 5 Fig. 6 Fig. 7 Fig. 8 Saeco International Group 8. DISASSEMBLY Empty gear housing. • Insert the new double toothed gear • (in any position). Insert the new grey gear. • Attention: Make sure the arrow is pointing to the axle of the double toothed gear.
  • Page 104 8. DISASSEMBLY Seite 26/29 Attach the gear cover and fasten the • screws, as shown in figure 13. Fig. 9 Assembly in revers order • REV.1 FEB.2005 INCANTO S-CLASS Saeco International Group...
  • Page 105 INCANTO-CLASS 13. Dismantling of the pump Fig. 1 Fig. 2 Fig. 3 Saeco International Group 8. DISASSEMBLY Remove the measuring scoop. • Pull down the lever (2) and loosen • the cover. Unlock the four (three) notches, and • remove the locking plate. REV.1 FEB.2005 Seite 27/29...
  • Page 106 8. DISASSEMBLY Seite 28/29 The pump supports are now • unlocked. Fig. 4 Remove the adapter angle (1) • Remove the water hose (2) • Remove the locking spring (3) • Remove the teflon tube (4) • Fig. 5 Seperate the upper Pump support (1) •...
  • Page 107 INCANTO-CLASS 4. Adjustment dosage (Incanto rondo) Fig. 1 Saeco International Group 8. DISASSEMBLY Remove the HWS-knob and adjust • the dosage as follows: Rotation counterclockwise decreases dosage (min 6 grammes) Rotation clockwise increases the dosage (max 10,5 grammes). REV.1 FEB.2005 Seite 29/29...
  • Page 109 CHAPTER 9 CIRCUIT DIAGRAMS Saeco International Group REV.1 FEB.2005...
  • Page 111 INCANTO EASY INCANTO INCANTO RAPIDSTEAM INCANTO DIGITAL INCANTO DIGITAL SBS SERVICE MANUAL Revision: 5 Saeco International Group All parts of the present service manual are the property of Saeco International Group. All rights reserved. The manufacturer is not responsible for any errors or omissions in the present document. Any reproduction or unauthorised use of this manual without the prior written permission of the manufacturer or by contractual agreement is prohibited.

  • Page 113: Repairs / Service Schedule / Final Test

    Table of contents Introduction Technical data Operation Functions and timing Service programme Faults Fault diagnosis Repairs / Service Schedule / Final Test Disassembly Circuit diagrams Saeco International Group REV.5 FEB.2005...
  • Page 115 INTRODUCTION 1. Documents required 2. Equipment 3. Material 4. Safety instructions 5. Overview of product range Saeco International Group CHAPTER 1 REV5 FEB.2005 Page...
  • Page 117 INCANTO 1. Requirements for operation Service manual Operating instructions where available 2. Equipment In addition to an electrical workshop, the followin g standard tools are necessary: Qty Description Special screwdriver (Pozi) Special screwdriver (Pozi) Temperature measuring device 3. Material Description Comments Heat conductive paste Temperature resistance 2...
  • Page 118 1. INTRODUCTION 5. Overview of product range Incanto Digital Pre-brewing Pre-grinding INCANTO Easy Pre-brewing INCANTO INCANTO rapid steam INCANTO rapid steam SBS INCANTO digital INCANTO digital SBS Incanto/ Incanto rapid steam Rapid Powder co ee steam compartment INCANTO Display warmer i t a...
  • Page 119 TECHNICAL DATA 1. Technical Data (Incanto/Easy) 2. Technical Data (Incanto Rapid Steam) 3. Technical Data (Incanto Digital/Digital SBS) 3 Saeco International Group CHAPTER 2 REV5 FEB.2005 Page...
  • Page 121 INCANTO 1. Technical Data (Incanto, Incanto Easy) INCANTO / INCANTO Easy Power supply/output: Safety system: Temperature monitoring: Continuous flow thermoblock: Pump: Safety valve: Water filter: Gearmotor: Gear resistor: Cup warmer Grinder (conical): Grinder motor: Second Doser: Power consumption: Pump pressure: Dimensions W x D x H in mm: Weight: Coffee bean container capacity:...
  • Page 122 2. TECHNICAL DATA 2. Technical Data (Incanto Rapid Steam) INCANTO RAPID STEAM Power supply/output: Safety system: Temperature monitoring: Continuous flow thermoblock: Pipe heating: Pump: Safety valve: Water filter: Gearmotor: Gear resistor Cup warmer Grinder (conical): Grinder motor: Second Doser: Power consumption: Pump pressure: Dimensions W x D x H in mm: Weight:...
  • Page 123 INCANTO 3. Technical Data (Incanto Digital / SBS) INCANTO DIGITAL / SBS Power supply/output: Safety system: Temperature monitoring: Continuous flow thermoblock: Pipe heating: Pump: Safety valve: Water filter: Gearmotor: Gear resistor Cup warmer Grinder (conical): Grinder motor: Second Doser: Power consumption: Pump pressure: Dimensions W x D x H in mm: Weight:...
  • Page 125 OPERATION Operation (Incanto) 1.1. Control panel 1.2. Operating instructions 1.3. User programme Operation (Incanto Rapid Steam) 2.1. Control panel 2.2. Operating instructions 2.3. User programme Operation (Incanto Digital/Digital SBS) 3.1. Control panel 3.2. Operating instructions 3.3. User programme Operation (Incanto Easy) 4.1.
  • Page 127 INCANTO 1. Operation (Incanto) 1.1 Control panel 1.2. Operating instructions (quick reference) Action Getting started 1 Unpack machine. 2 Fill water tank. 3 Fill coffee beans container. 4 Connect mains plug. 5 Turn on main switch. 6 De-aerate water circuit. Making coffee 7 Programme coffee quantity for each selection button.
  • Page 128 3. OPERATION Action Coffee dispensing / Powder coffee 10 Place cup under dispenser. 11 Select powder button and relevant coffee button: Expresso / Coffee Dispensing steam 12 Press steam button. 14 Steam dispensing. Open HWS valve 15 Press steam button / deactivate steam function.

  • Page 129: Descaling Procedure

    INCANTO Action Descaling Keep the descaling button pressed for about 5 sec. Open HWS valve Programme end Close HWS valve Rinse (fill tank 2x) Fault No display No power supply to machine. Water instead of coffee (powder button pressed) Coffee is not hot enough No hot water/steam Hot water/steam nozzle blocked Heating time too long, water quantity...
  • Page 130 3. OPERATION 1.3. User programme (Incanto) The table below indicates the various settings and programmes which can be selected through the user programme options. Access: The machine must be turned on with the expresso and steam buttons pressed in order to enter the programming mode.
  • Page 131 INCANTO 2. Operation (Incanto Rapid Steam) 2.1 Control panel 2.2. Operating instructions (quick reference) Action Getting started 1 Unpack machine 2 Fill water tank 3 Fill coffee beans container 4 Connect mains plug 5 Turn on main switch 6 De-aerate water circuit Making coffee 7 Programme coffee quantity for each selection button...
  • Page 132 3. OPERATION Action Coffee dispensing / Powder coffee 10 Place cup under dispenser 11 Select powder button and relevant coffee button: Expresso / Coffee Dispensing steam 12 Open HWS valve Hot water dispensing 13 Press hot water button 14 Open HWS valve 15 Close HWS valve 16 Press hot water button Empty dregs drawer...
  • Page 133 INCANTO Action Keep the descaling button pressed for about 5 sec. Open HWS valve Programme end Close HWS valve Rinse (fill tank 2x) Fault No display No power supply to machine. Water instead of coffee (powder button pressed) Coffee is not hot enough No hot water/steam Hot water/steam nozzle blocked Heating time too long, water quantity...
  • Page 134 3. OPERATION 2.3. User programme (Incanto Rapidsteam) The table below indicates the various settings and programmes which can be selected through the user programme options. Access: The machine must be turned on with the expresso and hot water buttons pressed in order to enter the programming mode.
  • Page 135 INCANTO 3. Operation (Incanto Digital/SBS) 3.1 Control panel 3.2. Operating instructions (quick reference) Action Getting started Unpack machine Fill water tank Fill coffee beans container Connect mains plug Turn on main switch De-aerate water circuit Making coffee Programme coffee quantity for each selection button.
  • Page 136 3. OPERATION Dispensing steam 12 Open HWS valve Hot water dispensing 13 Press hot water button. 14 Open HWS valve 15 Close HWS valve 16 Press hot water button. Empty dregs drawer Empty drip tray Clean water tank Clean coffee bean container Clean the housing Rinse brewing unit Clean brewing unit and...
  • Page 137 INCANTO Fault/Indicator Machine does not function No power BREWING UNIT NOT Brewing unit not properly installed or not closed DETECTED GRINDS CONTAINER NOT Coffee grinds container not properly DETECTED installed EMPTY GRINDS Coffee grinds container full CONTAINER COFFEE BEAN Coffee bean container is empty CONTAINER EMPTY Water tank is empty FILL WATER...
  • Page 138 3. OPERATION 3.3. User programme (Incanto Digital/SBS) The table below indicates the various values, settings and programmes which can be read and selected through the user programme options. Various cleaning programmes can also be activated. Access: Access via Menu/OK button. Menu procedure: 1.
  • Page 139 INCANTO Item Setting/Indicator Pre-brewing LONG Pre-grinding ON/OFF Total coffee Number Clock timer Cleaning cycle Factory settings Exit: ESC button Saeco International Group Standard Function Coffee is moistened before actual brewing (better aroma) Pre-grinds the next coffee dose Coffee quantity indicator Enter time Enter daily start-up time Enter daily shut-down time...
  • Page 140 3. OPERATION 4. Operation (Incanto Easy) 4.1. Control panel 4.2. Operating instructions (quick reference) Action 1 Unpack machine 2 Install Aqua Prima filter 3 Fill water tank 4 Fill coffee beans container 5 Connect mains plug 6 Turn on main switch 7 De-aerate water circuit Reset filter counter 8 Press steam button...
  • Page 141 INCANTO Empty dregs drawer Empty drip tray Clean water tank Clean coffee bean container Clean the housing Rinse brewing unit Clean brewing unit and lubricate Clean filter Descale Water hardness Very hard water (over 21ºdH) Hard water (15º-21ºdH) Medium water (15º-21ºdH) Soft water (4-7ºdH)
  • Page 142 3. OPERATION Expresso, coffee and steam buttons flash Filter warning LED lights up (MACHINE NOT LOCKED) Warning LED lights up Warning LED flashes Page 16/16 Cannot dispense - Overheating: Remove hot water until only expresso and coffee buttons are lit. - Install Aqua Prima filter.

  • Page 143: Functions And Timing

    FUNCTIONS AND TIMING Water system 1.1. Water system (Incanto/Easy) 1.2. Water system (Incanto R. Steam/Dig.) 1.3. Water system (Incanto Dig. SBS) Electrical system 2.1. CPU – IN / OUT (Incanto) 2.2. CPU – IN / OUT (Incanto Rapid Steam) 2.3. CPU – IN / OUT (Incanto Digital) Timing Function 4.1.
  • Page 145 INCANTO 1. Water system 1.1. Water system (Incanto, Easy) Water tank Water filter Float Heating 1000W Thermal sensor (Incanto Easy with boiler J) Component Water tank Float Water filter Flow meter (turbine) Pump Safety valve Instantaneous water heater Sensor (KTY) Thermostat Boiler pin (Valve plug) HWS valve...
  • Page 146 4. FUNcTION/TIMING 1. 2. Water system (Incanto Rapid Steam / Incanto Digital) Water tank Water tank Water filter Float Water filter Pump Savety valve Overpressure Gear resistor Thermostat 170° Heating 1070W Thermal sensor Boiler water Heating 437W Component Water tank Water filter Flow meter Pump...
  • Page 147 INCANTO 1. 3. Water system (Incanto Digital SBS) Water tank Wassertank Schwimmer Float Water filter Wasserfilter Water filter Wasserfilter Flow meter Flowmeter Component Water tank Water filter Flow meter Pump Safety valve Boiler/Heating Sensor Thermostat Valve plug Pipe heating Thermostat (pipe heating) HWS valve (tea nozzle) Saeco International Group 4.

  • Page 148: Electrical System

    4. FUNcTION/TIMING 2. Electrical system 2.1. CPU – IN / OUT (Incanto) COD. 1.8.155.07.58 JP25 JP28 Saeco International Group Black SCHW. Thermo- Thermal sensor fühler Blue BLAU JP19 Blue BLAU Brown BRAUN JP18 Flow meter / Yellow GELB Flowmeter- Turbine Turbine Green GRÜN...
  • Page 149 INCANTO 2.2. CPU – IN / OUT (Incanto Rapid Steam) COD. 1.8.155.11.58 JP25 JP17 JP28 BLAU Blue Thermost. Thermostat T 175 T 170 BLAU Blue Saeco International Group 4. FUNCTION/TIMING SCHW. Black Thermo- Thermal sensor fühler Blue BLAU JP19 Blue BLAU Brown BRAUN...
  • Page 150 4. FUNcTION/TIMING 2.3. CPU – IN / OUT (Digital) COD. 1.8.155.10.58 JP25 JP17 JP28 JP14 Blue BLAU Thermost. Thermostat T 175 T 170 Blue BLAU Saeco International Group SCHW. Black Thermal sensor Blue BLAU JP19 Blue BLAU Brown BRAUN Flow meter / Yellow JP18 GELB...
  • Page 151 INCANTO 3. Timing The following time chart indicates the functions of the individual components in terms to time G rin de r mo to r Do se r He ati ng a pp . 1.5 min Pu mp G ear m o tor Statu s Hea ti ng stag e N ot e: * on ly in ma ch ine s with pr e-b re win g s yste m...
  • Page 152 4. FUNcTION/TIMING 4. Function 4.1. Gearmotor The gearmotor is connected to the power element of the circuit board via the auxiliary heating system. In order to perform forward and backward movements, the gearmotor is controlled alternately with a positive and negative half wave. The voltage is limited by the electronic system to approx. 30 to 35 V. In the event of overload the motor's electronic system switches off after 8-10 sec.
  • Page 153 INCANTO 4. FUNCTION/TIMING 4.4. Flow meter (Turbine) The machine is equipped with a flow rate monitoring system. The system checks whether the turbine (flow meter) rotation speed at a particular time complies with the pre-set value. If no pulses are generated from the turbine within 10 seconds, the current cycle is interrupted.
  • Page 154 4. FUNcTION/TIMING Measured values (KTY) Temperature Resistance ( ) 1629 1845 1922 2246 3168 3366 3979 4188 At room temperature the resistance is approx. 1.9K . 4.7. Grinder The grinder is a conical grinder with upper and lower grinding disc. The grinding level is set by adjusting the height of the upper grinding disc by means of the screw thread.
  • Page 155 INCANTO 4.9. SBS Saeco Brewing System 4.9.1. General functioning The water flow speed through the brewing unit can be slowed or accelerated by means of an adjustable flow valve (Fig. 2) which is activated by turning the knob on the front of the coffee machine. The contact time of the water with the coffee in the brewing unit (extraction time), and consequently, the coffee concentration, is changed accordingly, while maintaining consistent froth formation.
  • Page 156 4. FUNcTION/TIMING INCANTO 4.9.2. Froth valve functioning The backpressure in the froth valve and, consequently, on the membrane of the froth valve, is minimal when the flow valve is open. Accordingly, the valve needle is kept by the spring pressure in almost home position and the flow is at maximum (Fig.
  • Page 157 INCANTO 4. FUNCTION/TIMING 4.9.3. Extraction values with SBS A comparison of the measured values (dosing quantity 9g/SBS min.; dosing quantity 9g/SBS max. and dosing quantity 6g/SBS min.) indicates that the change from SBS min. to SBS max. corresponds with a change in dosing quantity of 1.5g.
  • Page 159 SERVICE PROGRAMME Service programme (Incanto / Inc. R. Steam) 1.1. Functions programme 1.2. Diagnosis menu (diagnosis box) Service programme (Incanto Digital) 2.1. Functions programme 2.2. Diagnosis menu Service programme (Incanto Easy) 2.1. Functions programme Saeco International Group CHAPTER 5 REV5 FEB.2005 Page...
  • Page 161 INCANTO 1. Service programme (Incanto Rapidsteam) 1.1.Functions programme Access: Access the service mode by turning on the machine and simultaneously pressing the coffee and steam buttons. The various functions indicated in the table can be checked by pressing the button combinations listed below.
  • Page 162 5. SERVICE PROGRAMME The following switches can also be tested in the same programme. Microswitch Control LED Reed switch Water low (Water low) Dregs drawer/Drip Coffee beans low tray HWS switch Fault LED Door switch Descaling LED Brewing unit Steam LED Page 2/11 REV.5 FEB.2005 Saeco International Group...
  • Page 163 INCANTO 1.2. Diagnosis menu (Incanto and Incanto Rapidsteam / Diagnosis box) Application of diagnosis system The diagnosis system makes it possible to read data and enter settings into the Incanto and Incanto Rapid Steam coffee machines. ATTENTION: Before connecting the diagnosis box, it is important to ensure that you have read the operating instructions.
  • Page 164 5. SERVICE PROGRAMME Function Setting range TEMP. INCREASE 0-50°C ° C PRE-BREWING 0 – 1 GRINDS COUNTER 0-50 Number GRINDS MAXIMUM 5-50 --TOTAL COFFEE-- --------------------- CYCLES Number --TOTAL WATER-- --------------------- (ml) Number WATER DESCALING --------------------- (ml) HOT WATER 6 - 34 1/h FLOW (l/h) 20 --HOT WATER--- 58,000 - 65,500...
  • Page 165 INCANTO Function Setting range --DATE OF MANUF--- --------------------- --DATE OF MANUF--- --------------------- MONTH --DATE OF MANUF--- --------------------- YEAR --SERVICE DATE-- 0 - 31 --SERVICE DATE-- 0 - 12 MONTH --SERVICE DATE-- 1996 - 2050 YEAR Saeco International Group 5. SERVICE PROGRAMME Increment Comments -----------------------...
  • Page 166 5. SERVICE PROGRAMME 2. Service programme (Incanto Digital) 2.1. Functions programme Access: Access the service programme from the standby mode (press 2x Menu/OK) by keeping the EXPRESSO LUNGO and HOT WATER button pressed, whilst pressing the MENU/OK button again. While the buttons are kept pressed, the current software version is shown. The various functions indicated in the table can be checked by pressing the button combinations listed below.
  • Page 167 INCANTO The upper display line signals the activated microswitch and the Hall effect of the turbine. The activated buttons are signalled by the lower display line (e.g. 1=S1, 2=S2, etc.). All CPU input signals from the machine appear in the first line of the display.
  • Page 168 5. SERVICE PROGRAMME 2.2. Diagnosis menu (Incanto Digital) The values below can be read and adjusted in the diagnosis menu as shown in the table. Access: Access from the standby mode (press 2x Menu/OK) by keeping the EXPRESSO, EXPRESSO LUNGO and HOT WATER button pressed and pressing the MENU/OK button with a slight delay.
  • Page 169 INCANTO Function/Standard Setting range ----HEATING---- SENSOR ADJUST. NORMAL TEMP. 70- 130°C ° C HIGH TEMP. 70- 130°C ° C TEMP. OF 1st 70- 130°C COFFEE ° C STEAM TEMP. 70- 135°C ° C TEMP. INCREASE 0-50°C ° C GRINDS COUNTER 0-50 Number GRINDS STOP...
  • Page 170 5. SERVICE PROGRAMME Function/Standard Setting range WATER DESCALING (ml) HOT WATER 6 - 34 1/h FLOW (l/h) 20 HOT WATER 58,000 - 65,500 PUMP ADJUST. 63000 WATER RESERVE COUNTER NUMBER WATER RESERVE STOP MACHINE STATUS 0 - 255 --DATE OF MANUF--- --------------------- --DATE OF MANUF--- ---------------------...

  • Page 171: Service Programme

    INCANTO 3.Service programme (Easy) 3.1.Test mode Access: Access the service mode by turning on the machine and simultaneously pressing the double expresso and steam buttons. Press Coffee and Steam buttons. Various test functions can be activated in the service mode by activating either the coffee or steam buttons in conjunction with various coffee quantity settings.
  • Page 173 CHAPTER 6 FAULTS Page 1. Faults Saeco International Group REV5 FEB.2005...
  • Page 175 INCANTO S-CLASS 1. Faults: The following table indicates the most common faults, listed by component. Part Fault Does not function (no indicator light) Cold coffee Standby LED lights up continuously Temperature differences No froth Heating remains cold Coffee and expresso LEDs flash continuously Does not function Water instead of coffee...
  • Page 176 6. FAULTS Part Fault Brewing unit malfunctions - does not move to home position Sluggish / obstructed HWS valve does not open (no water or steam dispensing possible) Water drips from steam pipe (with closed valve) Water drips from steam pipe shaft Water leakage from HWS spout Water leakage at joint Varying cup filling volume...
  • Page 177 INCANTO S-CLASS Part Fault Varying coffee quantity Indicator signals need for de- aerating with water tank sufficiently full. Water low indicator lights up (although water tank is not empty) ATTENTION: A defective temperature sensor (KTY) may be responsible for an unexplained functioning mode. Saeco International Group Cause Turbine calcified / other...

  • Page 179: Fault Diagnosis

    FAULT DIAGNOSIS 1. Fault detection (Incanto) 1.1. Machine does not function 1.2. Water Low indicator 1.3. De-aerate indicator 1.4. Coffee Beans Low indicator 1.5. Grinds Container Absent indicator 1.6. Machine does not function (fault LED flashes) 1.7. Brewing unit / Gearmotor obstructed Saeco International Group CHAPTER 7 REV5 FEB.2005...

  • Page 181: Fault Detection (Incanto)

    INCANTO 1. Fault detection (Incanto) Machine does not function Does not function Is there current upstream from the mains filter? Is there current downstream from the Does current flow to fuse inside the Does the current flow to the main switch? KTY defective Electronic system defective?
  • Page 182 7. FAULT DIAGNOSIS 1.2. Water low Water low Is water tank filled? Has float sunk or is jammed? Is magnet old? Is reed sensor defective? Electronic system defective? Page 2/7 Fill water Replace / Remove Replace float Replace reed sensor Replace - END REV.5 FEB.2005 INCANTO...

  • Page 183: De-Aerate Indicator

    INCANTO 1.3. De-aerate indicator Indicator: Water low Can pump activity be detected at a specific time? Is water tank empty? Tank valve faulty (foreign objects)? Is water filter calcified / dirty? Flow meter pulses for hot water supply OK? Check valve plugs Calcifed / Damaged Check brewing unit END Saeco International Group...

  • Page 184: Coffee Beans Low Indicator

    7. FAULT DIAGNOSIS 1.4 Coffee Beans Low indicator Coffee beans low Is coffee bean container empty? Does grinder motor work after start button has been activated? Does coffee dispensing stop after grinding (coffee beans low signal again)? Set coarser grind - Is coffee dispensing complete? Does coffee have enough froth /...

  • Page 185: Grinds Container Absent Indicator

    INCANTO 1.5. Grinds Container Absent indicator Grinds container not detected Is grinds container installed? Can grinds Yesn container be Is the brewing unit in home position? Does brewing unit microswitch function Check if brewing unit is blocked Saeco International Group 7.
  • Page 186 7. FAULT DIAGNOSIS 1.6. Machine does not function (red LED flashes) Does not function (Fault LED flashes) Does the indicator appear again after switching on without activation of the start button? See 1.7 Gears blocked. Page 6/7 Grinder obstructed REV.5 FEB.2005 INCANTO Saeco International Group...
  • Page 187 INCANTO 1.7. Brewing unit blocked / Gears blocked Brewing unit blocked Gearmotor obstructed Do gears move to home position in service mode? Is the noise emission abnormal? Disconnect gearmotor switch Do gears move to home position in service mode? Unscrew water sleeve from brewing unit and remove brewing unit Do gears move to home position in service mode?
  • Page 189 SERVICE SCHEDULE 1. Repairs schedule 2. Service schedule 3. Final test Saeco International Group CHAPTER 8 REPAIRS / REV5 FEB.2005 Page...
  • Page 191 INCANTO 1. Repairs schedule: The repairs schedule, together with the service schedule, lists all relevant activities to be performed in an efficient sequence. Activity Visual check (transport damage) Record of machine data Functional check / Error analysis (test mode) Opening of machine Visual check (leakages) Mechanical systems check (functional test) Defect detection...
  • Page 192 8. REPAIRS / SERVICE SCHEDULE 3. Final test: Test Procedure Cup fill volume 2-3 cups on expresso setting Cup fill volume 2-3 cups on coffee setting Noise emission Froth quantity Carefully froth coffee in cup until froth separates Colour of froth Temperature Measurement of dispensed coffee stream...
  • Page 193 DISASSEMBLY 1. Disassembl 2. Disassembling the electronic system 3. Disassembling 4. Disassembling doser switch fitting 5. Disassembling HWD pipe 6. Disassembling HWD valve 7. Disassembling the grinder 9. Adjusting the grinder 10. Disassemble the instantaneous water heater 11. Disassembling the gears 12.
  • Page 223 CHAPTER 10 CIRCUIT DIAGRAMS Saeco International Group REV5 FEB.2005...
