Subject:

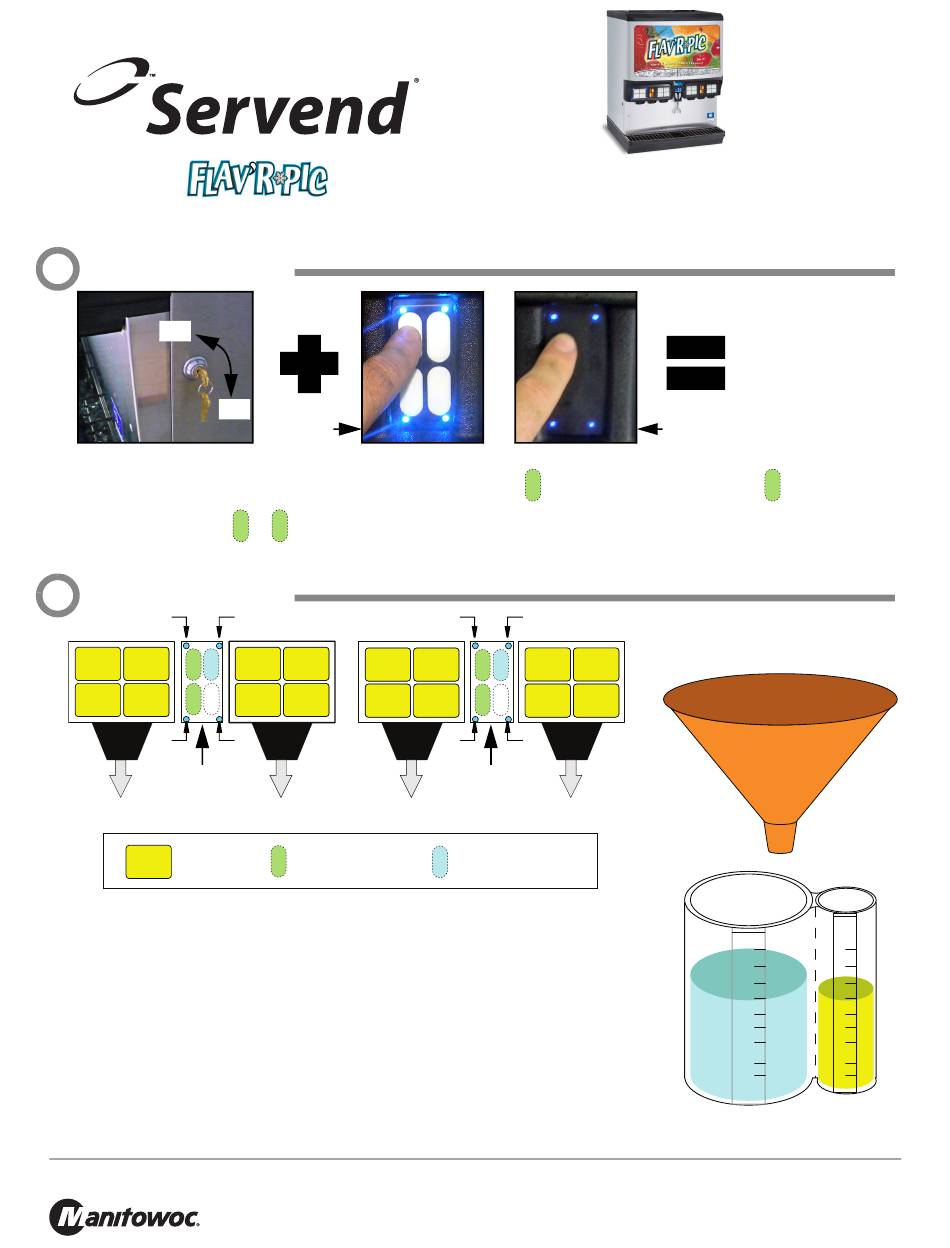

In this setting when a corresponding touch pad is pressed water or syrup will be dispensed for a fixed duration in
order to check your ratios using funnel & standard brix cup.
1
EXTERNAL BRIX MODE
OFF
ON
Key Switch
•
With the key switch still in the "OFF" position, press and hold the F1 key pad button for the left side or F5 for the right while
turning the key switch back to the "ON" position for 3 seconds.
•
Upon releasing the F1 or F5 button the 4 LEDs around the key pad area should now be illuminated. If not illuminated the
unit is not in external brix mode, repeat previous step until successful.
2
CHECKING BRIX
LED
F1
S1
S3
F3
F2 F4
S2
S4
N1
LED
Hidden on Non-Flavor
Shot Units
S1, S2, S3, S4, F1
S5, S6, S7, S8, F2, F3
= Syrup
•
Place the funnel and standard brix cup under the dispense point of the water or syrup
being tested and press its key pad button. (Use the illustration above for reference.) The
water or syrup will be dispensed for a fixed duration in order to check your ratios.
NOTE: Use of a funnel is recommended to direct the syrup and water into the
correct chambers of the cup.
•
Remove the brix cup from the dispenser and tap on the counter 3 times to remove
bubbles. Then place on a level surface. The correct carbonated or non-carbonated
water volume should be even with the syrup volume level + / - 2 bandwidths.
NOTE: If Brix ratio is not within this range, please submit a Service Request. Service will
come to the location and perform the actual brixing of the fountain machine.
Manitowoc Beverage Systems Sellersburg, 2100 Future Drive, Sellersburg, IN 47172, Tel: 812-246-7000, www.manitowocbeverage.com
FRP-250 External Brix Check
Flavor Shot
Key Pad
LED
S5
S7
S12
S6
S8
S11
N3
N4
LED
S9, S10, S11, S12, F6, F7
= Carbonated Water
F1 or F5 Key Pad
LED
LED
F5
S10
S16
S14
F7
F6 F8
S9
S15
S13
N6
LED
LED
Hidden on Non-Flavor
Shot Units
S13, S14, S15, S16, F5
= Non-Carbonated Water
Instructions
External
Hidden
Key Pad
FUNNEL
WATER
SYRUP
Standard Brix Cup
10/13
