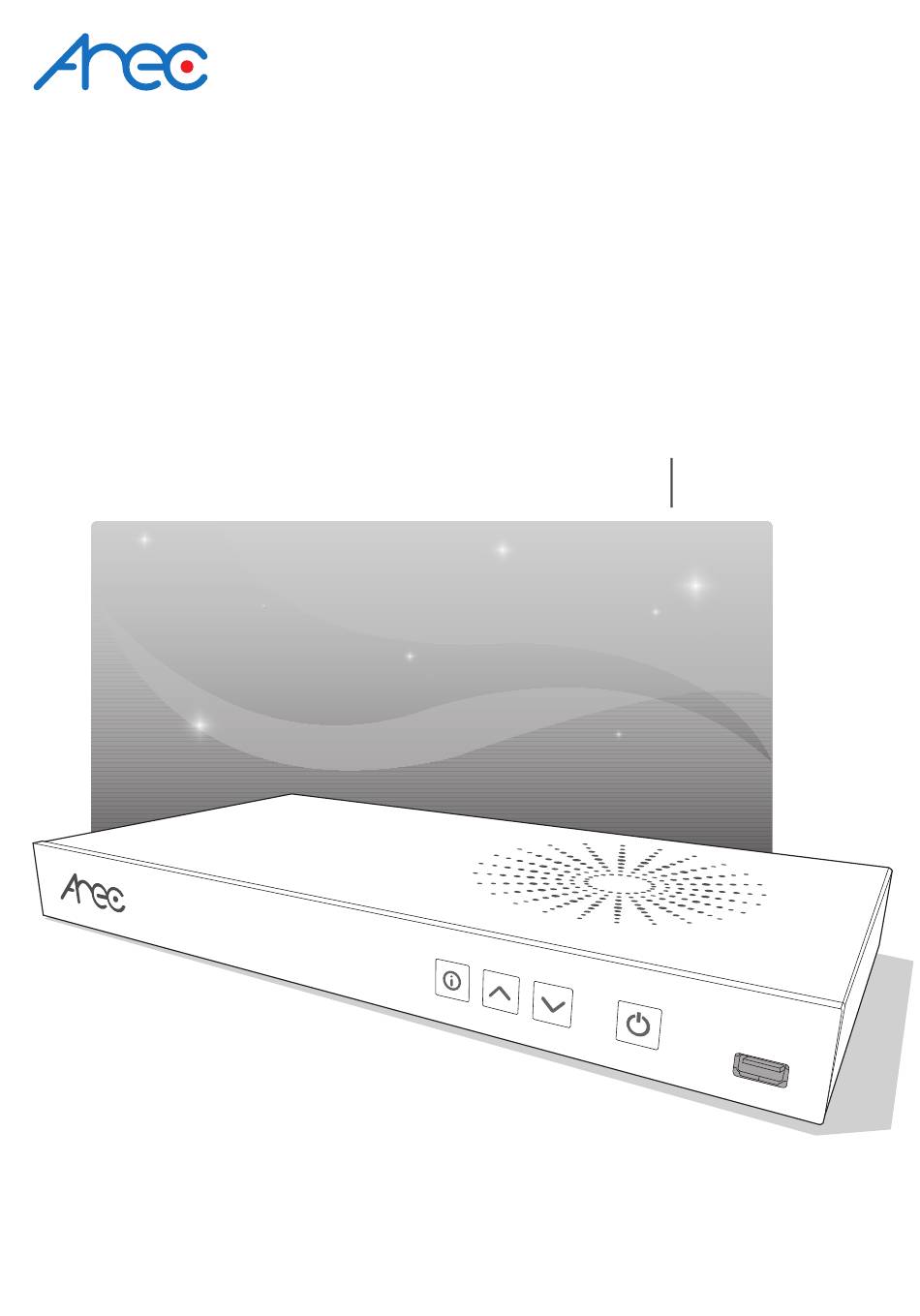

- Page 1 DS-X01 Media Station Quick Installation Guide ENGLISH AREC Inc.© All Rights Reserved 2019. l www.arec.com All information contained in this document is Proprietary...
- Page 2 Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Hereby, AREC Inc., declares that this Media Station is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
- Page 3 DS-X01 Quick Installation Guide CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. – the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,table-cloths, curtains, etc.: –...
-
Page 4: Specifications
DS-X01 Quick Installation Guide Introduction AREC DS-X01 Playout Station can decode IP Streaming directly, making it easy to be viewed on the local display. The IP streaming video sources can be from anywhere via an IP LAN Ethernet connection, including campus studio, real-time lecture seminar at school, live events, streaming from CDNs, video-on-demand content, IP camera viewing for insect observation or environment monitoring, and campus security…... -
Page 5: Product Appearance
Line audio input Audio input Line audio input Audio output Line audio output Back USB port For mouse control DS-X01 menu Network port RJ-45 Ethernet connector for network connection Setting port RJ-45 Ethernet connector for device configuration and control RS-232... - Page 6 DS-X01 Quick Installation Guide Connection Setting PC Power projector Speaker Video output VGA / HDMI Audio output RS-232 Video input VGA / HDMI Line audio input notebook amplifier mouse network document cam mouse...
- Page 7 DS-X01 Quick Installation Guide Accessing the Administrator pages Connect PC to the setting port of Media Station with standard network cable.Open up the browser, and input 192.168.11.254 in the broswer page. Log in Administrator with default username admin and password admin, then entering System Administration webpages.
- Page 8 DS-X01 Quick Installation Guide Setup Step 1: Set up video input name, video source in [ Video inputs ] of [ Media I/O The source can be the video port [ ] with option VGA or HDMI. Select the source by on-screen menu.
- Page 9 DS-X01 Quick Installation Guide Step 2: Set up audio volume in [ Audio ] of [ Media I/O Step 3: Set up date and time of host machine in [ System settings ] of [ System...
- Page 10 DS-X01 Quick Installation Guide The Local On-screen menu After the USB port is connected to the mouse, user can click the menu on the screen. GUI allow user to switch the video source view on the display.
- Page 11 DS-X01 Quick Installation Guide CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Important Security Policy Precautions 1.Please open the product package carefully; we commend you keep this packaging for future transport, storage or maintenance use.
- Page 12 AREC Inc.© All Rights Reserved 2019. l www.arec.com All information contained in this document is Proprietary Made in Taiwan Date : 2019.7.1 Version : 9.0...
