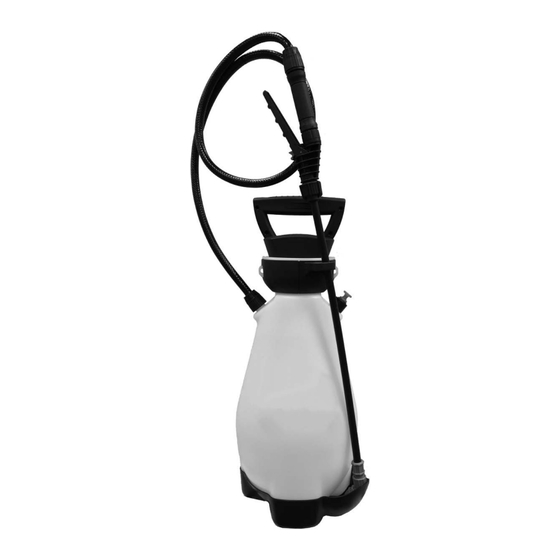

Battery-Powered
Electric Sprayer

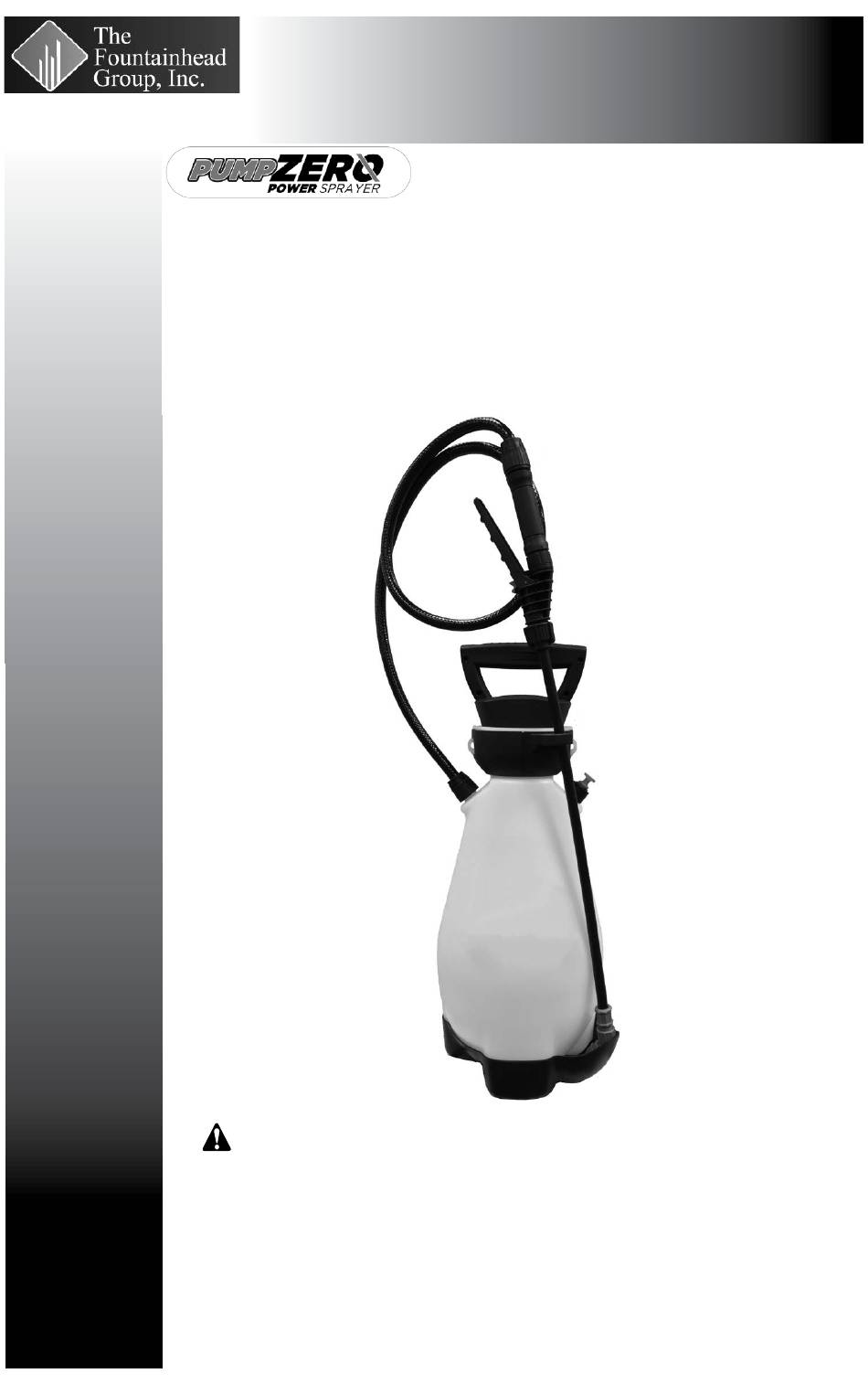

Use and Care Manual
CAUTION: Read and follow all instructions
Do Not Return This Sprayer To The Store
For Help, Information or Parts, Call : 1-800-311-9903
The Fountainhead Group, Inc.
23 Garden St., New York Mills, NY 13417
1-800-311-9903
www.TheFountainheadGroup.com
Manual No. 183994
Rev A: 12/01/18
ECN18-101
5 1/2" X 8 1/2" Booklet
Advertisement
Table of Contents
Related Manuals for Fountainhead PumpZero
Summary of Contents for Fountainhead PumpZero
- Page 1 Use and Care Manual CAUTION: Read and follow all instructions Do Not Return This Sprayer To The Store For Help, Information or Parts, Call : 1-800-311-9903 The Fountainhead Group, Inc. 23 Garden St., New York Mills, NY 13417 1-800-311-9903 www.TheFountainheadGroup.com Manual No.
-
Page 2: Safety Precautions
Batteries, consult your local shipping agent for instructions prior to shipping the Pump. The PumpZero Electric Pump is equipped with an auto-off feature that turns the Pump off after 2 hours of inactivity. This is to prevent the Battery from being drained if the Pump is left on when the Sprayer is not in use. - Page 3 ASSEMBLY INSTRUCTIONS Hose Barb Assemble Hose To Tank IMPORTANT: Do not attempt to heat or alter hose, hose nut, or barb prior to assembly. 1. Align Hose Barb tabs, push Hose Barb into Tank until it stops (See Figure A). 2.
- Page 4 WARNING: RISK OF FIRE, BURNS, OR ELECTRICAL SHOCK. Use Charger only in a dry, dust-free location free from any flammable or combustible liquids or vapors. Use only with Fountainhead Group Char- gers – Other types of Chargers may cause Battery failure resulting in personal injury and damage. Do not short circuit the Charger or Battery terminals.
- Page 5 OPERATING INSTRUCTIONS Filling the Sprayer WARNING: RISK OF DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE FROM IMPROPER CHEM- ICAL USE OR MIXTURE. Never use flammable or combustible liquids, caustics, acids, or hot water in this Sprayer. Spraying flammable or combustible liquids can create combustible fumes that could be ignited by the electrical system in the Sprayer, causing an explosion.
-
Page 6: Low Battery Indicator
OPERATING INSTRUCTIONS CONTINUED 1. The PumpZero Pump must be charged for the Sprayer to operate. See Charging the Pump Internal Battery. 2. Press the Power Button to turn on the Pump and begin pressurizing the Tank. a. The Light on the top should turn green and an audible hum should be heard, indicating the Pump is running and is pressurizing the Tank. -
Page 7: Servicing Instructions
SPRAYER MAINTENANCE CONTINUED Cleaning and Storage Continued: 1. Turn off the Pump by pressing the Power Button. The light on the top of the Pump should turn off. 2. Operate the Pressure Release Valve on the side of the Tank by gently pulling it outward until the air inside the Tank stops flowing out. -
Page 8: Nozzle Maintenance
2. Clean the openings of any obstructions or residue. Do not use sharp tools that could scratch or damage the Nozzle as spray pattern could be affected. PumpZero Pump Maintenance The Pump Zerp Pump does not require regular maintenance beyond charging and normal cleaning. -
Page 9: Troubleshooting
TROUBLESHOOTING TROUBLE LOOK FOR REMEDY Sprayer will not turn on when 1. Battery not charged. Light 1. Charge Pump if no light is ON. Power Button is pressed (no does not turn ON. See Charging the Pump Internal audible hum of the pump.) 2. - Page 10 TROUBLESHOOTING TROUBLE LOOK FOR REMEDY Poor Spray Pattern 1. Tank is not pressurized. 1. Turn on Pump. 2. Nozzle partially clogged. 2. Clean Nozzle. See Nozzle Maintenance. 3. Nozzle damaged. 3. Replace Nozzle. 4. Shut-off clogged. 4. Clean Shut-off. See Shut-off Maintenance.
- Page 11 KITS, PARTS & ACCESSORIES DESCRIPTION Key # Part # Description 184175 PUMP, CHARGER & GASKET 178039V GASKET (REPLACEMENT, VITON) 181845 WAND 14” POLY 181843 WAND 18” POLY 181824 WAND 21” POLY 182112 WAND 21” STAINLESS STEEL 183173 HOSE & SHUTOFF (1& 2 GAL) 183174 HOSE &...
- Page 12 SERVICE KITS, PARTS & ACCESSORIES ARE AVAILABLE BY CONTACTING The Fountainhead Group, Inc. - Customer Service Center Monday - Friday 8 A.M. - 5 P.M., EST Toll Free: 1-800-311-9903 e-mail: Info@TheFGI.com Access online at: www.TheFountainheadGroup.com...
