Overview

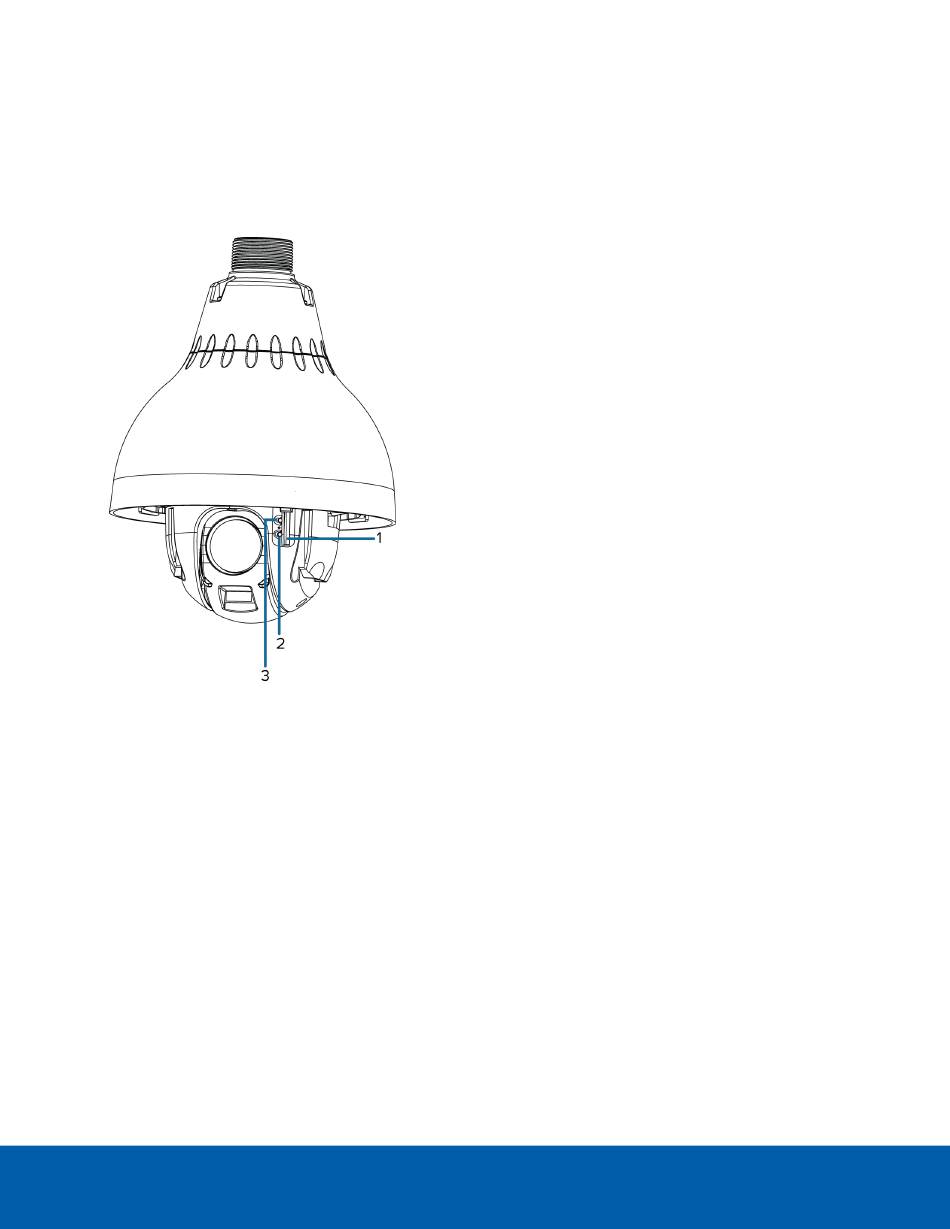

Front View
1. SD card slot
Accepts an SD card for onboard storage.
2. Connection status LED indicator
Provides information about device operation. For more information, see
Indicator on
page 19.
3. Link LED indicator
Indicates if there is an active connection in the Ethernet port.
Overview
Connection Status LED
1
