Table of Contents Important Safety Instructions ........................4 General Information ............................4 Identification of Display ............................ 5 Installation ................................. 6 Operation ................................... 6 Menu Display ............................6 Data Setting ............................7 System Status Icons and Considerations .................... 8 Error Indicator ............................ 8 Telecommunication Port .........................

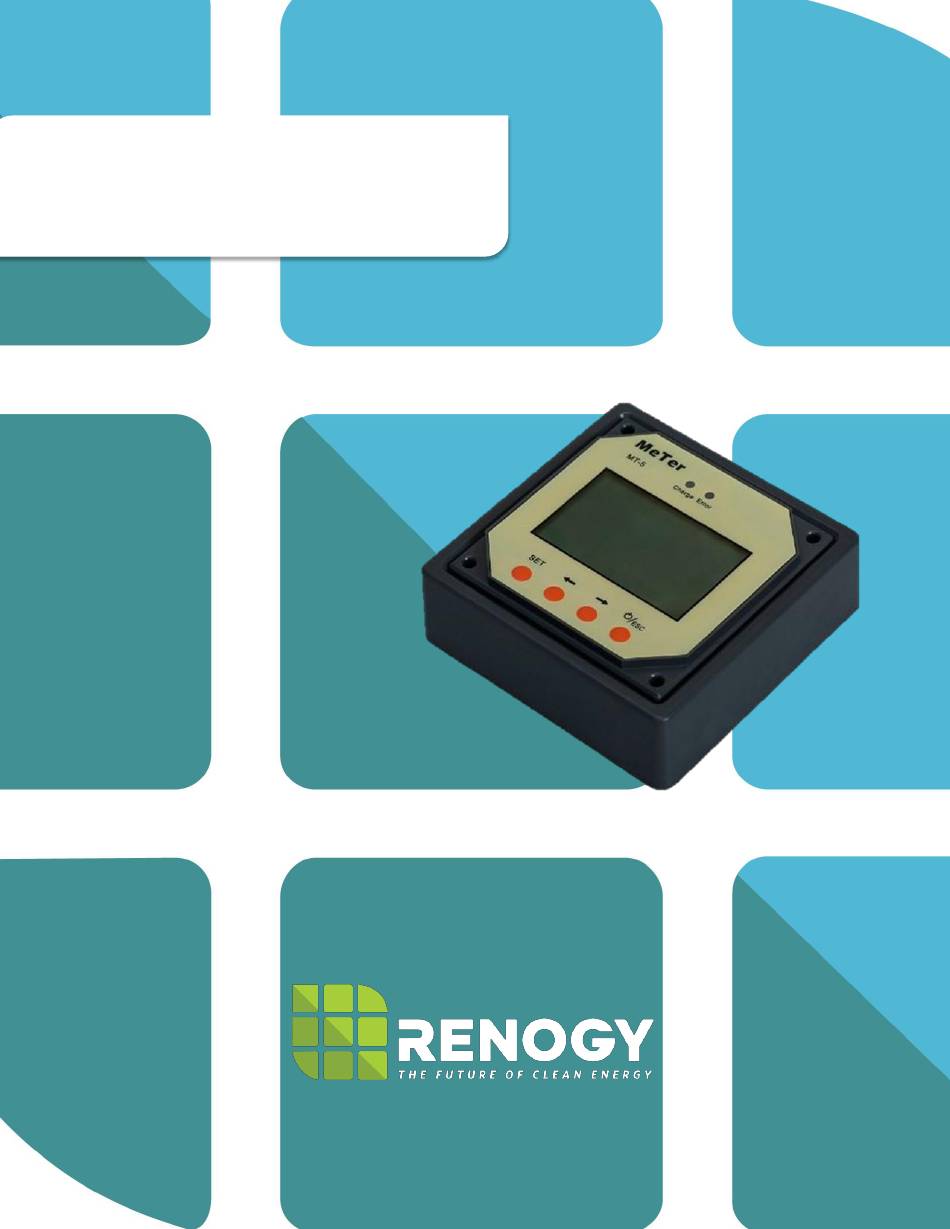

The MT-5 Tracer meter could also be flush mounted on a wall or flat surface using the mounting frame provided. The MT-5 Tracer is supplied with a 6.5 foot long cable and is connected using the RJ45 port. Key Features ...
Identification of Display 1. Load Icon 2. Battery Icon(s)—icon is present if the battery is connected otherwise it will remain flashing. It will demonstrate the battery level in which each bar represents 20% of the battery capacity. 3. Solar Icon 4.
Resolve any issues before installing the meter and the meter cable. The MT-5 can be mounted in two ways: Frame Mount or in a Wall Mount. A plastic mounting frame has been included for the purpose of Frame Mounting. If Wall Mounting then the MT-5 faceplate sits flush with the mounting surface and the body of the meter would be able to rest comfortably in a hole cut-out on the mounting surface.
This screen corresponds with the MPPT charge controller’s Timer 1 and Timer 2 option. The user is able to program the timer from the MT-5 Tracer by choosing the number that corresponds to the desired timer. This information can be found on the manual of the...
3. Solar PV is short circuited. Check connections, disconnect and reconnect. Telecommunication Port When the meter running on individual power or the communication is cut off, the MT-5 will display graphical symbols abnormally. Press any key to stop the display and resume normal activity.
MT-5 since the charge controller powers on the Tracer. LCD display is dim Check the system battery voltage. The MT-5 needs a minimum of 8 V to operate. Verify that the temperature is within range of the LCD operating parameters.
3 year product material and workmanship warranty Renogy brand mounting hardware 1 year product material and workmanship and wiring warranty Other Renogy brand products (LED 1 year product and material workmanship & camping gear) warranty Renogy Firefly 1 year product material warranty...
Page 11
RNG Group Inc. (the “Warrantor”) 14288 Central Ave, Chino, CA 91710 Phone: 909-517-3598 Fax: 888-543-1164 Email: -General Inquiries: Info@renogy.com -Sales Inquiries: sales@renogy.com -Technical Support Inquiries: techsupport@renogy.com -Customer Services Inquiries:customerservice@renogy.com Revision May 2015...
