Summary of Contents for Philips 32HF7445/93

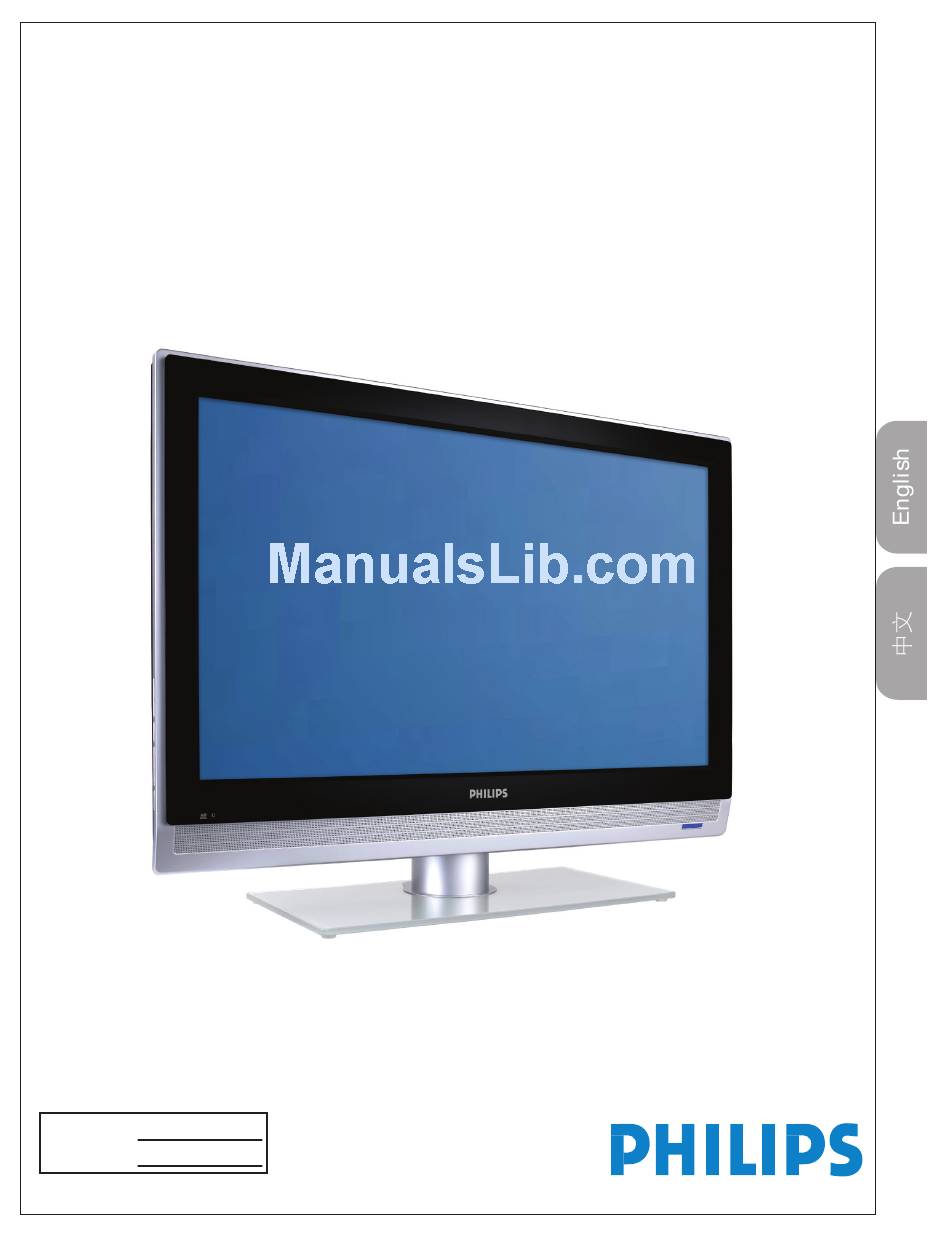

- Page 1 User Manual Quick Start Guide Inside ! 用戶手冊 內附快速使用指南! Model No.: Serial No.: P41TJ020813 1C 32HF7445...
- Page 2 How to make the optimal connection? 如何進行最佳連接? Best HDMI High-Definition Multimedia Interface provides an uncompressed, all-digital audio/video connection. HDMI provides the ultimated connection (Please use a certified HDMI cable.) Better Component Video input Provides superior picture quality by separating the green, blue and red luminance signals. Typically used with red/white audio cables.
- Page 3 HDMI 2 HDMI 1 AC IN AC IN HDMI 1 / HDMI 2 PC IN - Audio input, D-SUB CVI - Component (YPbPr), Audio L/R input CV2 - Component (YPbPr), Audio L/R input AV - Video input, S-video, Audio L/R input SPDIF output Mono Audio out 75 /RF...
-
Page 4: Audio / Video Outputs
Quick start quide Cable Box With RF In / Outputs Antenna TV 分線盒 (帶有RF輸入/輸出) 天線電視 Cable Box With Audio / Video Outputs 分線盒 (帶有聲音/視頻輸出) S-Video Composite Audio/Video Input Cover & Connection 3 Outdoor or Indoor Antenna 室內或室外天線 (Combination VHF/UHF) (VHF/UHF組合) 電視... -
Page 5: Component Video Input
VCR, DVD Player, Or Other Devices With RCA Connectors VCR, DVD播放機或帶有 RCA 連接器的其它設備 S-Video Composite Audio/Video Input DVD Player Or Other Video Devices With Component Video Connectors DVD播放機或其它帶有 Component視頻連接器 的視頻設備 Component Video Input Cover & Connection 4 VIDEO 8 AUDIO S-VIDEO SPDIF... -
Page 6: Hdmi Connector
PC (Monitor) Connections PC (顯示器)連接 AV Button AV按鍵 DVD Player With HDMI Connector 帶有HDMI 連接器的 DVD播放機 HDMI Cover & Connection 5 D-SUB CVI 1 AUDIO PC IN CVI 2 Computer 計算機 *Use AV button on the remote control to select PC to use your LCD TV as a PC monitor. - Page 7 Congratulations on your purchase, and welcome to the “family!” Dear PHILIPS product owner: Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. We’ll do everything in our power to keep you happy with your purchase for many years to come.
-
Page 8: Read Before Operating Equipment
Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli- fiers) that produce heat. -
Page 9: Precaution
Precaution ADDITIONAL SAFETY PRECAUTIONS • ENSURE that LCD TV stand is tightened properly to the set on the right way of tightening of the screw of the stand to the set. Improper tightening of screw may render the set unsafe. •... -
Page 10: Table Of Contents
Contents Care of the screen See Tips, p. 20 End of life directives - Recycling Philips has paid a lot of attention to producing an environmentally friendly product. Your new TV contains several materials that can be recycled for new uses. At the end of its life, specialized companies can dismantle and recycle this set. -
Page 11: Preparation
Refer to specification page 21 for detail. Caution: Installing the TV requires special skills that should only be performed by qualified personnel. You should not attempt to do the work yourself. Philips bears no responsibility for improper mounting or mounting that results in accident or injury. -
Page 12: Buttons On The Tv
Buttons on the TV Should your remote be lost or broken you can still change some of the basic settings with the control buttons on your TV. Press: •the button to switch the TV on or off. •the + VOLUME -button to adjust volume; •the + PROGRAM -buttons to select the TV channels or sources. -
Page 13: To Use The Menus
To use the menus Accessing the SETUP menu When the set is in the HIGH SECURITY mode, the SETUP menu can be accessed only by the Institutional Set-up Remote Control (RC2573) by pressing the option. When the set is in the STANDARD SECURITY mode, the SETUP menu may be accessed with the standard guest remote control (RC2887) by a sequence of commands (3 1 9 7 5 3 MUTE). -
Page 14: Setup Menu Items
AUTO INSTALL TV > SYSTEM AUTO 1. SP-SPI and SP-I2C refers to the Philips communication protocols that are used in conjunction with the Data 1 (RJ12) or/and PROTECTION FREQUENCY 184.2500 > Data 2 (RJ45) connectivity to an external STB or Smart Card Xpress Box. -
Page 15: Channel Installation
Channel Installation In the CHANNEL INSTALLATION sub-menu, channel settings can be set. CHANNEL INSTALL CHANNEL TV 1 INPUT TUNER SYSTEM AUTO FREQUENCY 184.2500 > LABEL ) > STORE > FINE TUNE MUTE NONE AUTO INSTALL TV > PROTECTION • INPUT: The “Input” menu item selects the desired input source that will be assigned to the program. Possible values are Tuner, AV, Side AV, CVI 1, CVI 2, PC-A, HDMI 1 and HDMI 2. -
Page 16: Video Adjustment
PROTECTION Configuration In the Configuration menu, various settings and features of the TV can be adjusted. CONFIGURATION SWITCH ON/OSD > PICTURE/SOUND > SECURITY > CONTROL > FEATURES > IN PC mode, there is one more item. VIDEO ADJUSTMENT: • HORIZONTAL: Adjust the horizontal placement of the picture VERTICAL: Adjust the vertial placement of the picture PHASE: Eliminates the horizontal interfering lines. -
Page 17: Picture And Sound Settings
STANDBY: TV will be automatically switched to STANDBY mode (even if the last status was ON) whenever the mains power is turned ON or resumed after a power interruption. SWITCH ON/OSD ON: Similar function as “FORCED ON” but the remote control STANDBY key function is enabled when TV is set to this mode. WELCOME MESSAGE >... -
Page 18: Control Settings
Control settings In this sub menu, the CONTROL settings of the TV can be configured. CONTROL AUDIO/VIDEO MUTE STEP TUNING DIGIT TIMEOUT MIN VOLUME MAX VOLUME SMARTPOWER STEP TUNING: If YES is selected, TV programs (1 to 9) are tuned immediately when a digit is pressed. If NO is •... -
Page 19: Remote Control Keys
Remote control keys Note: Pressing most buttons once will activate the assigned function. Pressing a second time will de-activate it. When a button enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list. The list will be removed automatically after six seconds or press MENU to remove immediately. -
Page 20: Teletext
Teletext Teletext is an information system broadcast available in certain channels. In some countries, it also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language (cable networks, satellite channels, etc.). ALARM PAY TV INFO RADIO... -
Page 21: Picture Formats
Picture Formats The pictures you receive may be transmitted in 16:9 format (wide screen) or 4:3 format (conventional screen). 16:9 pictures sometimes have a black band at the top and bottom of the screen (letterbox format). This function allows you to optimize the picture display on screen. -
Page 22: Wireless Smart Loader
Wireless Smart Loader The Philips Wireless Smart-Loader 22AV1120/00 and 22AV1135/00 are installation tools especially designed for easy and fast installation of Philips Institutional TV’s. Preparation Make sure that the 3 R6/AA sized batteries are placed correctly in the battery compartment of the Wireless Smart-Loader. -
Page 23: Problems And Solutions
> A number display shows from 1~100 the percentage of memory storage progress from the Wireless Smart-Loader to the TV (100 = fully loaded). SMARTLOADER TO TV |||-------- ## > When data transfer is completed, ## is “100”, the following menu appears for 3 seconds: TV READY >... -
Page 24: Trouble Shooting Tips
Trouble Shooting Tips Symptoms Items to Check and Actions to follow “Ghost” or double • This may be caused by obstruction to the antenna due to high rise buildings or hills. images Using a highly directional antenna may improve the picture. No power •... -
Page 25: Glossary
SDTV: 576i - The picture is 720x576 pixels, 576p - The picture is 720x576 pixels. HDTV: 720p - The picture is 1280x720 pixels, 1080i - The picture is 1920x1080 pixels, SPDIF SPDIF (Sony and Philips Digital Interconnect Format) is highly recommended for high quality digital sound output. Note: SPDIF only supports at HDMI source. -
Page 26: Care And Cleaning
Care And Cleaning WARNING concerning stationary images on the TV Screen: Do not leave fixed images on the screen for extended periods of time. This can cause uneven aging of the LCD panel. Normal use of the TV should involve viewing of programs that have constantly moving or changing images. Do not leave moving images on screen for extended periods of time. -
Page 27: Weight And Dimensions
Specification - TV 32HF7445 ON SCREEN DISPLAY ENGLISH, CHINESE, MELAYU LANGUAGE CONNECTIVITY AC IN Bottom HDMI 1 / HDMI 2 PC IN - Audio input, D-Sub CVI 1 - Component video (YPbPr), Audio L/R input CVI 2 - Component video (YPbPr), Audio L/R input AV - Video input, S-video, Audio L/R input SPDIF output 8Ω...
