Chapter I Overview

1.1 Introduction

TWC-711TMB tire changer with assisting swing arm（figure 1） is one of the advanced tire changer series in the world,
integrated with demounting, mounting and inflating functions. It adopts popular international dwarf cabinet structure with
good reliability, reasonable overall structure and the high degree of mechanization.
1. Inflating control pedal
4. Turntable control pedal
7. Hexagon rod
10. Hexagon rod adjusting knob
13. Air receiver barometer
16. Discharging button
19. Turntable cylinder

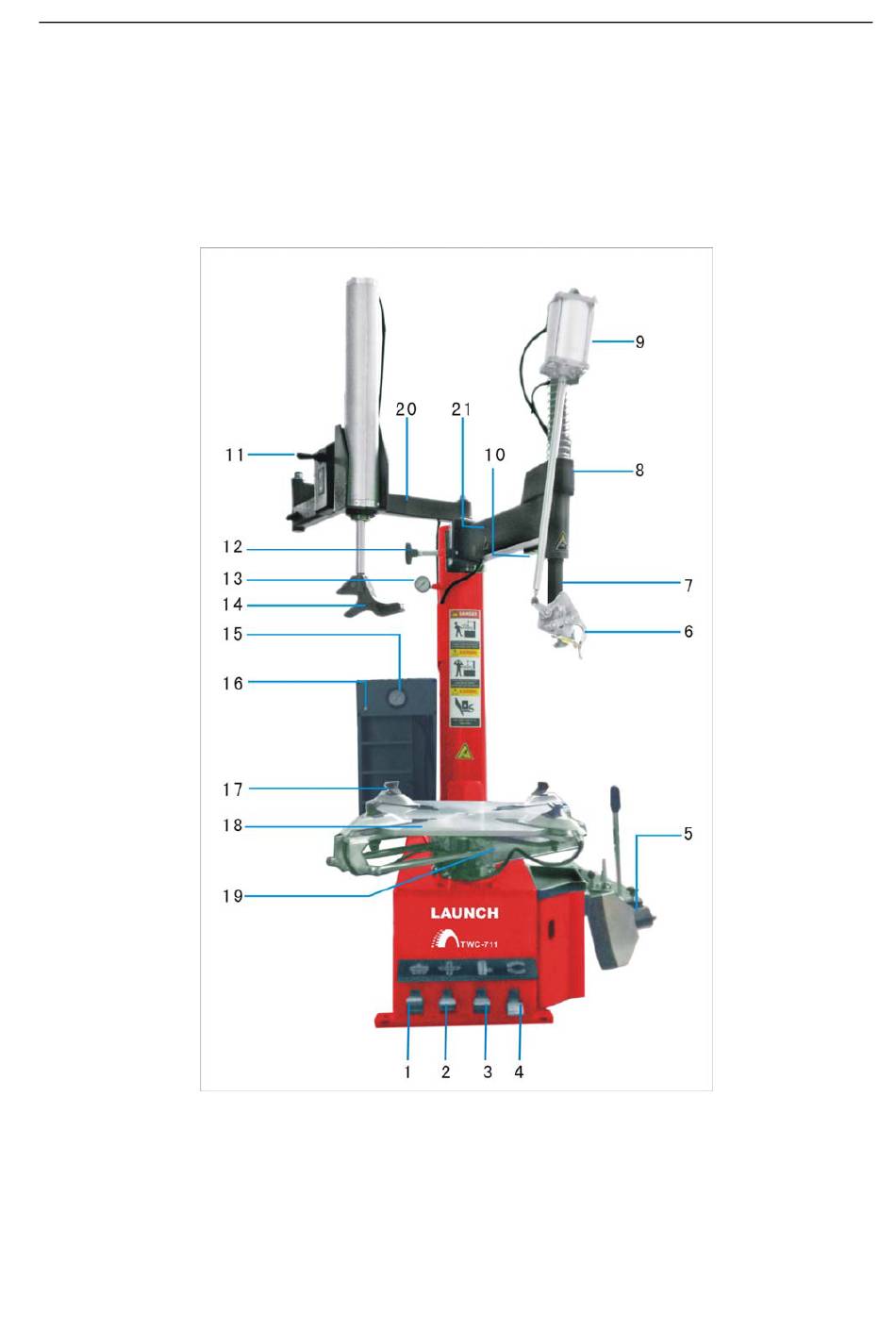

Figure 1
2. Clamping pedal
5. Splitter
8. Hexagon locking handle
11. Assisting arm operation handle
14. Assisting arm
17. Jaw
20. Assisting swing arm
1
TWC-711TMB Tire Changer User's Manual
3. Splitter control pedal
6. Pneumatic tire changer hook
9. Pneumatic control handle
12. Lateral rocker positioning knob
15. Barometer
18. Turntable
21. Demounting head swing arm
