Philips CEM200/55 User Manual

Philips car entertainment system cem200 mp3/wma-cd playback.
Hide thumbs

Advertisement

Register your product and get support at
www.philips.com/welcome
CEM200
EN User manual

Advertisement

Table of Contents

   Also See for Philips CEM200/55

   Related Manuals for Philips CEM200/55

   Summary of Contents for Philips CEM200/55

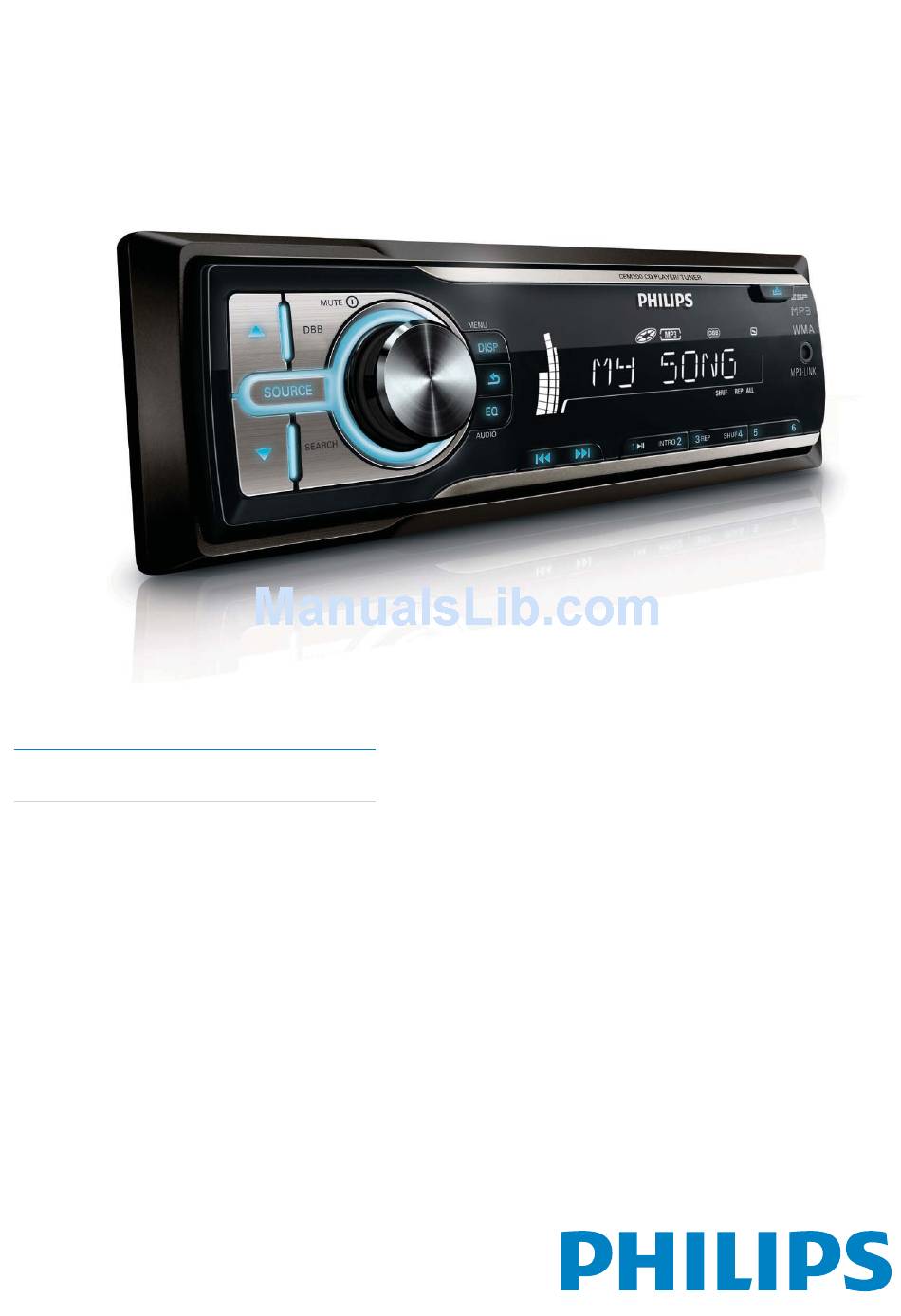

  • Page 1 Register your product and get support at www.philips.com/welcome CEM200 EN User manual...
  • Page 2: Table Of Contents

    Contents 1 Important Safety Notice 2 Your car audio system Introduction What’s in the box Overview of the main unit Overview of the remote control 3 Get started Install the car audio Install remote control battery Turn on Set clock 4 Listen to radio Tune to a radio station Store radio stations in memory...
  • Page 3: Important

    1 Important Safety Read and understand all instructions before you use your apparatus. If damage is caused by failure to follow instructions, the warranty does not apply. This apparatus is designed for negative ground (earth) 12 V DC operation only. To ensure safe driving, adjust the volume to a safe and comfortable level.
  • Page 4 Philips Consumer Lifestyle may void the user’s authority to operate the equipment. 2009 © Koninklijke Philips Electronics N.V. All rights reserved.
  • Page 5: Your Car Audio System

    2 Your car audio system Congratulations on your purchase, and support that Philips offers, register your product at www.philips.com/welcome. Introduction With the in-car audio system, you can enjoy your drive while you listen to: FM or AM (MW) radio Audio from CD or MP3 disc Audio from external devices What’s in the box...
  • Page 6: Overview Of The Main Unit

    Overview of the main unit Select tuner band. Select MP3/WMA folder. Scroll up or down menu. b DBB Turn on or off Dynamic Bass Boost (DBB) sound. c SOURCE Select audio source. /MUTE Turn the unit on or off. Adjust volume. Enter characters for search.
  • Page 7: Overview Of The Remote Control

    Select preset station no. 6 Select preset station no. 5 l SHUF, 4 Select preset station no. 4 m 3, REP Set repeat play mode. Select preset station no. 3 n INTRO, 2 Turn intro play on or off. Select preset station no. 2 o 1, Start play Pause or resume play.
  • Page 8: Get Started

    Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. Write the numbers here: Model No.
  • Page 9: Front Panel

    Note on the power supply lead (yellow) When you connect other devices to this apparatus, ensure that the rating of the car circuit is higher than the total fuse value of all the connected devices. Notes on speaker connection Never connect speaker wires to the metal body or chassis of the car.
  • Page 10 Connector Connect to 1 ANTENNA Antenna 2 REAR LINE OUT R Rear right speaker 3 REAR LINE OUT L Rear left speaker Connection: for cars without ISO connectors Caution Be sure to connect the black ground (earth) illustrated, if applicable. Connector Connect to 1 ANTENNA...
  • Page 11: Mount In The Dashboard

    The pin arrangement for the ISO connectors depends on the type of vehicle you drive. Make sure to make the proper connections to prevent damage to the unit. Mount in the dashboard If the car does not have an on-board drive or navigation computer, disconnect the negative terminal of the car battery.
  • Page 12: Install Remote Control Battery

    Place the supplied rubber cushion over the end of the mounting bolt. Slide the unit into the dashboard until you hear a click sound. Reconnect the negative terminal of the car battery. Attach the front panel Attach the trim plate. Insert the right side of the panel in the chassis until it is correctly engaged.
  • Page 13: Turn On

    To replace the remote control battery: Open the battery compartment. Insert 1 CR2025 batteries with correct polarity (+/-) as indicated. Close the battery compartment. Turn on Press to turn on the unit. To turn off the unit, press seconds. Set clock Press MENU/DISP for 3 seconds.
  • Page 14: Store Radio Stations In Memory

    Store radio stations in memory You can store up to 6 stations in each band. Store staions automatically Press SEARCH » The six strongest stations of the selected band are saved in preset channel automatically: FM1,FM2,FM3 1-6, AM1, AM2. Store staions manually Tune to a station that you want to store.
  • Page 15: Control Play

    Control play To select a folder, press To skip to the previous/next track, press To search backward/forward rapidly within the current track, press for 3 seconds. To pause, press 1, To resume play, press 1, Search for an MP3/WMA track Press SEARCH.
  • Page 16: Adjust Sound

    6 Adjust sound Adjust volume Turn clockwise/anticlockwise to increase/decrease volume. Mute You can turn off the sound of your audio. During play, press MUTE . To turn the sound back on, press MUTE again. Turn Dynamic Bass Boost (DBB) on/off Press DBB, the current setting is displayed: »...
  • Page 17: Adjust System Settings

    7 Adjust system settings Turn demo mode on/off When demo mode is on, when the unit is idle for more than 2 minutes, all functions are displayed. Press MENU/DISP for 3 seconds. Press repeatedly to until [DEMO] is displayed. » The screen shows current Demo mode setting.
  • Page 18: Select Shock-protect Setting

    Select shock-protect setting You can select the shock protection setting, depending on the stability of your car and the condition of the road. Press MENU/DISP for 3 seconds. Press repeatedly until [ESP] is displayed. Turn to select a setting: [ESP 10 S]: select this when the road is smooth and there are few bumps.
  • Page 19: Replace Fuse

    Replace the fuse. Note If the new fuse gets damaged again, there may be an internal malfunction. Consult your Philips dealer. Remove the unit You can remove the unit from the dashboard. F U S E 1 5 A F U S E 1 5 A Detach the front panel.
  • Page 20: Product Information

    If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www. philips.com/support). When you contact Philips, ensure that your apparatus is nearby and the model number and serial number are available.
  • Page 21: Glossary

    The CD skips tracks Ensure that the CD is not damaged or dirty. Ensure that random mode is deactivated. Disc cannot be ejected Press and hold . Preset stations lost. Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.
  • Page 25 © 2009 Koninklijke Philips Electronics N.V. All rights reserved. CED200_55_UM_V1.1...
