Philips CEM2000/55 User Manual

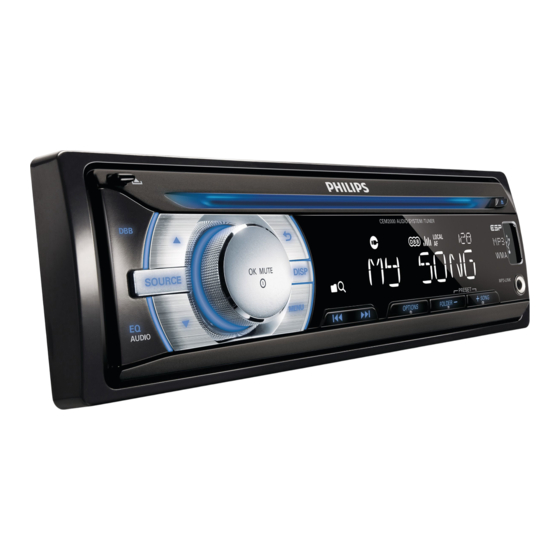

Philips car audio system cem2000 usb cd.
Hide thumbs

Advertisement

Register your product and get support at
CEM2000
www.philips.com/welcome
EN User manual

Advertisement

Table of Contents

   Also See for Philips CEM2000/55

   Related Manuals for Philips CEM2000/55

   Summary of Contents for Philips CEM2000/55

  • Page 1 Register your product and get support at CEM2000 www.philips.com/welcome EN User manual...
  • Page 2: Table Of Contents

    Contents 1 Important Safety Notice 2 Your car audio system Introduction What’s in the box Overview of the main unit Overview of the remote control 3 Get started Install the car audio Install remote control battery Turn on Set clock 4 Listen to radio Tune to a radio station Store radio stations in memory...
  • Page 3: Important

    1 Important Safety Read and understand all instructions before you use your apparatus. If damage is caused by failure to follow instructions, the warranty does not apply. This apparatus is designed for negative ground (earth) 12 V DC operation only. To ensure safe driving, adjust the volume to a safe and comfortable level.
  • Page 4 Philips Consumer Lifestyle may void the user’s authority to operate the equipment. 2010 © Koninklijke Philips Electronics N.V. All rights reserved.
  • Page 5: Your Car Audio System

    2 Your car audio system Congratulations on your purchase, and support that Philips offers, register your product at www.philips.com/welcome. Introduction With the in-car audio system, you can enjoy your drive while you listen to: FM or AM (MW) radio Audio from CD or MP3 disc...
  • Page 6: Overview Of The Main Unit

    Overview of the main unit a DBB Turn on or off Dynamic Bass Boost (DBB) sound. Unlock the panel d Turn to adjust Encoder volume. Select tuner band. Select MP3/WMA folder. Scroll up menu.
  • Page 7: Overview Of The Remote Control

    OK//MUTE Turn the unit on or off. Mute or restore volume. Return to previous menu. Eject disc. h USB socket. i MP3 LINK External device socket j +SONG Preset up Manual store Song search k FOLDER - Preset Down Manual Store Folder search l OPTIONS/CLOCK enter into Options menu...
  • Page 8 d +/PRESET Preset up. e AUDIO Access audio setting menu. Tune to a radio station Skip track. Fast backward/forward playback g OK h MENU Access system menu. /PWR/ Turn the unit on or off. Mute or restore volume. Select tuner band. Scroll up/down menu.
  • Page 9: Get Started

    Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. Write the numbers here: Model No.
  • Page 10 Connection: for cars with ISO connectors Caution Ensure that all loose leads are insulated with electrical tape. Pull out the ISO connectors from car dashboard and connect them to the bigger end of the supplied standard connector. Connect the other end of the supplied standard connector to the unit.
  • Page 11 Cut off the bigger end of the supplied standard connector. Check the car’s wiring carefully and connect them to the supplied standard connector. Green/black strip Left speaker White/black strip Left speaker Gray/black strip Purple/black strip Right speaker Ignition key +12V DC when ON/ACC BLUE Motor/electric antenna...
  • Page 12 Ensure that car dashboard opening is within these measurements: Install the sleeve into the dashboard and Note but by supplied screws. Place the supplied rubber cushion over the end of the mounting bolt. Slide the unit into the dashboard until you hear a click sound.
  • Page 13: Install Remote Control Battery

    Attach the front panel Attach the trim plate. Insert the right side of the panel in the chassis until it is correctly engaged. Press the left side of the panel and point the left hole at the left pillar. Release the panel to engage the left side. Install remote control battery Caution Risk of explosion! Keep batteries away from...
  • Page 14: Listen To Radio

    4 Listen to radio Tune to a radio station Press SOURCE repeatedly to select Tuner. Press to select band: [FM1], [FM2], [FM3], [AM1], or [AM2] . Press to tune to a radio station manually. » The radio station is broadcast. »...
  • Page 15: Play A Disc

    5 Play audio files Note Ensure that the disc or device contains playable Play a disc Note You cannot play CDs encoded with copyright protection technologies. You can play commercially available audio CDs and these discs: CD-Recordables (CD-R) CD-Re-writables (CD-RW) MP3 CDs WMA CDs Note...
  • Page 16: Control Play

    Control play Folder Search Press FOLDER - to enter folder search mode. Rotate Encoder to select a folder. Song Search Press +SONG to enter song search mode. Rotate Encoder to select a track. To skip to the previous/next track, press To search backward/forward rapidly within the current track, press for 3 seconds.
  • Page 17: Intro Play

    Intro play During play, press OPTIONS repeatedly until [INT] is displayed: Rotate encoder knob to select a setting [INT ON] seconds of each track have been played, play stops. [INT OFF] : Cancel intro play and start normal play. Connect external sound source Connect the external sound source to MP3 LINK socket with a 3.5 mm cable.
  • Page 18: Adjust Sound

    6 Adjust sound Adjust volume Turn /OK/MUTE clockwise/ anticlockwise to increase/decrease volume. Mute You can turn off the sound of your audio. During play, press /OK /MUTE. To turn the sound back on, press /OK/ MUTE again. Turn Dynamic Bass Boost (DBB) on/off Press DBB, the current setting is displayed:...
  • Page 19: Adjust System Settings

    7 Adjust system settings Turn demo mode on/off When demo mode is on, when the unit is idle for more than 2 minutes, all functions are displayed. Press MENU. Press repeatedly to until [DEMO] is displayed. » The screen shows current Demo mode setting.
  • Page 20: Additional Information

    FUSE 15A FUSE 15A FUSE 15A Note If the new fuse gets damaged again, there may be an internal malfunction. Consult your Philips dealer. Remove the unit You can remove the unit from the dashboard. Detach the front panel. Pull out the unit by using the removal...
  • Page 21: Product Information

    9 Product information Note Product information is subject to change without prior notice. Power supply 12 V DC (11 V - 16 V), negative ground Fuse 15 A Suitable speaker 4 - 8 impedance Maximum power output 45 W x 4 channels Continuous power 22 W x 4 RMS output...
  • Page 22: Troubleshooting

    If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www. philips.com/support). When you contact Philips, ensure that your apparatus is nearby and the model number and serial number are available.
  • Page 23: Glossary

    11 Glossary system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD. WMA (Windows Media Audio) An audio format owned by Microsoft, is a part of Microsoft Windows Media technology.
  • Page 24 © 2010 Koninklijke Philips Electronics N.V. All rights reserved. Document order number: CEM2000_55_UM_V1.0...
