Register your product and get support at
EN

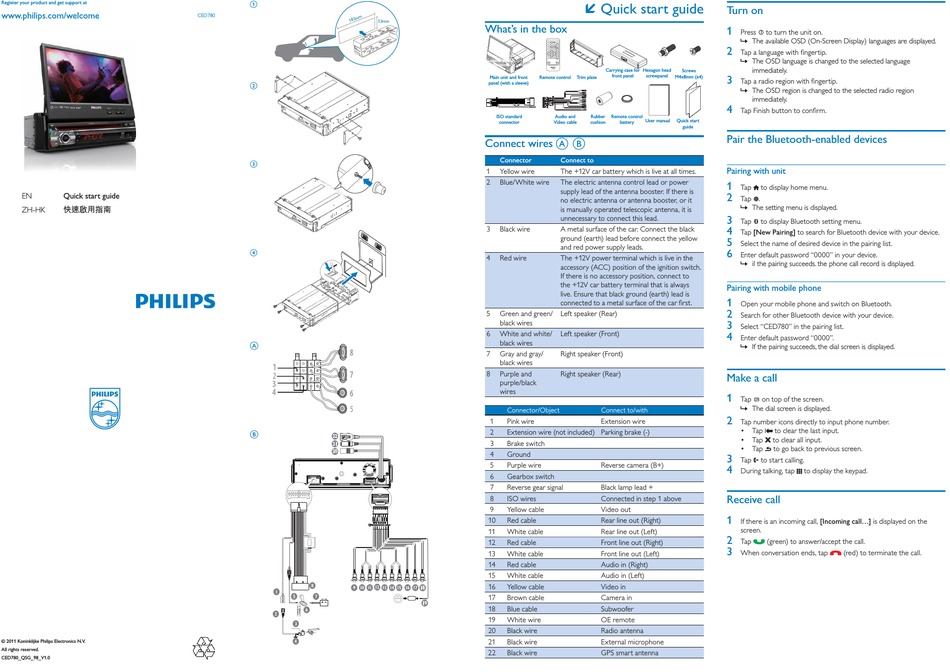

Quick start guide

ZH-HK
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
CED780_QSG_98_V1.0
a
CED780
53mm
b
c
d
A
B
Á Quick start guide
What's in the box
Carrying case for Hexagon head
front panel screwpanel
Main unit and front Remote control Trim plate
panel (with a sleeve)
ISO standard Audio and Rubber Remote control
User manual
connector Video cable cushion battery
A B
Connect wires
Connector Connect to
1 Yellow wire The +12V car battery which is live at all times.
2 Blue/White wire The electric antenna control lead or power
supply lead of the antenna booster. If there is
no electric antenna or antenna booster, or it
is manually operated telescopic antenna, it is
unnecessary to connect this lead.
3 Black wire A metal surface of the car. Connect the black
ground (earth) lead before connect the yellow
and red power supply leads.
4 Red wire The +12V power terminal which is live in the
accessory (ACC) position of the ignition switch.
If there is no accessory position, connect to
the +12V car battery terminal that is always
live. Ensure that black ground (earth) lead is
FRQQHFWHG WR D PHWDO VXUIDFH RI WKH FDU ÀUVW
5 Green and green/ Left speaker (Rear)
black wires
6 White and white/ Left speaker (Front)
black wires
7 Gray and gray/ Right speaker (Front)
black wires
8 Purple and Right speaker (Rear)
purple/black
wires
Connector/Object Connect to/with
1 Pink wire Extension wire
2 Extension wire (not included) Parking brake (-)
3 Brake switch
4 Ground
5 Purple wire Reverse camera (B+)
6 Gearbox switch
7 Reverse gear signal Black lamp lead +
8 ISO wires Connected in step 1 above
9 Yellow cable Video out
10 Red cable Rear line out (Right)
11 White cable Rear line out (Left)
12 Red cable Front line out (Right)
13 White cable Front line out (Left)
14 Red cable Audio in (Right)
15 White cable Audio in (Left)
16 Yellow cable Video in
17 Brown cable Camera in
18 Blue cable Subwoofer
19 White wire OE remote
20 Black wire Radio antenna
21 Black wire External microphone
22 Black wire GPS smart antenna
Turn on
1
Press to turn the unit on.
» The available OSD (On-Screen Display) languages are displayed.
2
7DS D ODQJXDJH ZLWK ÀQJHUWLS
» The OSD language is changed to the selected language
immediately.
Screws
M4x8mm (x4)
3
7DS D UDGLR UHJLRQ ZLWK ÀQJHUWLS
» The OSD region is changed to the selected radio region
immediately.
4
7DS )LQLVK EXWWRQ WR FRQÀUP
Quick start
guide
Pair the Bluetooth-enabled devices
Pairing with unit
1
Tap to display home menu.
2
Tap .
» The setting menu is displayed.
3
Tap to display Bluetooth setting menu.
4
Tap [New Pairing] to search for Bluetooth device with your device.
5
Select the name of desired device in the pairing list.
6
Enter default password "0000" in your device.
» iI the pairing succeeds. the phone call record is displayed.
Pairing with mobile phone
1
Open your mobile phone and switch on Bluetooth.
2
Search for other Bluetooth device with your device.
3
Select "CED780" in the pairing list.
4
Enter default password "0000".
» If the pairing succeeds, the dial screen is displayed.
Make a call
1
Tap on top of the screen.
» The dial screen is displayed.
2
Tap number icons directly to input phone number.
‡ Tap to clear the last input.
‡ Tap to clear all input.
‡ Tap to go back to previous screen.
3
Tap to start calling.
4
During talking, tap to display the keypad.
Receive call
1
If there is an incoming call, [Incoming call...] is displayed on the
screen.
2
Tap (green) to answer/accept the call.
3
When conversation ends, tap (red) to terminate the call.
