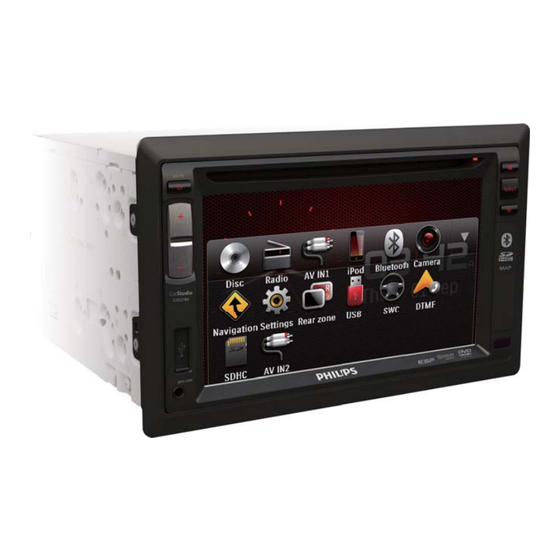

Philips CID2780/00 Quick Start Manual

Philips car entertainment system cid2780
Hide thumbs

Advertisement

Quick Links

Register your product and get support at
CID2780
www.philips.com/welcome
Quick Start Guide
Install
Enjoy
Install
1
c
2
3
4
c
3
Ensure that the car dashboard opening is
b
within these measurements:
Caution
Since the unit cannot be used if the
Use of controls or adjustments or performance of
dashboard opening's slant angle is above
procedures other than herein may result in hazardous
20 degrees: ensure that the horizontal
radiation exposure or other unsafe operation.
slant of the car dashboard opening is
between 0 and 20 degrees.
Always follow the instructions in this chapter in
4
Slide the unit into the dashboard, until a click
sequence.
c
sound is heard.
5
d
Install the car audio
Attach the trim plate.
6
Reconnect the negative terminal of the car
These instructions are for a typical installation.
battery.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground (earth) 12 V DC
operation only.
Always install this unit in the car dashboard. Other
locations can be dangerous as the rear of the unit heats
up during use.
To avoid short-circuit: before you connect, ensure that
the ignition is off.
Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
Ensure that all loose leads are insulated with electrical
Philips
tape.
Ensure that the leads do not get caught under screws or
in moving parts (e.g. seat rail).
Ensure that all ground (earth) leads are connected to a
common ground (earth) point.
Use only the supplied mounting hardware for a safe and
12 V
secure installation.
,PSURSHU IXVHV FDQ FDXVH GDPDJH RU ÀUH :KHQ \RX
need to change the fuse, consult a professional.
1
If the car does not have an on-board drive or
navigation computer, disconnect the negative
terminal of the car battery.
If you disconnect the car battery in a car
that has an on-board drive or navigation
computer, the computer may lose its
memory.
If the car battery is not disconnected, to
avoid a short-circuit, ensure that bare
wires do not touch each other.
1
2
Check the car's wiring carefully, then to make
the connections as a.
2
a
.
3
b
20
0
20
4
c
5
d
6
