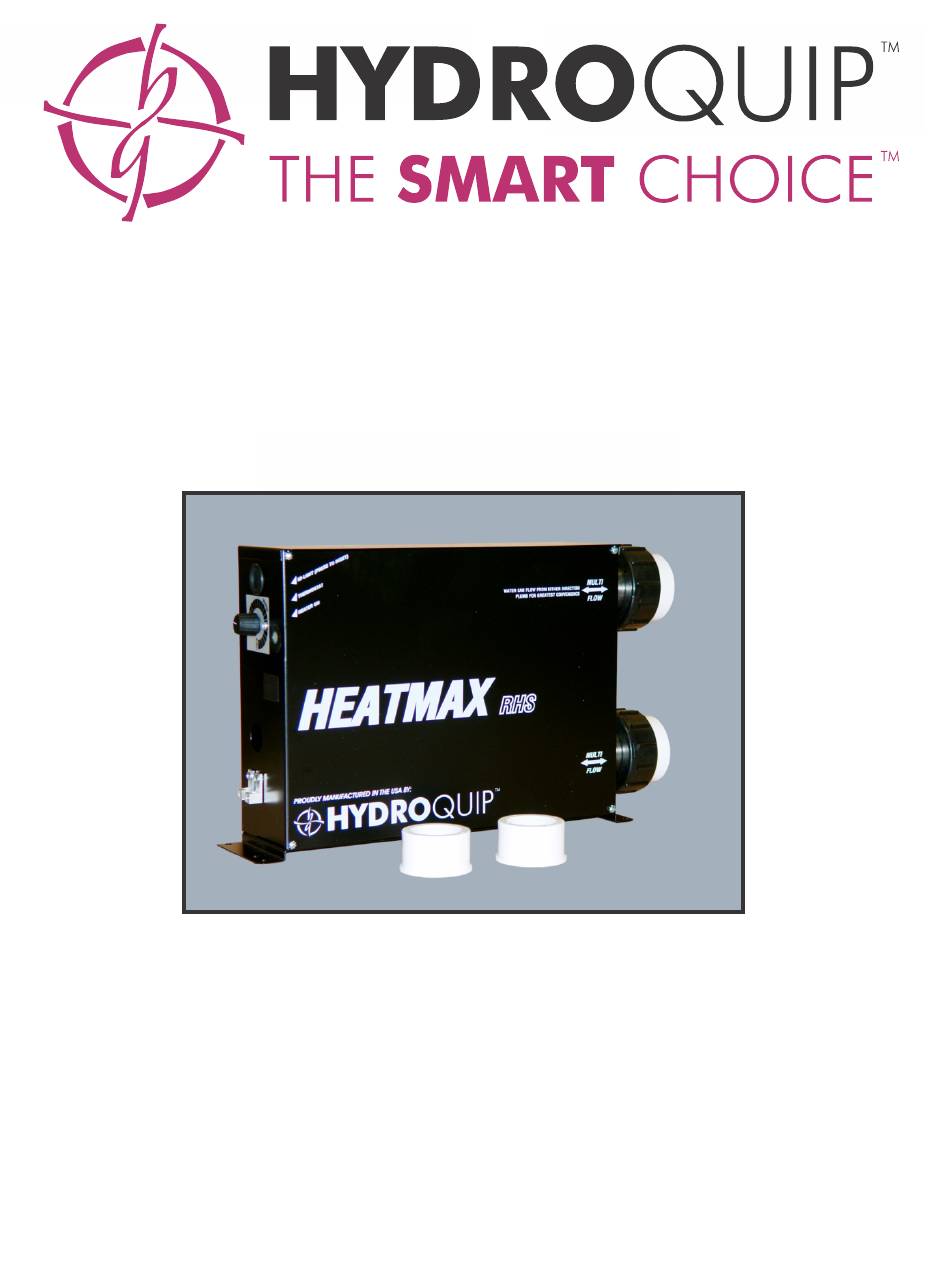

- Page 1 HEATMAX ELECTRIC POOL AND SPA HEATER MODELS: HEATMAX RHS-5.5KW 5500W HEATER HEATMAX RHS-11.0KW 11,000W HEATER Operation / Installation Instructions...
- Page 3 INTRODUCTION Your Hydro-Quip Remote Heater System has been designed to be installed safely either indoors or outdoors, remote installation. It’s weather-tight construction helps to guard against the elements and allows for a variety of mounting possibilities. Your Hydro-Quip Remote Heater System is totally self contained to insure trouble free installation and operation. As with all electrical devices, certain safety precautions should be taken during installation and operation.
- Page 4 EQUIPMENT DESCRIPTION AND OPERATION CONTROL BOX The control box contains all the electrical components necessary to operate your heater. It also contains the field- wiring compartment. THERMOSTAT Setting the thermostat, located on the left side panel, controls the temperature of the spa water. When the equipment is operating, the thermostat will control the heater.
- Page 5 ELECTRICAL INSTALLATION All electrical connections to the Remote Heater System must be accomplished by a qualified and licensed electrician in accordance with the National Electric Code and any local codes in effect at the time of the installation. All electrical connections must be made in accordance with the wiring information contained in this manual or the wiring diagram included on the inside of the access panel.
- Page 6 INSTALLATION CONSIDERATIONS The equipment should be installed so that there is safe access for servicing and routine maintenance. After filling the spa or hot tub each time it is important that the pump be operated on high speed for several minutes to insure that all the air has been removed from the system before the heater is turned on.
- Page 7 2) Turn the thermostat to a higher setting. WARRANTY INFORMATION To all original purchasers, HYDROQUIP warrants its products to be free from defects in material and workmanship for a period of two year from the date of purchase. HYDROQUIP will repair or replace the part, which in our opinion, is defective.
- Page 8 85-0116 Rev 5 02/18...
