Summary of Contents for LumaSense IN 5

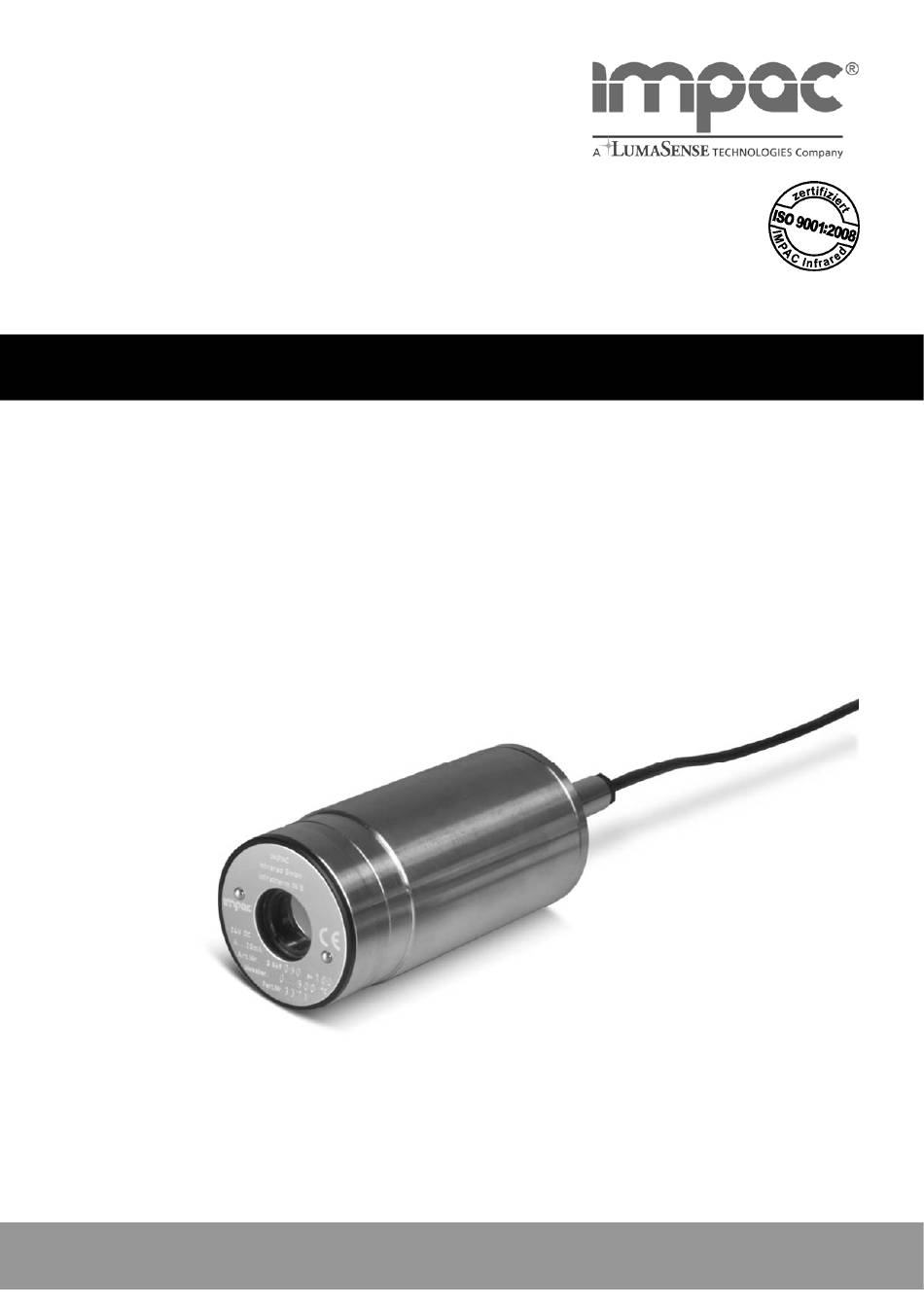

- Page 1 IN 5 · IN 5/5 INFRATHERM-Pyrometer Betriebsanleitung · User Manual IMPAC - Spezialist für berührungslose Temperaturmessung IMPAC - Specialist in non-contact thermometry...
-
Page 2: Table Of Contents
INFRATHERM pyrometers IN 5 · IN 5/5 Contents General ..............................16 Information about the user manual ..................... 16 Limit of liability and warranty ....................... 16 Legend ............................16 Terminology ..........................16 Copyright ............................. 16 Disposal / decommissioning......................16 Technical data............................17 Overview.............................. -
Page 3: General
INFRATHERM pyrometers IN 5 · IN 5/5 General Information about the user manual Congratulations on choosing this high quality and highly efficient IMPAC pyrometer. Please read this manual carefully and step for step including all notes to security, operation and mainte- nance before installing the pyrometer. -
Page 4: Technical Data
= 23°C) at t = 1 s: 0.4°C (at 110°C measuring temperature) Ambient temperature: 0 ... 70°C 0 ... 63°C for IN 5/5, MB 25 Storage temperature: -20 ... 70°C Relative humidity Non condensing conditions Protection class: IP65 (DIN 40050) -
Page 5: Overview

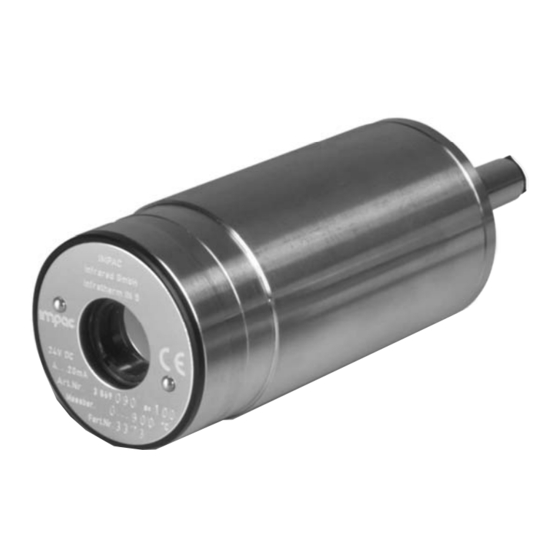

Settings at the pyrometer Appropriate use IN 5: The IN 5 is a stationary infrared thermometer for non-contact temperature measurement of non-metallic surfaces or painted, coated or anodized metals with temperature ranges between -32 and 900°C. IN 5/5: The IN 5/5 is a stationary pyrometer especially for non-contact temperature measurement of glass surfaces and quartz surfaces with temperature ranges between 100 and 2500°C. -
Page 6: Electrical Installation
INFRATHERM pyrometers IN 5 · IN 5/5 Electrical installation The pyrometers are powered by 24 V DC nominal (possible range: 10 ... 30 V). When connecting the device to the power supply ensure correct polarity. The power consumption (in this case 4 - 20 mA) is also the measuring signal. -
Page 7: Mechanical Installation
INFRATHERM pyrometers IN 5 · IN 5/5 Mechanical installation Accessories (option) Numerous accessories guarantee easy installation of the pyrometers. The following overview shows a selec- tion of suitable accessories. You can find the entire accessory program with all reference numbers on sec- tion 13.2 Reference numbers. - Page 8 INFRATHERM pyrometers IN 5 · IN 5/5 IN 5: Measuring distance a [mm] Optics 100 Spot size M [mm] 1000 Measuring distance a [mm] Optics 300 Spot size M [mm] 2500 Measuring distance a [mm] 1500 Optics 800 Spot size M [mm]...
-
Page 9: Alignment Of The Instrument
INFRATHERM pyrometers IN 5 · IN 5/5 Alignment of the instrument For exact measurement of the object temperature the pyrometer must be aligned correctly onto the object. The instruments are not equipped with a sighting so that the aligning must be done thermally. When measur- ing a hot object in front of a cooler background, it usually suffices to align the pyrometer to achieve the highest temperature reading. -
Page 10: Exposure Time T
INFRATHERM pyrometers IN 5 · IN 5/5 Measuring object EMI (at 8 ... 14 µm) Measuring object EMI (at 8 ... 14 µm) "Black body furnace" 100% Brickwork Human skin Fire clay Black dull varnish Rubber Carbon soot Porcelain 85... 95% Wood 80 ... -
Page 11: Avoiding Reading Errors Caused By Faulty Assembly
Also standard cloths for cleaning glasses or photo objectives can be used. The Germanium lens of the IN 5 has an anti-reflective coating which appears slightly colored. Be extremely careful - this layer can easily be rubbed off - this will greatly affect the measuring results! -
Page 12: Trouble Shooting
INFRATHERM pyrometers IN 5 · IN 5/5 Trouble shooting Before sending the pyrometer for repair, try to find the error and to solve the problem with the help of the following list. Temperature indication too low • Incorrect alignment of the pyrometer to the object ⇒... -
Page 13: Reference Numbers
3 837 230 Water cooling jacket (heavy design) with integrated air purge unit 3 837 350 Water cooling jacket (heavy design) with ZnSe window for IN 5 3 837 340 Water cooling jacket (heavy design) with CaF window for IN 5/5...
