Summary of Contents for Philips AZ9235/00

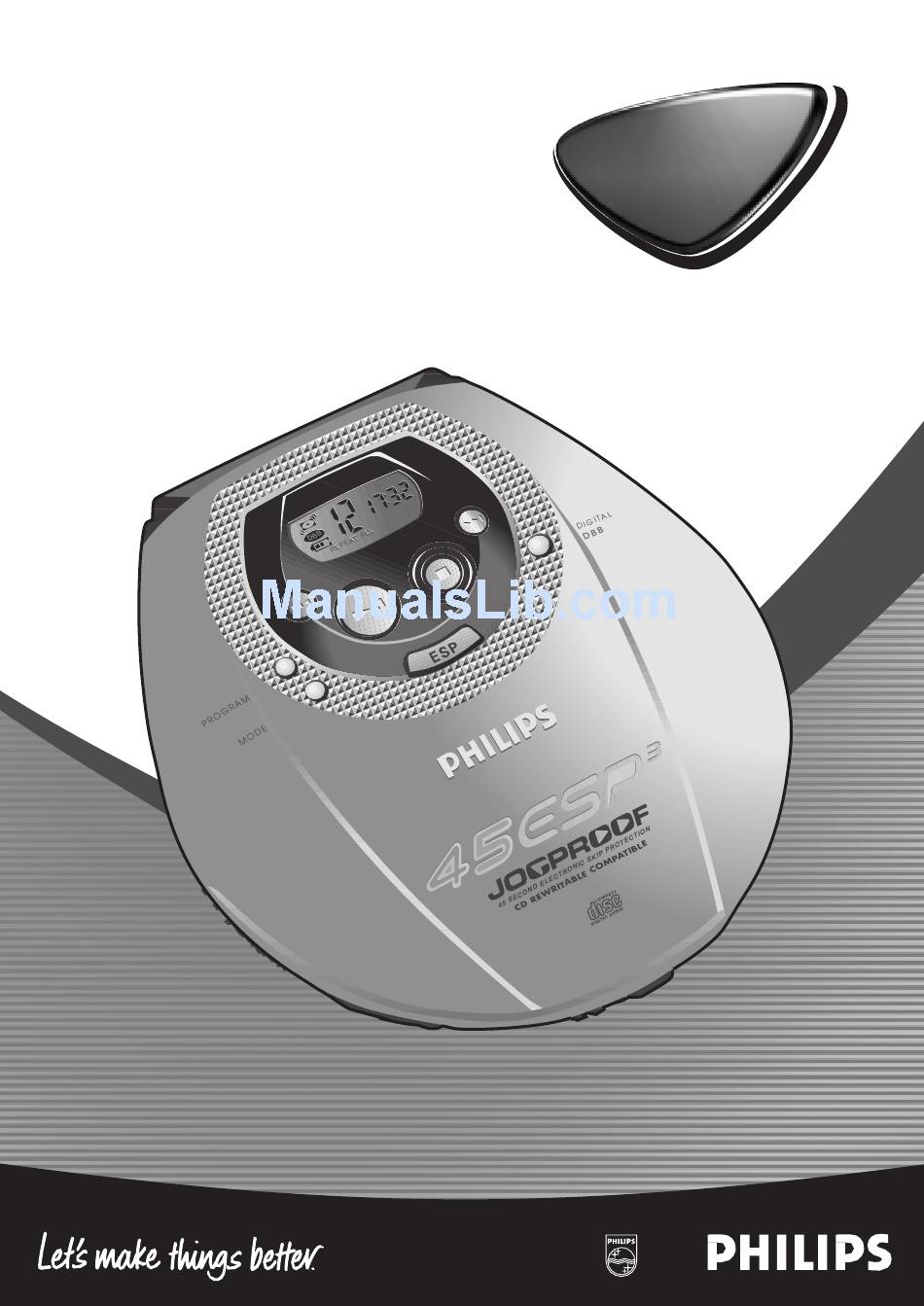

  • Page 1 9235 9235 Portable CD Player...
  • Page 2 Tocadiscos de CD portatil AZ 9235/01, AZ 9235/16 110–127/220–240 V~ 50–60 Hz 4 W (AY 3170) Philips Mexicana, S.A. de C.V. Norte 45, # 669, Col. Industrial Vallejo Philips Electronics Hong Kong, Ltd. China ______________________________...
  • Page 3 • • H L I N 4 , 5 U T / VO L.
  • Page 5 Alimentación eléctrica ...42–44 Auriculares ...44 ∑ General information ...57 Controls ...58 Quick start ...59 Power supply...60–62 Guarantees Polizia de garantía Mexico...74–75 Philips product warranty for Australia...76–77 CD play ...11–12 Features...13–18 In-car connection...19 Troubleshooting...20–21 General information ...22 Ecouteurs ...28 Lecture CD...29–30 Caractéristiques ...31–36 Raccordement en voiture ...37...
  • Page 6: Controls

    CONTROLS , refer to the illustration on page 3 1 9 ...stops CD play, clears a program or switches the player off 2 DIGITAL DBB ...DIGITAL DYNAMIC BASS BOOST switches the bass enhancement on and off 3 §...skips and searches CD tracks forwards 4 2;...switches the player on, starts or pauses CD play 5 ...display 6 ∞...skips and searches CD tracks backwards...
  • Page 7: Quick Start

    OPEN • • H L IN U T / VOL. PLAY • • H LI N UT / VOL. CAUTION Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
  • Page 8: Power Supply

    (supplied or optionally available) With this player you can use either: • normal batteries type LR6, UM3 or AA (preferably Philips), or • alkaline batteries type LR6, UM3 or AA (preferably Philips). Notes: – Old and new or different types of batteries should not be used in combination.
  • Page 9 ECO-PLUS NiMH battery information rechargeable ECO-PLUS NiMH batteries AY 3362 only) Recharging works only on players with supplied rechargeable ECO-PLUS NiMH batteries AY 3362. Recharging the ECO-PLUS NiMH batteries on board 1 Make sure you insert the rechargeable ECO-PLUS NiMH batteries AY 3362.
  • Page 10: Headphones

    POWER SUPPLY/HEADPHONES Mains adapter (supplied or optionally available) Use only the AY 3170 adapter (4.5 V/300 mA direct current, positive pole to the centre pin). Any other product may damage the player. 1 Make sure that the local voltage corresponds to the mains adapter´s voltage.
  • Page 11: Playing A Cd

    Playing a CD This CD player can play all kinds of Audio Discs such as CD-Recordables and CD-Rewritables. Do not try to play a CD-ROM, CDi, VCD, DVD or computer CD. 1 Push the OPEN 2 slider. The lid opens. 2 Insert an audio CD, printed side up, by pressing gently on the CD centre so that it fits onto the hub.
  • Page 12: Playback Information

    CD PLAY Playback information • If a recordable CD (CD-R) or a rewritable CD (CD-RW) is not recorded properly, nF dISC is displayed. In that case use FINALIZE on your CD recorder to complete the recording. • If you want to play a rewritable CD (CD-RW), it takes 3–15 seconds for sound reproduction to start once you have pressed 2;.
  • Page 13: Selecting A Track And Searching

    Selecting a track and searching Selecting a track during playback • Briefly press ∞ or § once or several times to skip to the current, previous or next track. Playback continues with the selected track and its number is displayed. Selecting a track when playback is stopped 1 Briefly press ∞...
  • Page 14: Programming Track Numbers

    FEATURES Programming track numbers You can select up to 99 tracks and store them in memory in a desired sequence. Any track can be stored more than once. 1 While playback is stopped, select a track with ∞ or §. 2 Press PROGRAM to store the track.
  • Page 15: Locking All Buttons – Hold

    Storing the last position played – RESUME You can store the last position played. When restarting, playback continues from where you have stopped. 1 Switch the slider to RESUME during playback to activate RESUME. is shown. RESUME 2 Press 9 whenever you want to stop playback. 3 Press 2;...
  • Page 16 FEATURES With a conventional portable CD player you might have experienced that the music stopped e.g. when you were jogging. The ELECTRONIC SKIP PROTECTION prevents loss of sound caused by light vibrations and shocks. Continuous playback is ensured. However, ESP does not prevent playback interruptions during serious running.
  • Page 17: Selecting Different Playing Possibilities – Mode

    Selecting different playing possibilities – MODE It is possible to play tracks in random order, to repeat a track or the CD and to play the first few seconds of each track. 1 Press MODE during playback as often as necessary until the display shows either: : All tracks of the CD are played in SHUFFLE...
  • Page 18 FEATURES Remote control (not on all versions) Use the AY 3767 cord remote control. The buttons on the remote control have the same functions as the corresponding buttons on the CD player. 1 If necessary press 9 once or twice until the set is switched off. 2 Firmly connect the remote control to LINE OUT/p and the headphones to the remote control’s socket.
  • Page 19: In-Car Connection

    In-car use (connections supplied or optionally available) Only use the AY 3545 car voltage converter (4.5 V, DC, positive pole to the centre pin) and the AY 3501 car cassette adapter. Any other product may damage the set. 1 Put the CD player on a horizontal, vibration-free and stable surface.
  • Page 20: Troubleshooting

    TROUBLESHOOTING WARNING Under no circumstances should you try to repair the set yourself as this will invalidate the guarantee. Problem Possible cause No power, Batteries playback does Batteries inserted incorrectly not start Batteries are empty. Contact pins are dirty. Mains adapter Loose connection In-car use Cigarette lighter is not powered Switch on ignition or insert...
  • Page 21 If a fault occurs, first check the points listed, before taking the set for repair. If you are unable to solve a problem by following these hints, consult your dealer or service centre. Problem Possible cause The CD skips tracks. The CD is damaged or dirty. RESUME active.
  • Page 22: General Information

    GENERAL INFORMATION CD player and CD handling • Do not touch the lens A of the CD player. • Do not expose the set, batteries or CDs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). •...
