Summary of Contents for Aquawise AquaPro

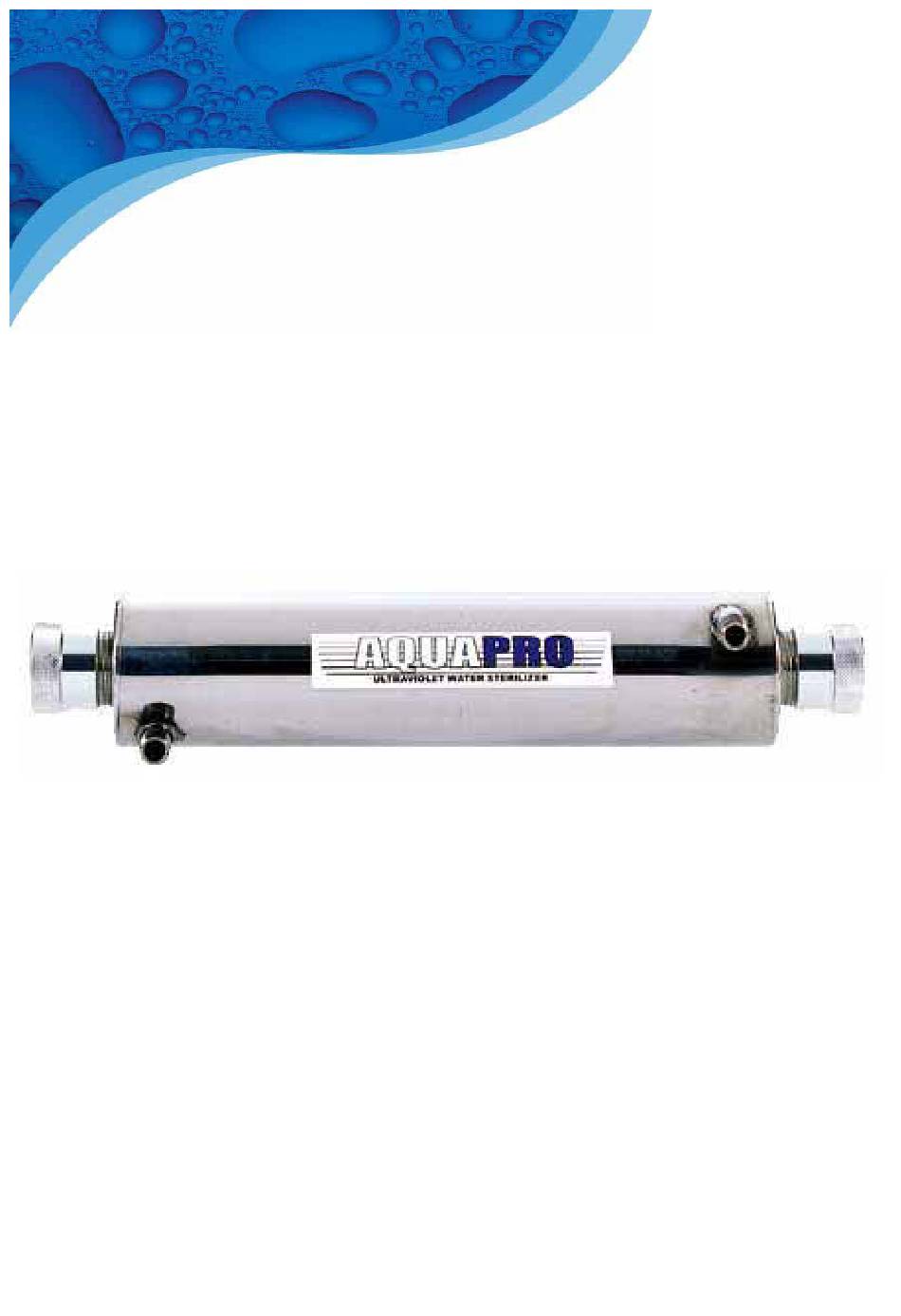

- Page 1 Ultraviolet Steriliser Installation and Maintenance Booklet...
- Page 2 SAFETY WARNING - To prevent risk of electric shock, make sure this sys- tem is properly earthed and protected by a safety switch. Pull the plug before servicing or replacing lamps. Keep all connec- tions dry and off the ground. Do not touch the plug with wet hands.
- Page 3 WATER QUALITY PARAMETERS These are recommended levels, for use as a guideline for pre-treatment require- ments Hardness: <120ppm Turbidity: <1.0NTU Iron: <0.3ppm Manganese: <0.05ppm Tannins: <0.1ppm Chloride: <200ppm If your water quality parameters do not meet these criteria, please contact the dis- tributor for pretreatment recommendations.
- Page 4 UV Installation Instructions Open the box and check components. Connect the Jaco elbows or other fit- tings to the inlet and outlet on the UV. Then connect the fittings into the wa- ter line or onto a water filter system, making sure the water supply is turned off.
- Page 5 Connect the female 4-pin plug from the ballast to the pins on the lamp. Place the cover over the end of the UV unit Connect the unit to a power source and switch on the power. The light on the ballast should come on and turn Green Turn the power to the UV off.
- Page 6 TO SERVICE THE UNIT Minerals in the water will build up on the quartz sleeve and on the vessel. This coating must be cleaned off periodically because it reduces the amount of UV light reaching the water, therefore reducing disinfection performance. Depending on the water quality, it is advised to clean the unit at least every time the lamp is changed.
- Page 7 10 minutes. TECHNICAL DATA AquaPro UV systems are not designed to be turned on and off. Doing this will shorten your lamp life. Lamps should be changed every year. The lamp may still be working, but after 1 year, the power will not be guaranteed to kill bacteria.
- Page 8 SERVICE RECORD Installation Date: ____/____/____ Next Service Due: ____/____/____ Service: ____/____/____ Lamp Changed?:____________ Serviced By: ________________________ Next Service Due: ____/____/____ Service: ____/____/____ Lamp Changed?:____________ Serviced By: ________________________ Next Service Due: ____/____/____ Service: ____/____/____ Lamp Changed?:____________ Serviced By: ________________________ Next Service Due: ____/____/____ Service: ____/____/____...
