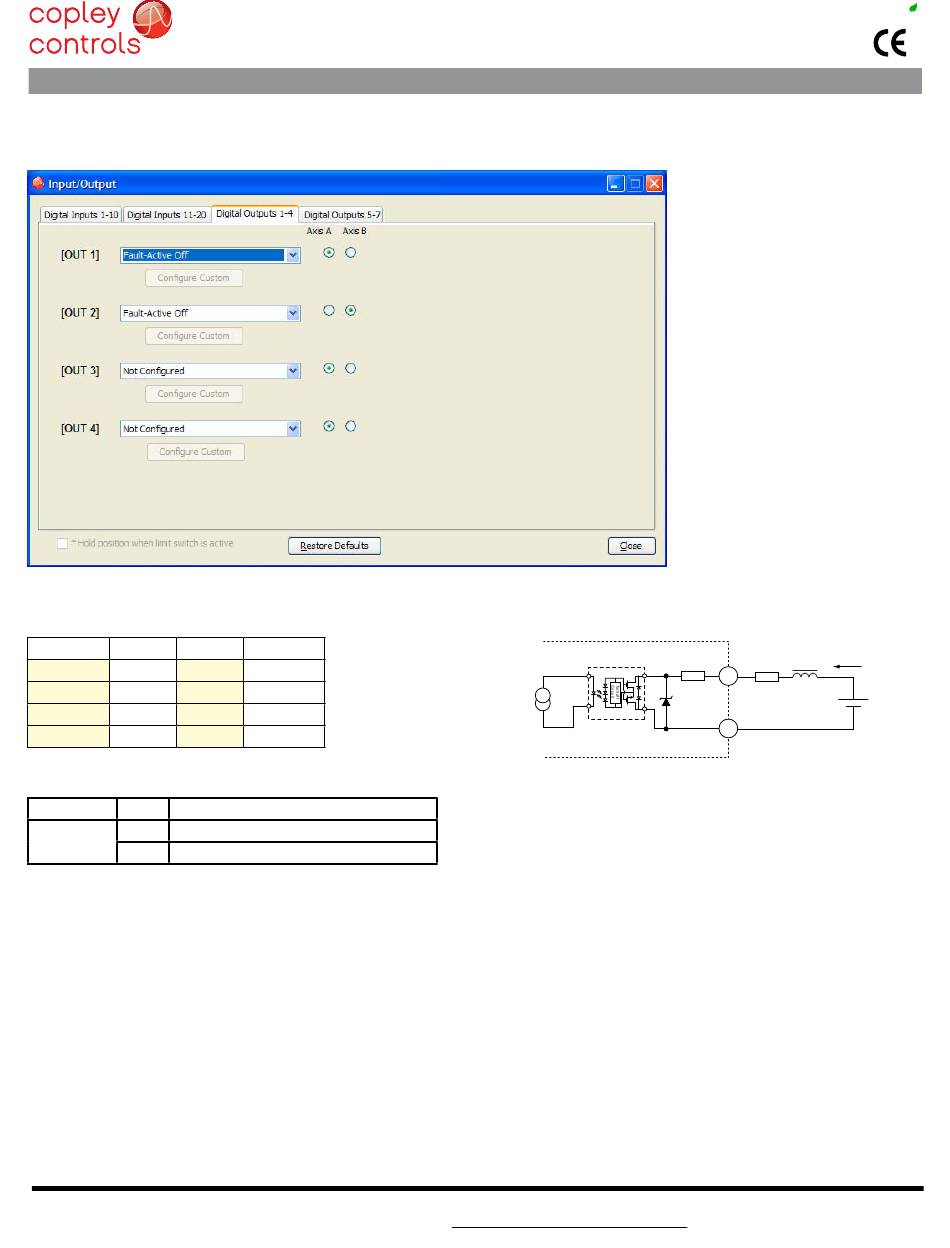

Output Connections - Copley Controls Xenus Plus XP2 Series Manual

Xenus
cMe2 & outputs 1~4 connectIons

oUTPUT ConnECTionS

CME2 SCREEn FoR oUTPUTS [oUT1~4]
oUTPUT DATA
[OuT1~4] SIGNAlS
Signal Pins Signal
[oUT1+] J9-19 [oUT1-]
[oUT2+] J9-20 [oUT2-]
[oUT3+] J9-21 [oUT3-]
[oUT4+] J9-22 [oUT4-]
Hi/lo DEFiniTionS: oUTPUTS
input State Condition
Hi Output transistor is ON, current flows
oUT1~4
lo Output transistor is OFF, no current flow
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Tech Support: E-mail: sales@copleycontrols.com, Web: http://www.copleycontrols.com
PLUS
2-Axis CANopen
Pins
J9-10
J9-11
J9-12
J9-13
Rev 01
[oUT1~4]
[OUTn+]
ASSR-1218
20
36V
[OUTn-]
Tel: 781-828-8090
XP2
RoHS
J9
300mA
60Ω
max
min*
+
Vdc
* at 24 Vdc
Fax: 781-828-6547
Page 21 of 34
