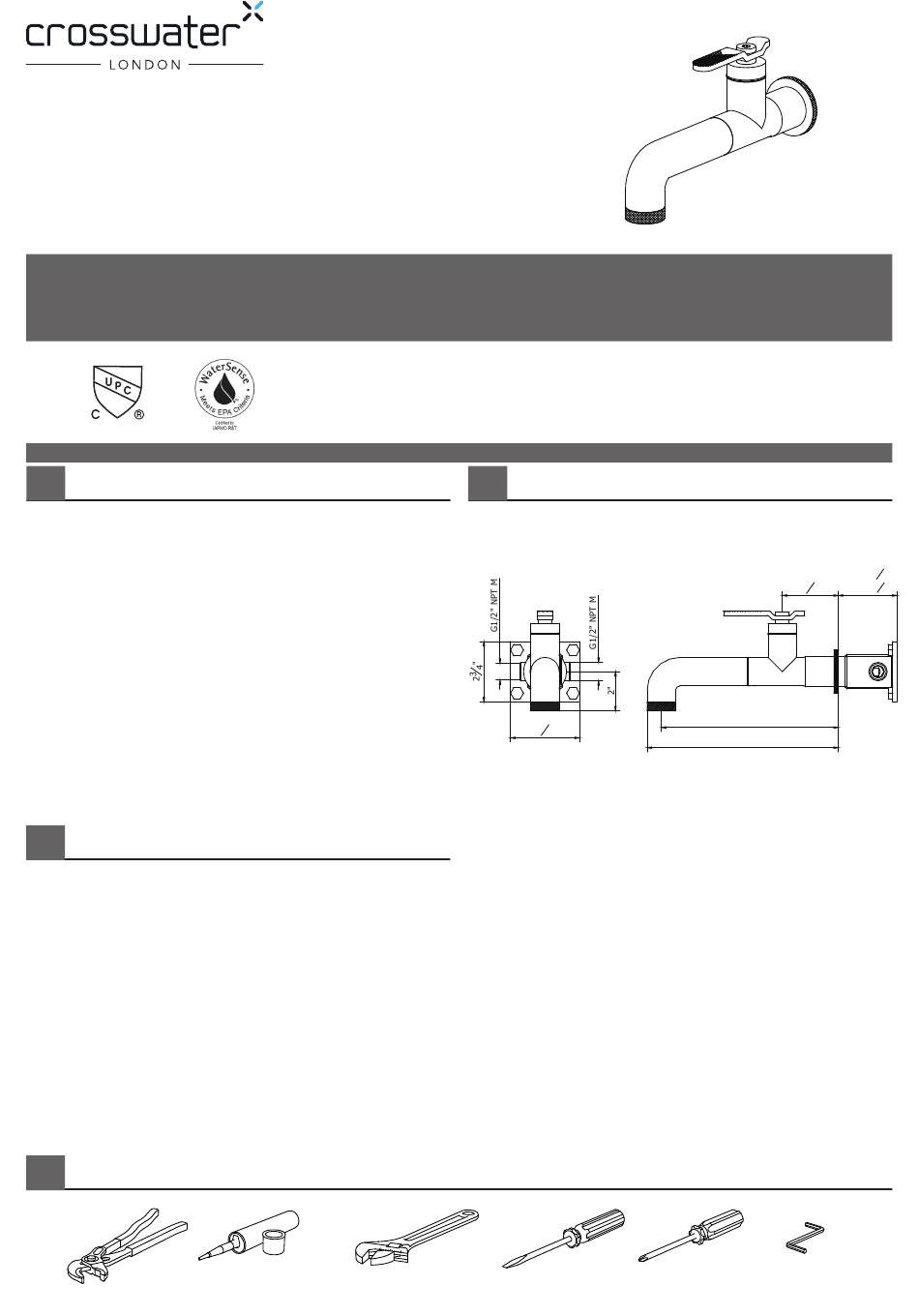

Crosswater UNION US-UN111 Installation Instructions

UNION Wall-mount Basin Faucet
US-UN111
Installation Instructions

Introduction

The faucets in this range are single flow (hot and cold water mix in the
body) and should therefore be supplied with hot and cold water at
balanced pressures. If the faucets are not supplied at balanced
pressures then the mixer will not function correctly.
The minimum water pressure required for these faucets is 20 psi. The
maximum water pressure is 60 psi beyond which pressure-reducing
valves must be installed.
The faucets are fitted with quarter-turn ceramic disc cartridges which
provide a good flow rate with very smooth movement.
IMPORTANT: Please read these instructions carefully
before beginning installation and retain for future
reference. These instructions have been prepared for
guidance. Please exercise due care at all times. We do not
accept responsibility for any problems that may occur through
incorrect installation.
Before beginning installation, check to ensure that no damage has
occurred during transport. Note: Damage claims cannot be made
during or after installation.

Installation notes

The installation must comply with all plumbing codes including local
codes and be installed by a licensed plumbing contractor.
WARNING! Before installing a new faucet it is essential that the supply
pipes are thoroughly flushed in order to remove any remaining debris,
solder or other impurities. Failure to carry out this simple procedure
can cause problems or damage to the working of the faucet.
Installing shut-off valves on incoming supply lines is recommended
for ease of maintenance.
Turn off the main water supply before connecting to any existing
pipework or doing any maintenance.
WARNING! Please check for any hidden pipes and cables, electric
or otherwise, before drilling holes in a wall or floor.

Tools required

Channel
locks
Plumbers' putty Adjustable
or caulking wrench

Dimensions

3 1 8 "
Flat head
screwdriver
MIN
2 1 2 "
MAX
8"
9"
Cross head Hexagonal
screwdriver key
2 1 2 "
2 7 8 "
