XX152-01-00

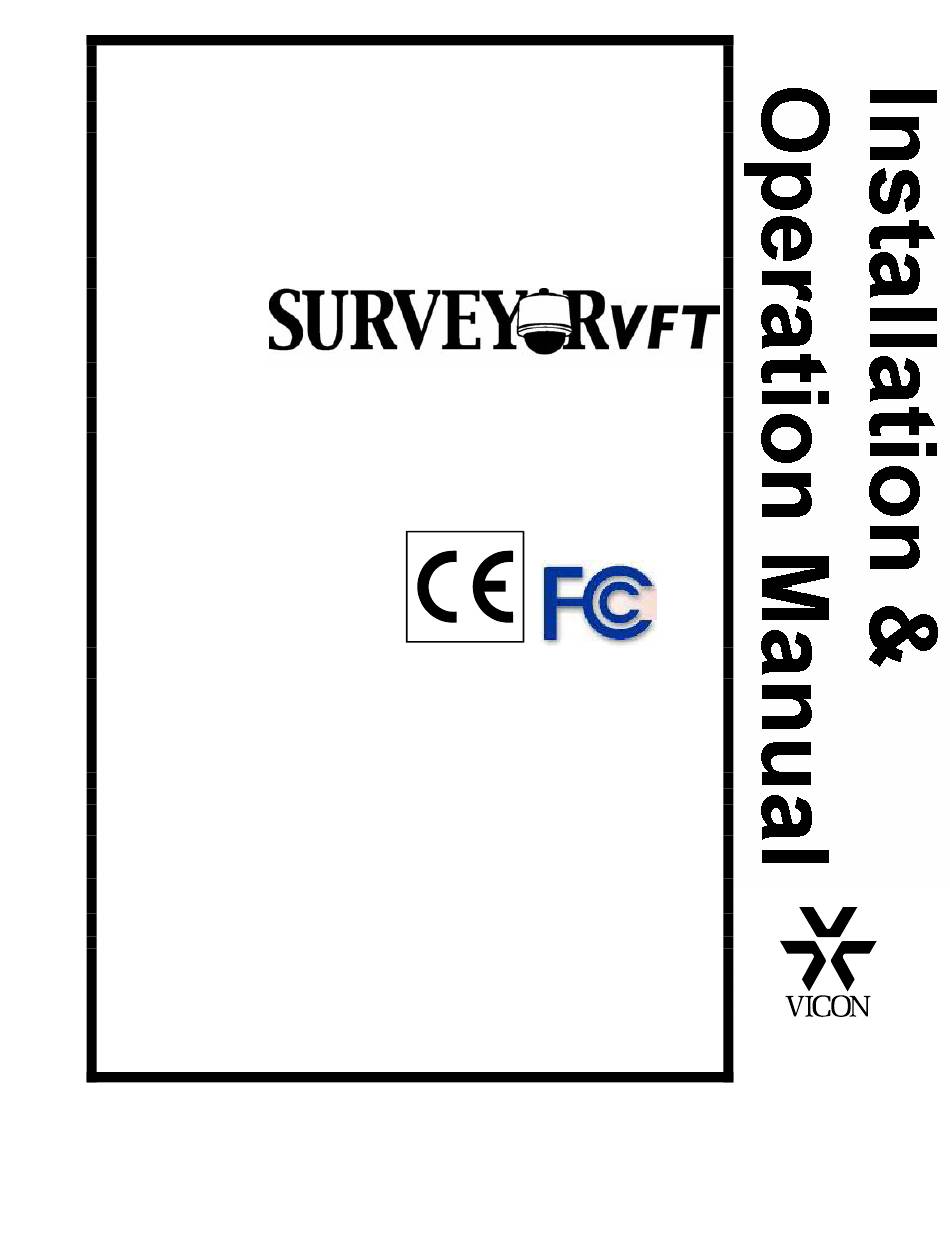

FIXED CAMERA DOME
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet
your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in life-critical
situations and must not be used for this purpose.
Copyright © 2004 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44 (0) 1489-566300
WEB: www.vicon-cctv.com
Vicon part number 8009-8152-01-00
Rev 404 Section 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vicon SurveyorVFT SVFT-C266M
Summary of Contents for Vicon SurveyorVFT SVFT-C266M
- Page 1 XX152-01-00 FIXED CAMERA DOME Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
-
Page 3: Fcc Notice
FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception. - Page 4 20. Replacement Parts - Use only Vicon specified replacement parts or an approved equivalent to prevent unit damage and 6. Attachments - Use only Vicon recommended attachments to injury.
-
Page 5: Table Of Contents
Contents Quick Installation ........................ii Introduction .........................1 Installation ...........................2 Unpacking and Inspection..........................2 Inspection for Visible Damage ........................2 Inspection for Concealed Damage .......................2 SurveyorVFT Fixed Dome Components.......................3 Mounting the Unit ............................4 In-Ceiling Mounting............................4 Using the Provided Scribe.........................4 Mounting from Below the Ceiling ......................4 Mounting from Above the Ceiling ......................5 Optional Independent Support ........................6 Indoor Pendant .............................7... -
Page 6: Quick Installation
Quick Installation In-Ceiling - No Access to Ceiling ii • Quick Installation XX152-01-00 Rev 404 SurveyorVFT Fixed Camera Dome... - Page 7 In-Ceiling – Access to Ceiling Quick Installation • iii XX152-01-00 Rev 404 SurveyorVFT Fixed Camera Dome...
- Page 8 Pendant - Indoor iv • Quick Installation XX152-01-00 Rev 404 SurveyorVFT Fixed Camera Dome...
- Page 9 Pendant – Outdoor Quick Installation • v XX152-01-00 Rev 404 SurveyorVFT Fixed Camera Dome...
-
Page 11: Introduction
Introduction The information in this manual covers the installation, operation, and maintenance of the SurveyorVFT Series of Fixed Camera Domes. This unit should only be installed by a qualified technician using approved materials in accordance with national, state and local wiring codes. Read this manual through completely before attempting installation. -
Page 12: Installation
Installation Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to deliver the equipment in the same condition as it left the factory. Inspection for Visible Damage Immediately inspect the cartons upon delivery. Make a note of any visible damage on all copies of the carrier’s freight bill. -
Page 13: Surveyorvft Fixed Dome Components
SurveyorVFT Fixed Dome Components The SurveyorVFT fixed camera dome units consist of an enclosure/housing, a camera mechanism, a shroud, and a smoked (indoor) or clear (outdoor) lower dome. Enclosure The enclosure is a metal shell that houses the camera mechanism for the in-ceiling model. A safety cord and clip are provided to connect to the camera mechanism during installation. -
Page 14: Mounting The Unit
Mounting the Unit In-Ceiling Mounting The SurveyorVFT fixed dome rests on the ceiling material and occupies the space between the lower ceiling and upper building frame. There are two methods of installation. The first method can be used for ceilings with no access to the space above, as in a typical hard material ceiling. -
Page 15: Mounting From Above The Ceiling
2. If cables are used without the use of flexible conduit: a. Remove the enclosure top by loosening the 3 screws. Remove the conduit fitting by loosening the nut and sliding it out. Install the supplied strain relief fitting in its place and re-attach the top cover. -
Page 16: Optional Independent Support
3. Working above the ceiling, remove the enclosure top by loosening the 3 screws and lifting it off. If cables are used without the use of flexible conduit: a. Remove the conduit fitting by loosening the nut and sliding it out. Install the supplied strain relief fitting in its place and re-attach the top cover. -
Page 17: Indoor Pendant
Indoor Pendant The indoor pendant model m ounts on a Vicon mount or a 1.5-in. vertical pipe w ith an appropriate coupling. he pipe is a standard 1.5-in. NPT type and must be oriented vertically so the SurveyorVFT fixed camera dome can effectively hang from the pipe. -
Page 18: Outdoor Pendant
Outdoor Pendant outdoor pendant model mounts on a Vicon mount or a 1.5-in. vertical pipe with an ap propriate coupling. he outdoor version includes a sunshield, heater and weather protection. Be sure the area around the selected location is clear of obstacles (such as ste el beams, headers, pipes, electrical wiring, etc.) that would... -
Page 19: Camera Power Connections
Camera Power Connections Note: Vicon systems and components, like most electronic equipment, require a clean, stable power source. Voltage irregularities such as surges, drops, and interruptions can affect the operation of your equipment and, in severe cases, damage certain components. Vicon strongly recommends the use of line conditioners, voltage regulators, and uninterruptible power supply (UPS) systems. -
Page 20: Dip Switch Settings
DIP Switch Settings 5-50 mm Lens Models There is a 4-positon DIP switch located on the inside camera board (closest to the lens). It allows for the setting of iris, DC or automatic electronic shutter (Switch 1; DC is the ON position/AES is the OFF position); flicker less (Switch 2;... - Page 21 Figure 5 DIP Switch and Potentiometer Location – 5-50 mm Lens Version Figure 6 DIP Switch Settings – 5-50 mm Lens Version IP Switch Table (Refer to Figure 6) Switch Function Setting escription Number Iris DC/AES DC Iris (ON)/Automatic Electronic Shutter (OFF) Flickerless (FL) ON/OFF Shutter speed set to be fixed at 1/100 sec/Normal position...
- Page 22 Figure 7 Potentiometer/DIP Switch Location – 2.6-6 mm Lens Version Figure 8 DIP Switch Settings - 2.6-6 mm Lens Version 12 • Installation XX152-01-00 Rev 404 SurveyorVFT Fixed Camera Dome...
-
Page 23: Final Installation
Final Installation In-Ceiling After all cabling is complete, (if not previously done) connect the enclosure’s safety cord clip to the tab in the camera mechanism to allow the mechanism to hang from the enclosure. Align the 2 slots on the camera mechanism with the tabs in the enclosure, being sure to match up the arrows on both the drive and in the enclosure. - Page 24 Figure 10 Camera Mounting Bracket Adjustment – 2.6–6 mm Version Only Insert the clip of the safety cord on the lower dome into the hole in the enclosure. Refer to label in the enclosure. Lift the lower dome up to the SurveyorVFT and align the molded tabs on the lower dome with the recesses on the inner enclosure.
- Page 25 Indoor Pendant After all the cabling is complete, push the SurveyorVFT camera mechanism straight up into the housing. Align the 2 slots on the camera mechanism with the tabs in the enclosure, being sure to match up the arrows on both the mechanism and in the enclosure.
- Page 26 Outdoor Pendant After all the cabling is complete, push the SurveyorVFT camera mechanism straight up into the housing. Align the 2 slots on the camera drive with the tabs in the enclosure, being sure to match up the arrows on both the drive and in the enclosure.
-
Page 27: Disassembly
Disassembly The SurveyorVFT Fixed Camera Dome can be easily disassembled by removing the camera mechanism from the housing or enclosure. A safety cord is always available to safely hang the camera mechanism while assembling or disassembling. In-Ceiling Installation 1. Gently pull down on the lower dome’s outside edge, with two hands, until all molded tabs snap out of place. -
Page 28: Operation
Operation When power is applied to the camera, the SurveyorVFT fixed dome views the selected scene. Maintenanc The SurveyorVFT Fixed Camera Dome requires no scheduled maintenance except for the occasional cleaning of the lower dome. Care and Cleaning of Lower Dome 1. -
Page 29: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authoriz ation (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R Vicon Industries Inc. -
Page 30: Reference
Caution: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. In all cases, coaxial cable impedance should be 75 ohms. -
Page 31: Technical Information
Technical Information ELECTRICAL Input Voltage: 24 VAC. Current: Indoor: 0.6 A. Outdoor: 1.7 A. Power Consumption: Indoor: 14 W. Outdoor: 39 W. Heat Equivalent: Indoor: 0.8 btu/min (0.2 kg-cal/min). Outdoor: 2.2 btu/min (0.56 kg-cal/min). Note: These figures repre sent the conversion of 100% of the electrical energy to eat. - Page 32 Dimensions: In-Ceiling Height: 9.7 in. (246 mm). Total Diameter: 7.1 in. (180 mm). Dome Diameter: 5.9 in. (150 mm). Indoor Pendant Height: 10 .0 in. (254 mm). Total Diameter: 8.0 in. (203 mm). Dome Diamete r: 5.9 in. (150 mm). Outdoor Pendant Height: 10.3 in.
- Page 33 able Spec ific atio Model Image Color/ utio itivity nchroniz tion ctro Iris Signal-to-Noise Device Mono nes) fc ( Ratio SVFT-C266M/ 1/3” CCD, Color .019 (0.2) Interna l/Lin 1/60 – 1/100,000 >48 dB (AGC off) SVFT-C266M-C 2:1 interlace, NTSC/PAL ecta SVFT-C266A/ 1/3”...
- Page 34 Lens Specifications ength Field-of-View (mm) rizontal Vertica -C266 2.6-6 varifocal FT-C266M-C with manual iris 106° - 47.6° 78.2°- 35.8° SVFT-C266A/ 2.6-6 varifocal -C266 with autoiris 6° - 47.6° .2°- 35 .8° -C550 5-50 varifocal FT-C550M-C with manual iris 39.2° - 4.3° 29.5°- 3.2°...
-
Page 35: Vicon Standard Equipment Warranty
. Softw re s upport via telephone, if provided at no cost, may be discontinued at any time without notice at Vicon’s sole discretion. Vicon reserves the right to make changes to softw e in a of i... - Page 36 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Infofax: 800-287-1207 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Brussels Office...
