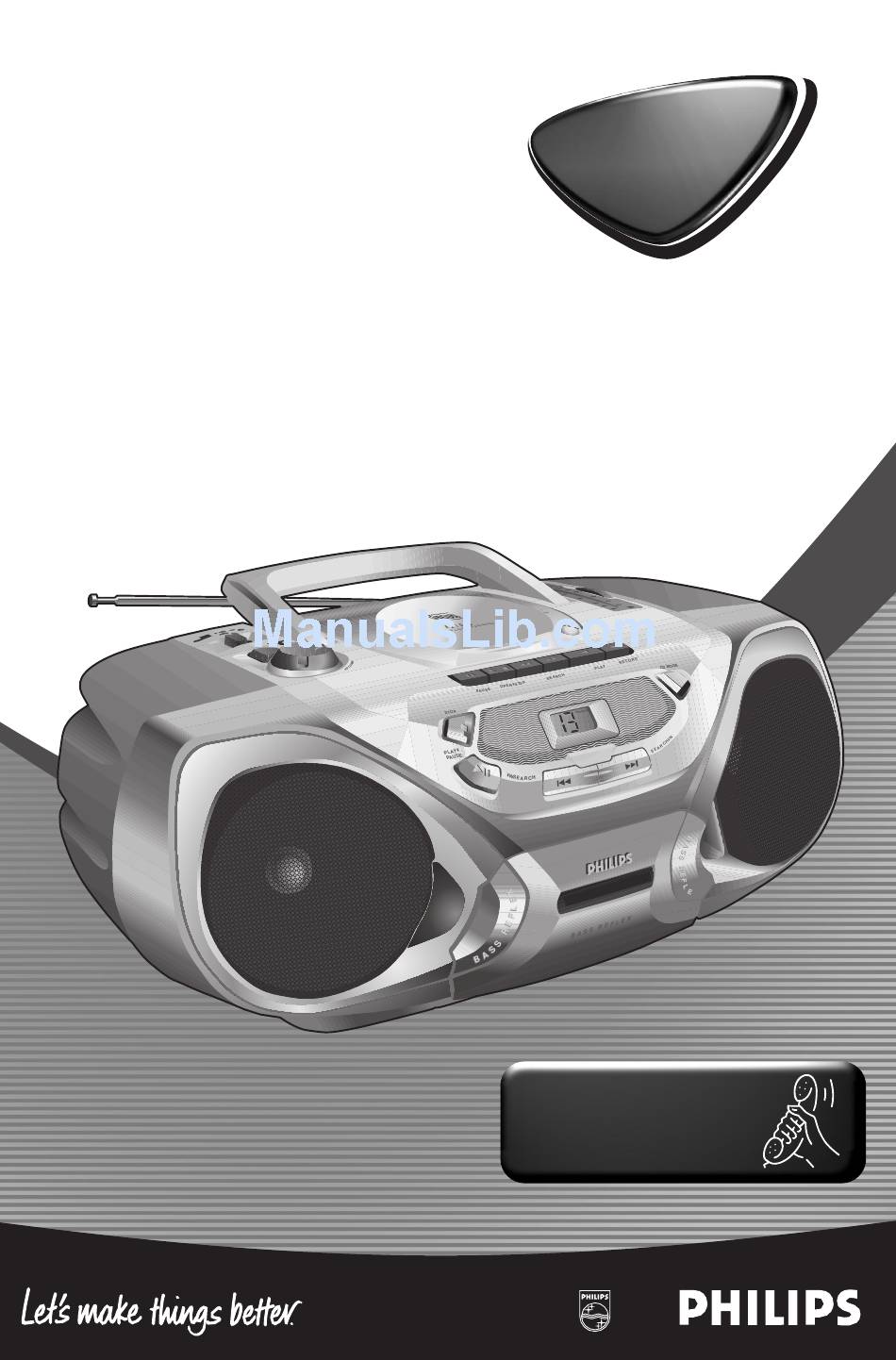

- Page 1 1050 1050 CD Radio Cassette Recorder Toll Free Help Line Ligne d'assistance en service libre Linea de ayuda telefónica sin cargo 800-531-0039...
- Page 2 CONTROLS BASIC FUNCTIONS 1 POWER: CD, TAPE, BAND ...selects the sound source 2 DBB...enhances the bass 3 VOLUME ...adjusts the volume level 4 p...3.5 mm headphone socket (back of the set) Note: Connecting the headphones will switch off the speakers. 5 CASSETTE RECORDER PAUSE ;...
-
Page 3: Ac Power Supply
Batteries (optional) Open the battery compartment of the set and insert 6 batteries, type R20, UM-1, or D-cells (preferably alkaline). Remove batteries if they are dead or if the set is not going to be used for a long time. Batteries contain chemical substances, so they should be disposed of properly. -
Page 4: Basic Functions
BASIC FUNCTIONS Switching the set on and off Set the POWER control to the desired sound source: CD, TAPE, or BAND (for radio). The set is switched off when the POWER control is set to O O F F F F /TAPE and the keys of the tape deck are released. - Page 5 Playing a CD 1 Set the POWER control to CD. 2 Press OPEN • CLOSE to open the CD compartment. 3 Insert an audio CD (printed side up) and close the CD compartment. ™ The CD player starts and scans the contents list of the CD. Then, the CD player stops.
-
Page 6: Search Backward
CD PLAYER Search backward and forward ∞ Selecting another track Briefly press the ∞ or § button once/several times to skip to the beginning of the current, previous or subsequent track(s). During CD play: CD play continues automatically with the selected track. When CD playback is stopped: Press 2;... -
Page 7: Erasing The Program
CD MODE: Programming track numbers You can select a number of tracks and store these in the memory in the desired sequence. You can store any track more than once. A maximum of 20 tracks can be stored in the memory. 1 When CD play is stopped, select the desired track with ∞... -
Page 8: Cassette Recorder
CASSETTE RECORDER Playing a cassette 1 Set the POWER control to TAPE. 2 Press OPEN·STOP / 9 to open the cassette compartment. 3 Insert a recorded cassette with the open side upwards and close the cassette compartment. 4 Press PLAY 1 to start playback. 5 Press 6 or 5 to rewind or fast forward the tape. -
Page 9: Recording From The Radio
Recording from the CD player – CD synchro start 1 Set the POWER control to CD. 2 Insert a CD and, if desired, program the track numbers. 3 Press OPEN·STOP / 9 to open the cassette compartment. 4 Insert a blank, unprotected cassette and close the cassette compartment. -
Page 10: General Information
GENERAL INFORMATION General maintenance Do not expose the set, batteries, CDs, or tapes to humidity, rain, sand, or excessive heat (caused by heating equipment or direct sunlight). The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated! You can clean the set with a soft, slightly dampened, lint-free cloth. -
Page 11: Troubleshooting
WARNING Under no circumstances should you try to repair the set yourself as this will invalidate the warranty. Problem Possible cause No sound, VOLUME is not adjusted. no power Headphones are connected. Power cord is not securely connected. Batteries are dead. Batteries are inserted incorrectly.
