Philips AZ5737/58 User Manual

Dvd soundmachine.
Hide thumbs

Advertisement

AZ5737
DVD Soundmachine
User manual
PÛÍÓ‚Ó‰ÒÚ‚Ó ÔÓθÁÓ‚‡ÚÂÎfl

Advertisement

Table of Contents

   Also See for Philips AZ5737/58

   Related Manuals for Philips AZ5737/58

   Summary of Contents for Philips AZ5737/58

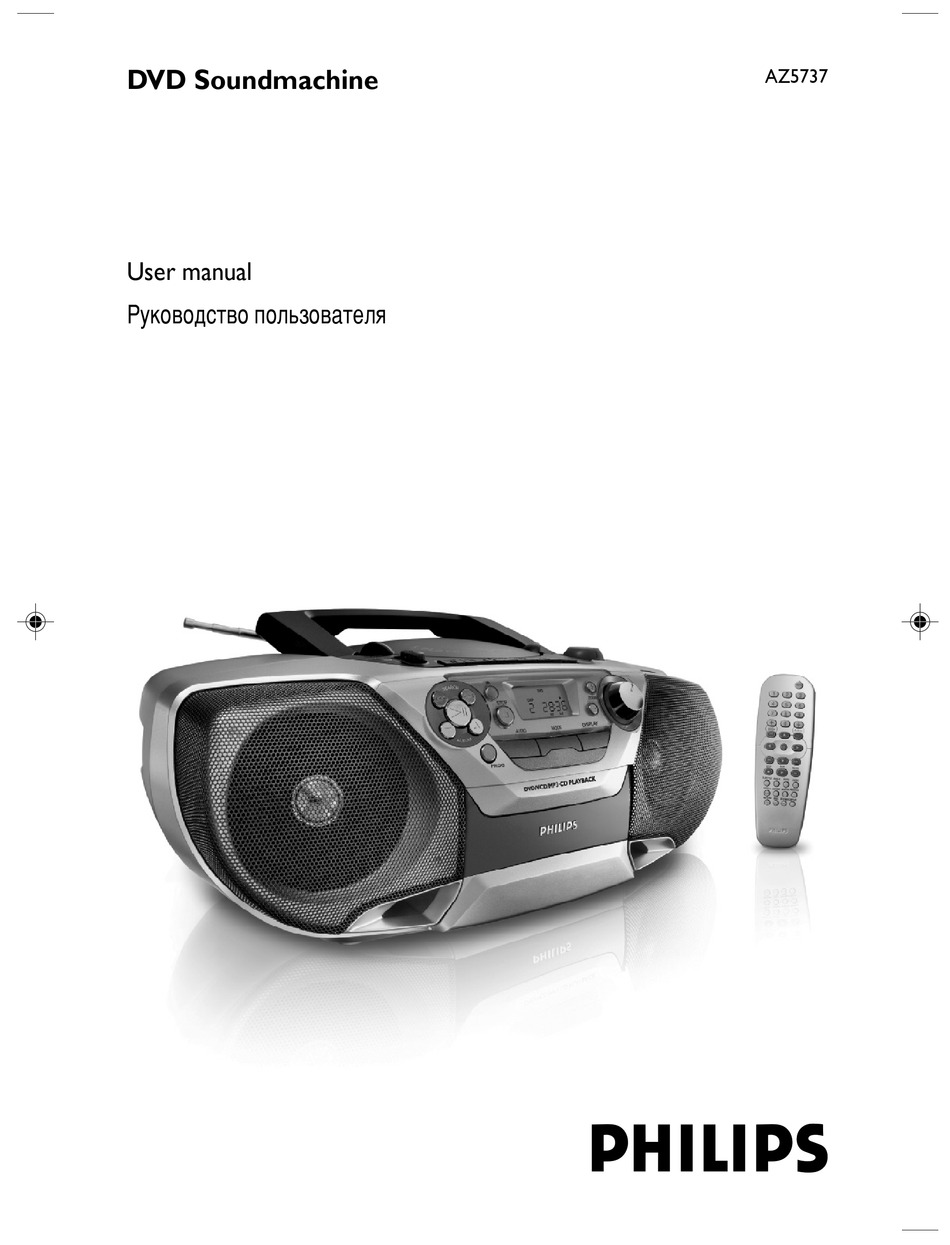

  • Page 1 AZ5737 DVD Soundmachine User manual PÛÍÓ‚Ó‰ÒÚ‚Ó ÔÓθÁÓ‚‡ÚÂÎfl...
  • Page 2 This product incorporates copyright protection technol- ogy that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise au- thorized by Macrovision Corporation.
  • Page 3 Index English ------------------------------------------------ 4 Русский --------------------------------------------- 30...
  • Page 4: Table Of Contents

    Contents General Information Features ... 5 Discs for playback ... 5 Region codes Supplied accessories ... 5 Environmental information ... 6 Care and safety information ... 6 Functional Overview Controls on the system ... 7 Remote control ... 8 Connection Connecting a TV set ...
  • Page 5: General Information

    Features Your DVD Soundmachine with 2.0-channel full analog amplifier creates the same dynamic sound qualities that you find in full-fledged cinemas and incorporates some of the best features in home theater technology. Other features include: Night mode Lets you compress the dynamic range, reducing the difference in loudness between different sounds in Dolby Digital mode.
  • Page 6: Care And Safety Information

    ● After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. Finding a suitable location ●...
  • Page 7: Functional Overview

    ! @#$ Controls on the system 1 LIFT TO OPEN to open the disc cover 2 TUNING to tune to a radio station 3 VOLUME – to adjust volume level 4 DISPLAY – to display disc information during disc playback –...
  • Page 8: Remote Control

    Functional Overview Remote control Notes: – The supplied remote control is for dics operation only. – First, select the disc (DVD/VCD/MP3/CD) source on the set, then select the desired function or 2 for example). 1 MUTE – disables or enables sound output 2 Numeric Keypad (0-9) –...
  • Page 9: Connection

    Connecting a TV set Note: – Connect the system directly to the TV set. ● Use the supplied composite video cable (yellow) to connect the system’s VIDEO OUT jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the TV set.
  • Page 10: Preparations

    Push the source switch to disc mode. Turn on the TV set and set to the correct Video- In channel. You should see the blue Philips DVD background screen on the TV set. ➜ You may go to channel 1 on your TV set, then press the channel down button repeatedly until you see the Video In channel.
  • Page 11: Step 3: Setting Language Preference

    In disc mode, stop playback and press SYSTEM MENU. Select icon and press 4. Press 5 / 4 / keys on the remote control to toggle through the functions and select your preferred option. ➜ Move to and press ➜ Move to “TV System” and press AUTO –...
  • Page 12: Basic Operations

    Power on the TV system and set to the correct Video In channel . ➜ You should see the blue Philips DVD background screen on the TV set. Lift the disc cover to open the disc tray and load a disc respectively.
  • Page 13: Basic Playback Controls

    Basic playback controls To start playback ● Press 38 on the front panel or PLAY the romote control. To interrupt playback ● Press 38 on the front panel or PAUSE 8 on the romote control. ● To resume playback, press 38 on the front panel or PLAY on the romote control again.
  • Page 14: Shuffle Play Mode

    Disc Operations Notes: – When you open the disc tray, the Repeat function will be cancelled automatically. – For SVCD and VCD 2.0 discs, the Repeat function is not available when the PBC function is set to ON. Shuffle play mode In this mode, all tracks in the current directory will be played once in a random order.
  • Page 15: Special Dvd/vcd Features

    Special DVD/VCD features Changing subtitle language This operation only works on DVDs with multiple subtitle languages. ● Press SUBTITLE to select the desired language. Changing the picture scales This operation only works on VCDs/DVDs/ JPEGs with images. For VCD/SVCD/DVD: ● Press ZOOM + or ZOOM - to change the zooming scale: ➜Zooming number will be displayed on the TV screen.
  • Page 16: Moving To Another Title / Chapter

    Disc Operations Moving to another title / chapter Some discs may contain more than one title or chapter. If the disc has a title or chapter menu recorded on it, you can start playback from the selected item. For DVD only Press GOTO on the remote control to display the message of title and chapter, use highlight an item.
  • Page 17: Viewing From Another Angle

    Viewing from another angle If the playing DVD disc is recorded with multiple camera angles , the ANGLE mark on the setup page will be set to ON automatically. This allows you to view the picture from different angles. Angle selection is determined by the disc format. ●...
  • Page 18: Mp3/picture Disc Operations

    MP3/ Picture Disc Operations Playing MP3/Picture disc (Kodak, JPEG) IMPORTANT! – You have to turn on your TV set and set to the correct Video In channel. MP3/JPEG Picture disc Load an MP3/Picture (JPEG) disc. ➜ The disc reading time may exceed 30 seconds due to complexity of the directory/file configuration.
  • Page 19: Dvd Menu Operations

    Using the menu bar You can continue some operations directly via the menu bar on the TV screen without interrupting the disc playback. But when you enter (SETUP MENU), the playback will pause. In disc mode, press SYSTEM MENU. ➜ The menu bar will appear across the top of the TV set screen.
  • Page 20: Using The Setup Menu

    DVD Menu Operations Using the setup menu (user preference settings) This DVD setup is carried out via your TV set, enabling you to customize the DVD System to suit your particular requirements. In disc mode, press SYSTEM MENU. ➜ The menu bar will appear across the top of the TV screen.
  • Page 21: Setting The Screen Saver

    Setting the screen saver If set to ON, the screen saver will be activated when you leave the system in stop or pause mode for 5 minutes. The default setting is ON. If screen saver set to off, in any status, the screen saver will not activate.
  • Page 22: Changing The Password

    DVD Menu Operations Changing the password You can change the four-digit code used as Password. In disc mode, press SYSTEM MENU. Select icon and press 4. Press 5 / 4 / on the remote control to navigate in the menu. ➜...
  • Page 23: Restricting Playback By Setting Parental Level

    Restricting playback by setting parental level Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level. The rating levels are from 1 to 8 and are country specific.
  • Page 24: Tape Operation/recording

    Tape Operation/Recording IMPORTANT! – Before playing a tape, check and tighten slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism. – Store tapes at room temperature and do not put them too close to a magnetic field (for example, a transformer, TV set or speaker).
  • Page 25: Preparation For Recording

    Tape Operation/Recording IMPORTANT! – Recording is permissible if copyright or other rights of third parties are not infringed upon. – Recording is possible only in tape deck. Preparation for recording Load a recordable tape with the open side up and the full spool to the right. Prepare the source to the recorded.
  • Page 26: Specifications

    Specifications AMPLIFIER SECTION Output power (L/R) ... 1 W/channel RMS CD Frequency Response ..100Hz - 10kHz / ±3 dB CD Signal-to-Noise Ratio>50dB (A-WEIGHED) Output Sensitivity Line Out(1kHz 0dB) ... 2±0.2V TUNER SECTION Tuning Range ..FM 87.5 – 108 MHz ...
  • Page 27: Troubleshooting

    WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service center.
  • Page 28 Troubleshooting The system does not respond when the buttons are pressed. The language subtitle cannot be changed when playing a DVD. Sound cannot be heard or is of poor quality Poor radio reception. Recording or playback cannot be made The tape deck door cannot open The remote control does not function.
  • Page 29: Glossary

    Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of wide-screens is 16:9. AUDIO OUT Jacks: Jacks on the back of the DVD System that send audio to another system (TV set, Stereo, etc.).
  • Page 30: Laser Product

    Meet Philips at the Internet http://www.philips.com AZ5737 CLASS 1 LASER PRODUCT Printed in China PDCC-JH/ZC-0722...
