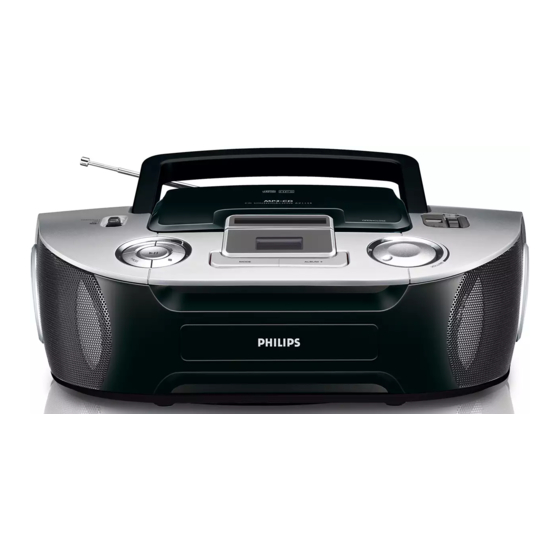

Philips AZ1134/77 Quick Use Manual

Quick Use
Quick Use
Guide
Guide
AZ1134
1
Choosing Power Supply
a Connect the AC power cord to the
AC MAINS inlet and the wall socket.
-OR-
b Open the battery door and insert 6
x C batteries (not included).
2
Listening to the Radio
a Push the source selector to
FM or MW to select your
waveband.
b Turn TUNING to tune to a
station.
3
Playing a disc
This CD player Audio Discs
including CD-Recordables and
CD-Rewritables, and MP3-CD.
a Adjust the source selector to
CD/MP3.
b Open the disc door.
c Insert a disc with the printed
side facing up and close the
door.
d Press 2; to start playback.
e To stop disc playback, press 9.
1a
AUX IN
1b
110V-
127V
220V-
240V
6 x R14 • UM-2 • C-CELLS
R-14, UM-2 or C-cells
Voltage selector
(not included)
Adjust to match the local
voltage 110/220V before
plugging in the set
2a
3a 3b
3d
3e
Source selector
Slide to select
function: CD/MP3,
radio (FM/MW)
38
Press to start or
pause disc playback
§ , ∞
Briefly press to skip to
the beginning of the
current/previous/
later disc track;
During disc playback,
press and hold to find a
particular passage
backward/forward
PROG
Use to program disc
tracks
9
2b
Press to stop disc
playback or erase a
disc program
Telescopic antenna
Improves FM reception
Battery door
OPEN•CLOSE
Push to open the disc
door
TUNING
Turn to tune to a
station
VOLUME
Turn to adjust volume
level
Display
Shows disc functions
ALBUM+
For MP3-CD: Press to
select albums
MODE
Press to select different
play modes, such as
REPEAT or SHUFFLE
(random order)
AUX IN
AC MAINS
inlet for the AC power
cord.
