Safety Instructions
Please read carefully before installing or operating.
•
Read all instructions carefully
•
Heed all warnings
•
Assure that the speaker is securely mounted
•
Always assure amplifier power is off before making any connections
•
Keep instructions for future reference
•
Should any questions arise after reading this document, please call Atlas Sound Tech Support at 800-876-3333
Hearing Damage
CAUTION: All professional loudspeaker systems are capable of generating very high sound pressure levels. Use care with placement and operation to
avoid exposure to excessive levels that can cause permanent hearing damage.
Suspension and Mounting
Installing speaker systems requires training and expertise. Improper speaker installation may result in injury, death, equipment damage, and legal
liability. Installation must be carried out by fully qualified installers, in accordance with all required safety codes and standards at the place of
installation.
Legal requirements for overhead installation vary by municipality, please consult the Building Inspector office before installing any product and
thoroughly check any laws and bylaws prior to installation. Installers that lack the skills, training, and proper ancillary equipment to install a speaker
system should not attempt to do so.
Installation
1.
Run the wiring from the power amplifier to the location desired for mounting the ALA Series speaker.
2. Attach the lower wall bracket to the wall. Use a level to be certain that the wall bracket is straight. Secure the wall bracket to the wall. Be sure to
use the appropriate wall anchors when attaching the bracket. Use all four screw holes for maximum integrity and safety.
Note: Hardware for attaching the wall bracket to the wall is not included.
ALA10T
Installation Instructions

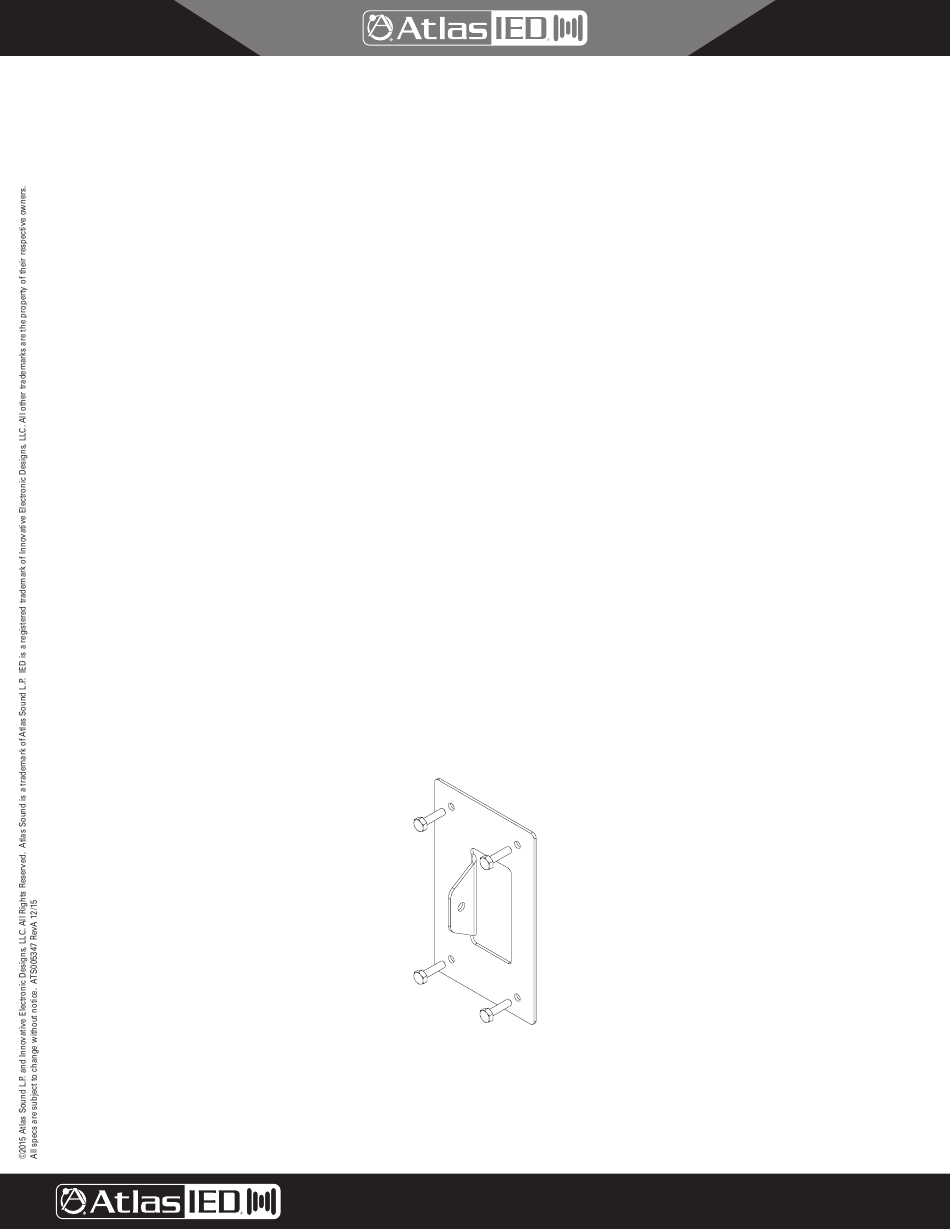

Fig. 1
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
1/6
AtlasIED.com
Advertisement
Table of Contents
Summary of Contents for Atlas LED ALA10T
-
Page 1: Installation Instructions
ALA10T Installation Instructions Safety Instructions Please read carefully before installing or operating. • Read all instructions carefully • Heed all warnings • Assure that the speaker is securely mounted • Always assure amplifier power is off before making any connections •... - Page 2 " center to center. Two short speaker brackets will be used; one on the top and one on the bottom. C. For an angled installation, please refer to the table below to determine the center to center distance for the wall brackets. ALA10T ANGLE C-C IN 11.2°...
- Page 3 Fig. 3a and 3b (Sliding Mount Block shown not attached to speaker for clarity) 4. Attach the short speaker bracket to the wall bracket. A. Position the short speaker bracket over the lower sliding mount block as shown in Fig. 3a. B.
- Page 4 6. Establish electrical connection. All models include a built-in, high efficiency 60 Watt 70.7V transformer with 7 .5, 15, 30, and 60 Watt taps as shown in Fig. 5. Note: A removable jumper and additional pole on the terminal block is included for transformer operation. The jumper must be removed for low impedance (8Ω...
- Page 5 ALA10T Dimensions 2.36 60.0 32.99 3.15 80.0 4.49 114.0 21.0 4.61 117.0 5.43 137.9 22.5 DETAIL A 15.0 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com FAX (800) 765-3435 ENNIS, TEXAS 75119 U.S.A.
- Page 6 1-800-876-3333 • support@atlasied.com • AtlasIED.com 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com FAX (800) 765-3435 ENNIS, TEXAS 75119 U.S.A.
