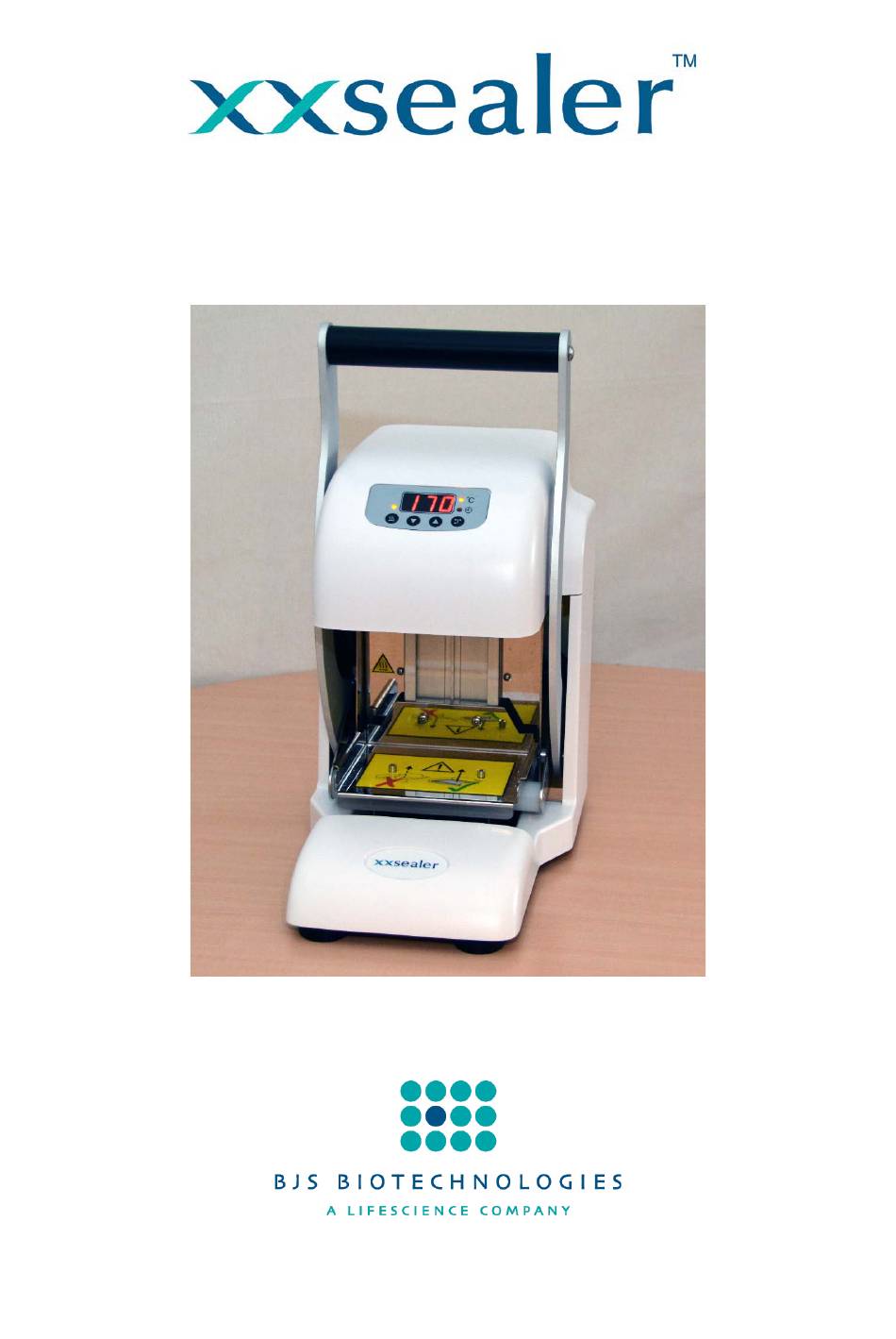

- Page 1 PCR plate heat sealer with programmable temperature and dwell User Manual This Manual Copyright © 2014 BJS Biotechnologies...
- Page 2 Document: XP-5003-01-1 Revision: 1.0 Jan 2014 xxpress® xxplates, and xxsealer are the brand names for BJS Biotechnologies own range of PCR thermal cycler products and accessories. For further details please visit our web site. www.xxpressPCR.com All sales and technical enquiries should be addressed to:...
-
Page 3: Table Of Contents
Unit Installation ..................14 Unit Operation ..................16 User Display and Controls ..............16 Operating the Controls of the xxsealer ..........17 Performing an xxplate Sealing Operation ..........18 Switching Off the Audible Alert .............. 20 Maintenance and Servicing ..............21 Replacing the Unit Fuse ................ -
Page 4: Glossary Of Terms And Abbreviations
Well A single sample cavity in a Microtitre plate, PCR plate or Deepwell plate BJS Bio PCR test plate for the xxpress real- xxplate time thermal cycler. Available in 24, 54, and 96 well formats. XXSEALER USER MANUAL - 1.0... -
Page 5: Symbols Used In This Instruction Manual
Indicates a Risk of Crush hazard due to moving parts which could, if not avoided, result in minor or moderate injury. CAUTION Advisory note or other useful information. Refer to “Section NN” for more details. XXSEALER USER MANUAL - 1.0... -
Page 6: Unit Description
P a g e 3 Unit Description The xxsealer provides a safe and controlled method for sealing plastic sample plates to protect the samples from evaporation and contamination during the heating and cooling of a PCR process. The sealer is adjustable for both the sealing time and temperature, and gives a visual countdown display during the sealing process for consistent results. -
Page 7: Table 3: Plate And Adaptor Block Types
P a g e The xxsealer unit is designed to be used with a range of sample plates and consumables – some of which are listed below: Table 3: Plate and Adaptor Block Types Adaptor Block Type Suitable Plate Types... -
Page 8: Table 4: Recommended Film And Foil Types
Films Clear Polyester/Polypropylene Laminate Clear Polymer Thin Clear Polymer Foils Foil Polypropylene Laminate Foil Laminate Foil Note: The only film approved for use with xxplates is the BJS Bio’s xxplate sealing film. Part number HS-3001-01-1. XXSEALER USER MANUAL - 1.0... -
Page 9: Technical Specification
Temperature Range Relative Humidity Range 20% to 95% non-condensing Sealing Parameters 125 to 200 °C in 1 °C steps Temperature Range Timer Range 1.0 to 9.0 seconds in 0.5 second steps Audible Alert On or Off XXSEALER USER MANUAL - 1.0... -
Page 10: Safety Precautions And Limitations Of Use
It is essential that all users of this equipment have fully read and understood the following safety precautions and limitations of use before installing or operating the xxsealer unit. IMPORTANT The protection provided by this equipment may be impaired if it is not used in a manner described in this manual. - Page 11 P a g e | 11 Unit Installation and Operating Environment The xxsealer unit is designed for indoor laboratory use only. The acceptable operating temperature range is 18ºC to 30ºC, with a relative humidity of 20% to 80% non-condensing, at a DANGER maximum altitude of 2200m above sea level.
- Page 12 Never use the unit to seal any explosive, volatile or highly DANGER reactive substances or chemicals. There is a possible finger crush hazard due to the moving parts of the handle and plate carrier. Care should be taken when operating the handle. CAUTION XXSEALER USER MANUAL - 1.0...
- Page 13 Always follow the cleaning and decontamination procedures CAUTION specified in Sections 8.3 and 8.4 of this instruction manual. Do not autoclave any part of the unit or its accessories. CAUTION XXSEALER USER MANUAL - 1.0...
-
Page 14: Unit Installation
Please retain all packaging for future transportation and storage of the unit and its accessories. The xxsealer unit should be installed in a location which meets the following requirements: • Safe and suitable operating environment (see Section 5) •... - Page 15 4. Push the holder back into the inlet mode Install and test the xxsealer unit using the following procedure: 1) Place the unit on the suitably selected working surface (as specified above), ensuring that the ventilation holes on the rear of the unit are not obstructed.
-
Page 16: Unit Operation
7 Unit Operation Please ensure that you have read and fully understood all of the Safety Precautions and Limitations of Use listed in Section 5 before attempting to operate the xxsealer unit. WARNING 7.1 User Display and Controls The unit’s user interface consists of a large 3-digit LED display, four control buttons and three status indicator LEDs. -
Page 17: Operating The Controls Of The Xxsealer
(depending on the mode). When the heater plate is up to temperature (within 2ºC of the set-point) the Heater LED will remain constantly on, and the xxsealer is ready to begin sealing. The operator may set a precise temperature and seal time for the sealing operation. -
Page 18: Performing An Xxplate Sealing Operation
LED will stop flashing and remain constantly on). 4) Fit the BJS xxplate Adapter Block into the PCR 96 Well Skirted Plate Adapter Block (both provided with the xxsealer) and locate in the Adapter Block Carrier 5) Load the xxplate onto the xxplate Adapter Block locating it onto the sprung pins. - Page 19 Various types of plastic sample plate may be loaded onto a plate carrier and thermal sealed using a suitable foil or clear film. See Section 3 for details. XXSEALER USER MANUAL - 1.0...
-
Page 20: Switching Off The Audible Alert
4) Now press the DOWN button to turn the alert off (display shows “00”) or the UP button to turn the alert back on (display shows “01”). 5) Finally, press the MODE button to store the new setting. XXSEALER USER MANUAL - 1.0... -
Page 21: Maintenance And Servicing
P a g e | 21 8 Maintenance and Servicing Although the xxsealer unit does not require any scheduled maintenance or servicing, the operator should regularly clean and inspect the unit for any detects, as described in Section 8.3 below. -
Page 22: Over Temperature Safety Cut-Out
In the unlikely event of a fault condition, this fuse will permanently disable the heater to protect the user and unit from injury and damage. If this occurs, the heater plate will remain cold and the xxsealer will need to be returned for repair. -
Page 23: Decontamination Procedure
(such as Virkon). 8.5 Transportation and Storage The xxsealer unit and its accessories should be thoroughly decontaminated using the procedure detailed in Section 8.4 before being placed in its original packaging for transportation or storage. - Page 24 I certify that I have decontaminated the product as per the above procedure. Decontaminant Used: I certify that the product has not been exposed to any chemical or biological materials. Title: Name: Signature: Date: Telephone: Email: XXSEALER USER MANUAL - 1.0...
-
Page 25: Warranty And Returns
Unspecified use or unauthorised modification of any part of the xxsealer unit or its accessories or the use or attachment of any adaptor or peripheral not supplied, specified or sanctioned by BJS NOTE Biotechnologies will invalidate this warranty. -
Page 26: Product Disposal
Section 8.4 before disposal or shipping. Do not dispose of this product into unsorted municipal waste or public landfill. Please contact your distributor (or BJS Biotechnologies at the address on Page 2 of this manual) for details of how to correctly dispose of this product.
