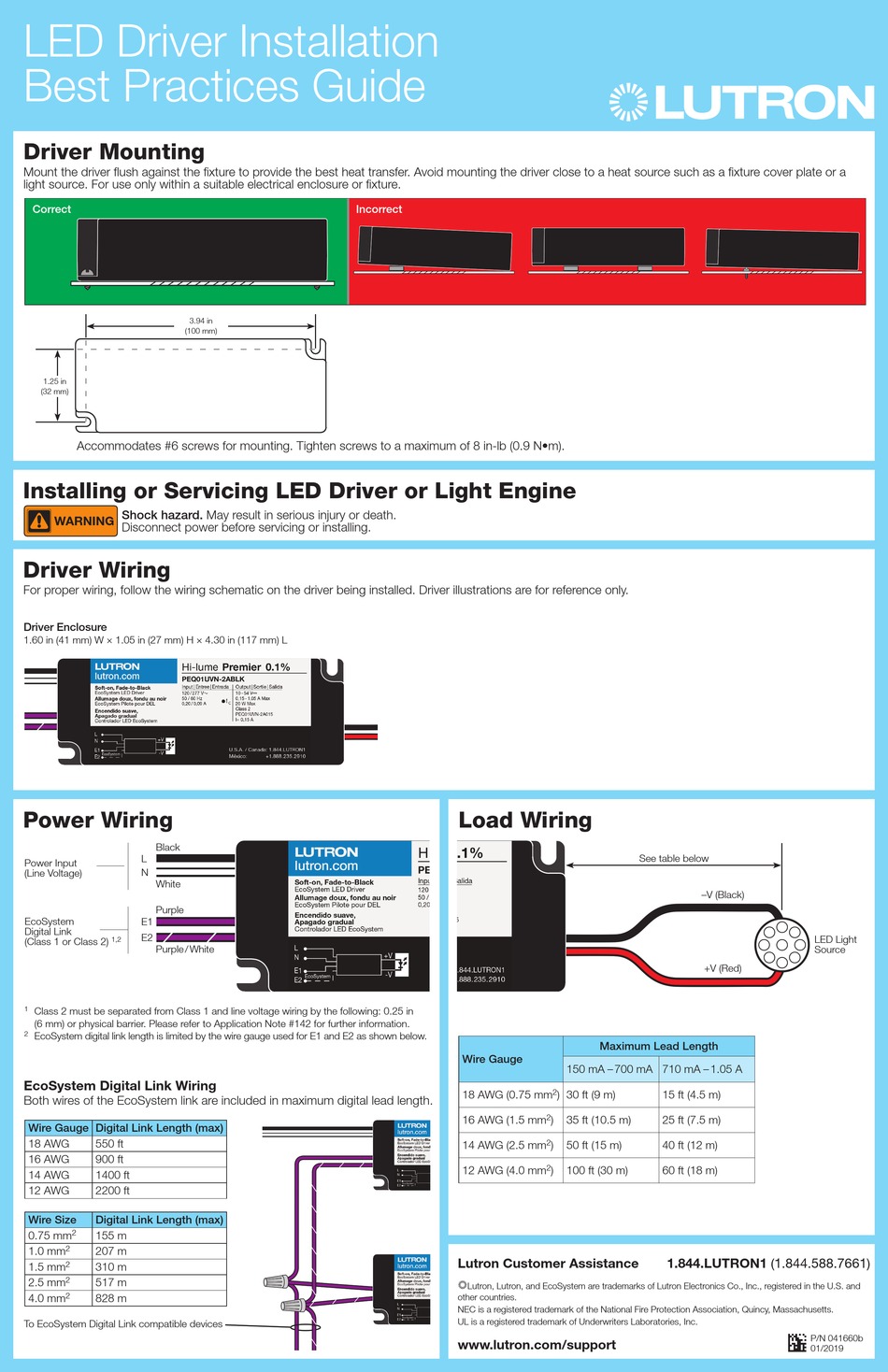

LED Driver Installation
Best Practices Guide
Driver Mounting
Mount the driver flush against the fixture to provide the best heat transfer. Avoid mounting the driver close to a heat source such as a fixture cover plate or a
light source. For use only within a suitable electrical enclosure or fixture.
Correct
3.94 in
(100 mm)
1.25 in
(32 mm)
Accommodates #6 screws for mounting. Tighten screws to a maximum of 8 in-lb (0.9 N•m).
Installing or Servicing LED Driver or Light Engine
Shock hazard. May result in serious injury or death.
WARNING
Disconnect power before servicing or installing.
Driver Wiring
For proper wiring, follow the wiring schematic on the driver being installed. Driver illustrations are for reference only.
Driver Enclosure
1.60 in (41 mm) W × 1.05 in (27 mm) H × 4.30 in (117 mm) L
Power Wiring
Black
L
Power Input
N
(Line Voltage)
White
Purple
EcoSystem E1
Digital Link
E2
(Class 1 or Class 2) 1,2
Purple / White
1 Class 2 must be separated from Class 1 and line voltage wiring by the following: 0.25 in
(6 mm) or physical barrier. Please refer to Application Note #142 for further information.
2
EcoSystem digital link length is limited by the wire gauge used for E1 and E2 as shown below.
EcoSystem Digital Link Wiring
Both wires of the EcoSystem link are included in maximum digital lead length.
Wire Gauge Digital Link Length (max)
18 AWG 550 ft
16 AWG 900 ft
14 AWG 1400 ft
12 AWG 2200 ft
Wire Size Digital Link Length (max)
0.75 mm 2 155 m
1.0 mm 2 207 m
2
1.5 mm 310 m
2
2.5 mm 517 m
4.0 mm 2 828 m
To EcoSystem Digital Link compatible devices
Incorrect
Load Wiring
Wire Gauge
18 AWG (0.75 mm
16 AWG (1.5 mm
14 AWG (2.5 mm
12 AWG (4.0 mm
Lutron Customer Assistance
) Lutron, Lutron, and EcoSystem are trademarks of Lutron Electronics Co., Inc., registered in the U.S. and
other countries.
NEC is a registered trademark of the National Fire Protection Association, Quincy, Massachusetts.
UL is a registered trademark of Underwriters Laboratories, Inc.
www.lutron.com/support
See table below
–V (Black)
+V (Red)
Maximum Lead Length
150 mA – 700 mA 710 mA – 1.05 A
2
) 30 ft (9 m) 15 ft (4.5 m)
2
) 35 ft (10.5 m) 25 ft (7.5 m)
2
) 50 ft (15 m) 40 ft (12 m)
2
) 100 ft (30 m) 60 ft (18 m)
1.844.LUTRON1 (1.844.588.7661)
LED Light
Source
P/N 041660b
