Summary of Contents for Philips FWM372/05

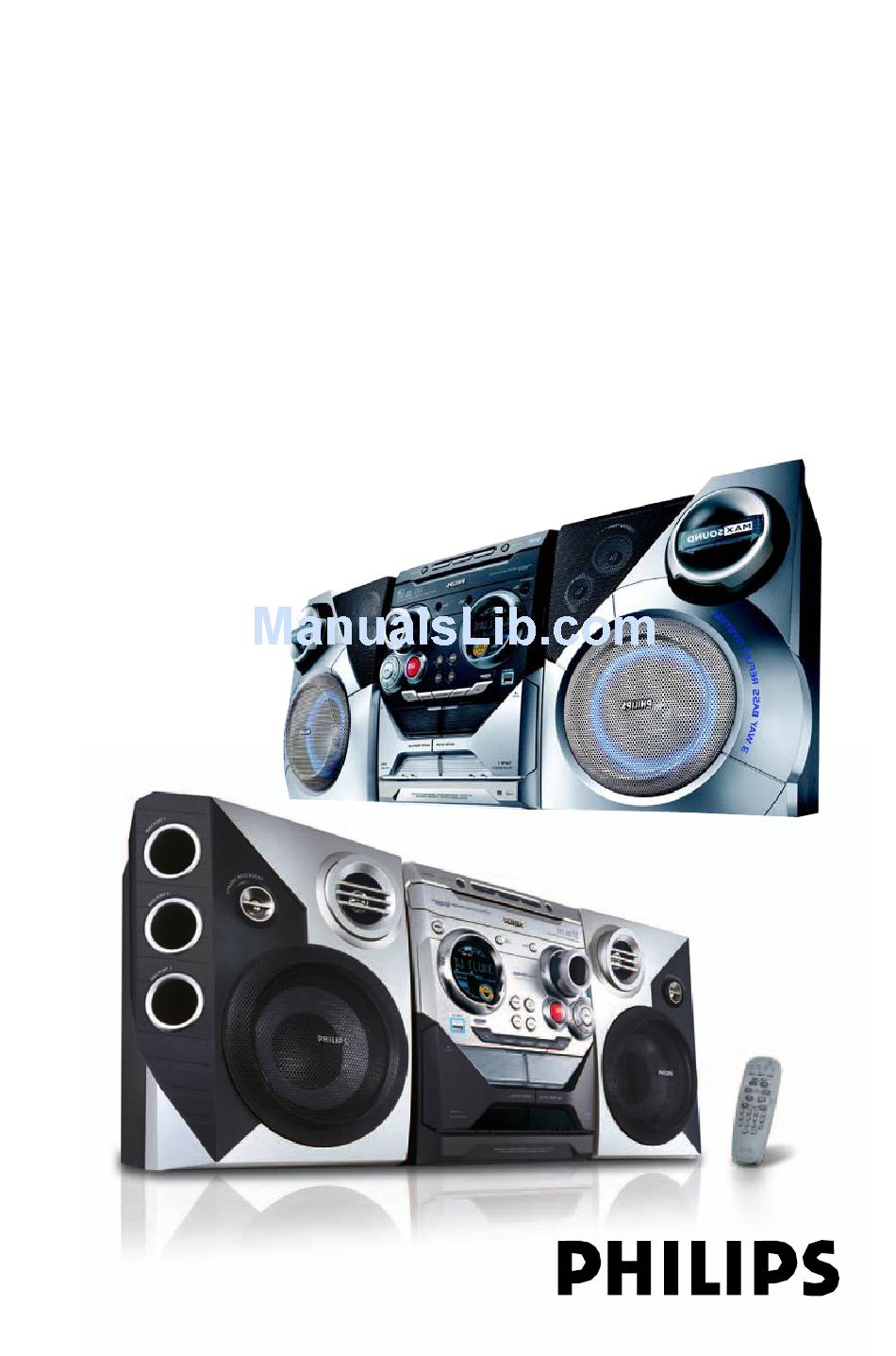

- Page 1 MP3-CD Mini Hi-Fi System User manual Manuel d'utilisation Manual del usuario Benutzerhandücher Gebruikershandleidingen Manuale per l'utente Användarhandböckerna Brugermanual FWM372 FWM572...
-
Page 2: How To Connect Plug
See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972. Italia DICHIARAZIONE DI CONFORMITA’ Si dichiara che l’apparecchio MCD510 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548. Fatto a Eindhoven... - Page 3 ™ ª ≥ & § ∞ ª ≤ £ ¡ & •...
-
Page 4: Plug And Play
Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten. Klass 1 laseraparat Varning! Om apparaten används på... - Page 5 Index English ------------------------------------------------ 6 Français -------------------------------------------- 31 Español --------------------------------------------- 56 Deutsch --------------------------------------------- 81 Nederlands -------------------------------------- 111 Italiano -------------------------------------------- 140 Svenska ------------------------------------------- 168 Dansk --------------------------------------------- 194 Suomi --------------------------------------------- 222 Português ---------------------------------------- 248 ----------------------------------------- 275...
-
Page 6: Table Of Contents
Contents General Information Supplied accessories ... 7 Environmental information ... 7 Safety information ... 7 Preparations Rear connections ... 8–9 Power Antennas Connection Speakers Connection Optional connection ... 9 Connecting a USB device or memory card Inserting batteries into the remote control ... 9 Controls Controls on the system and remote control ... -
Page 7: General Information
Supplied accessories – 2 speaker boxes – remote control – MW loop antenna – FM wire antenna – AC power cord Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). -
Page 8: Power
Preparations Rear connections The type plate is located at the rear of the system. For users in the U.K.: please follow the instructions on page 2. A Power – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. -
Page 9: Speakers Connection
FM Antenna ● For better FM stereo reception, connect an outdoor FM antenna to the FM ANTENNA terminal. C Speakers Connection Front Speakers Connect the speaker wires to the SPEAKERS terminals, right speaker to "R" and left speaker to "L", coloured (marked) wire to "+" and black (unmarked) wire to "–". -
Page 10: Controls On The System And Remote Control
Controls (illustrations on page 3) Controls on the system and remote control ECO POWER/STANDBY ON B – to switch the system on or to Eco power/normal standby mode. DISC 1/2/3 (CD 1/2/3) – to select a disc tray for playback. Source selection –... - Page 11 – to select different brightness for the display screen : DIM 1, DIM 2, DIM 3 or DIM OFF. OPEN 3 – to open the tape deck door. PROGRAM for CD/ MP3-CD . to programme disc tracks. for Tuner ... to programme preset radio stations.
-
Page 12: Basic Functions
Basic Functions IMPORTANT! Before you operate the system, complete the preparation procedures. Plug and Play (for tuner installlation) Plug and Play allows you to store all available RDS stations and radio stations automatically. First time setup/power up When you turn on the main supply, "AUTO INSTALL - PRESS PLAY"... -
Page 13: Demonstration Mode
Demonstration mode The system has a demonstration mode that shows the various features offered by the system. To activate the demonstration ● In standby mode, press and hold 9 on the system for 5 seconds to switch to demonstration. To deactivate the demonstration ●... -
Page 14: Sound Control
Basic Functions Sound control For optimal sound listening, select only one of the following navigation sound controls at a time : MAX, DSC or VAC. MAX Sound MAX sound provides the best mixture of various sound features (DSC, VAC, DBB, for example). ●... -
Page 15: Cd/Mp3-Cd Operations
IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets, etc., as offered on the market, because they may jam the changer mechanism. – Do not load more than one disc into each tray. -
Page 16: Playing Discs
CD/MP3-CD Operations Press OPEN•CLOSE to close the disc tray. ➜ "READING DISC" scrolls. The selected disc tray, total number of tracks and the playing time will appear on the display. ➜ A lighted button indicates that a disc is loaded on the disc tray. -
Page 17: Different Play Modes: Shuffle And Repeat
Different play modes: SHUFFLE and REPEAT You can select and change the various play modes before or during playback. Press REPEAT on the remote control to select: ➜ "REPEAT TRACK" – to repeat playback of the current track. ➜ "REPEAT DISC" – to repeat playback of the current disc. -
Page 18: Radio Reception
Radio Reception Tuning to radio stations Press TUNER to select TUNER mode. ➜ "TUNER" is displayed. A few seconds later, the current radio frequency will appear on the display. Press TUNER again to select the desired waveband : FM or MW. Press and hold ALBUM-/+ à... -
Page 19: Manual Preset Programming
Manual Preset Programming Tune to your desired radio station (refer to “Tuning to radio stations”). Press PROGRAM. ➜ starts flashing. PROG ➜ The next available preset number is displayed for selection. To store the radio station to another preset number ●... -
Page 20: Setting The Rds Clock
Radio Reception Setting the RDS clock Some RDS radio station may be transmitting a real clock time at an interval of every minute. It is possible to set the clock by using a time signal which is broadcast together with the RDS signal. Press CLOCK•TIMER and RECORD/ NEWS. -
Page 21: Tape Operation/Recording
IMPORTANT! – Before playing a tape, check and tighten slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism. – C-120 tape is extremely thin and is easily deformed or damaged. It is not recommended for use in this system. -
Page 22: Rewinding / Fast Forwarding
Tape Operation/Recording Rewinding / Fast forwarding Stop playback, press à or á. ➜ The tape will stop automatically at the end of rewinding or fast forwarding. Press 9 to stop rewinding or fast forwarding. Note: – During rewinding or fast forwarding of a tape, it is also possible to select another source (CD or TUNER, for example). -
Page 23: Cd/Usb Synchronised Start Recording
CD/USB Synchronised start recording Select CD or USB source. ● Press TITLE-/+í/ë to select the desired track, then press RECORD to start recording. ● You can programme the tracks in the order you want them to be recorded (refer to “CD Operation - Programming the disc tracks”). -
Page 24: External Sources
External Sources Connecting external equipment Connect the audio out terminals of the external equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder) to the AUX terminals of your system. Press AUX to select external equipment. ➜ "AUX" is displayed. Note: –... - Page 25 How to organize your MP3/WMA files on the USB mass storage device This Hi-Fi system will browse the MP3/WMA files in the folders/sub-folders/titles order. Example: Root Title 001 Title 002 Title 003 Album 01 Title 001 Title 002 Title 003 Album 02 Album 03 Title 001...
-
Page 26: Clock/Timer
Clock/Timer IMPORTANT! – Use CLOCK•TIMER on the set to set the clock and timer. View clock The clock (if it is set) will be shown in standby mode. To view the clock in any source mode (CD or TUNER for example) ●... -
Page 27: Timer Setting
Timer setting The system can switch on to CD, TUNER, or TAPE 2 mode automatically at a preset time, serving as an alarm to wake you up. IMPORTANT! – Before setting the timer, ensure that the clock is set correctly. –... -
Page 28: Specifications
Specifications AMPLIFIER Output power FWM372 ... 2 x 120 W MPO ... 2 x 60 W RMS(1) FWM572 ... 2 x 220 W MPO ... 2 x 110 W RMS(1) Signal-to-noise ratio ... 67 dB A (IEC) Frequency response ... 50 – 15000 Hz Input sensitivity AUX/CDR In ... -
Page 29: Maintenance
Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help. - Page 30 Radio reception is poor. Recording or playback cannot be made. The tape deck door cannot open. The system does not react when buttons are pressed. Sound cannot be heard or is of poor quality. The left and right sound outputs are reversed.
