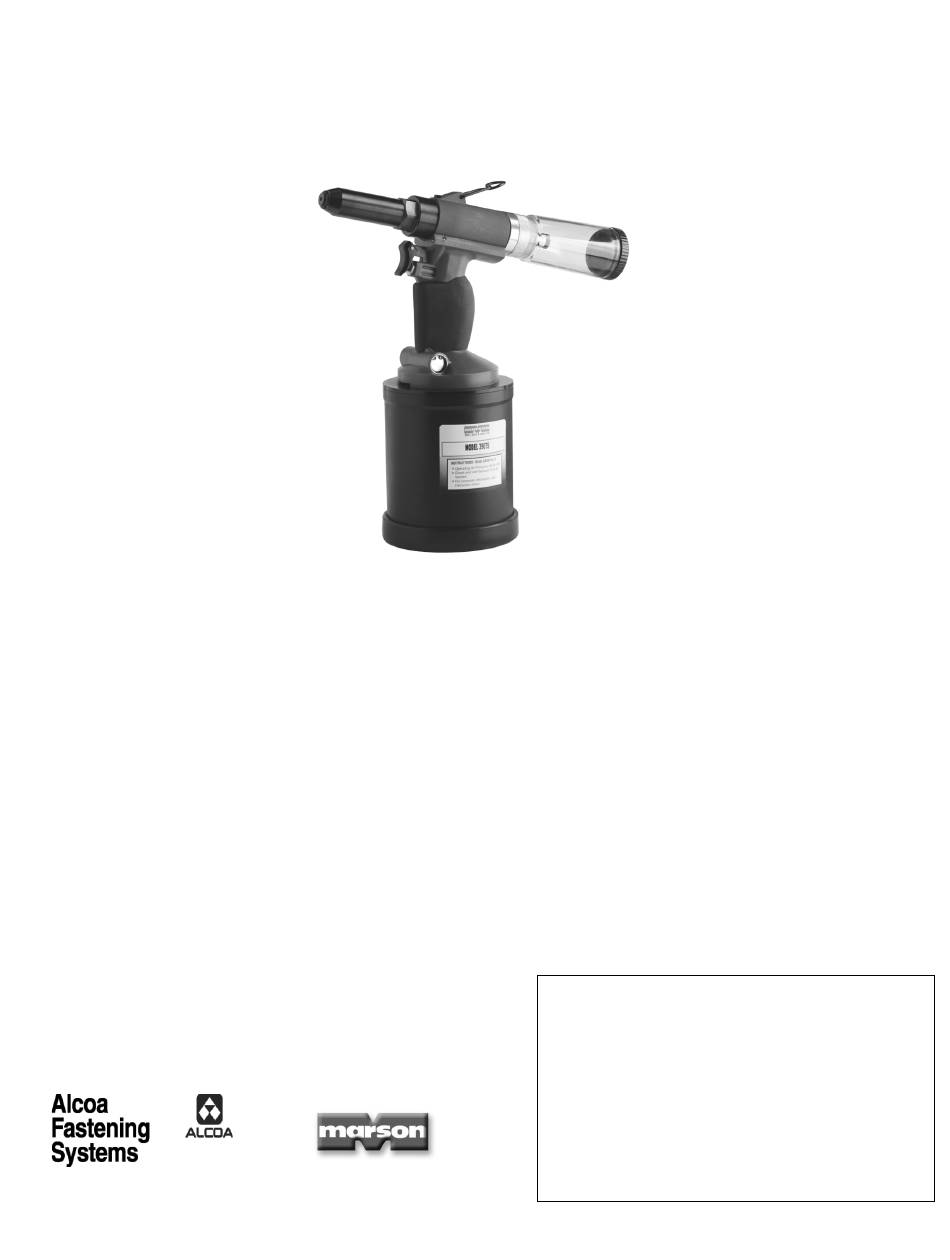

Marson is making installation easier than ever with the new
It's the one-and-only tool needed for single-pull installations of
open-end blind and structural rivets in all alloys from 3/16"- 1/4" *
Features:
Capacity: up to ¼"* (6.350mm)
Stroke length: 1.1250" (28.575mm)
Pulling force: 4,600 lbs. (20.5kn)
Air Consumption: 4CFM
Dimensions: 12"X12.79"X4.99"
Weight: 4.8lbs. (2.177 kg)
* Does not include Huck® BOM® structural blind fasteners.

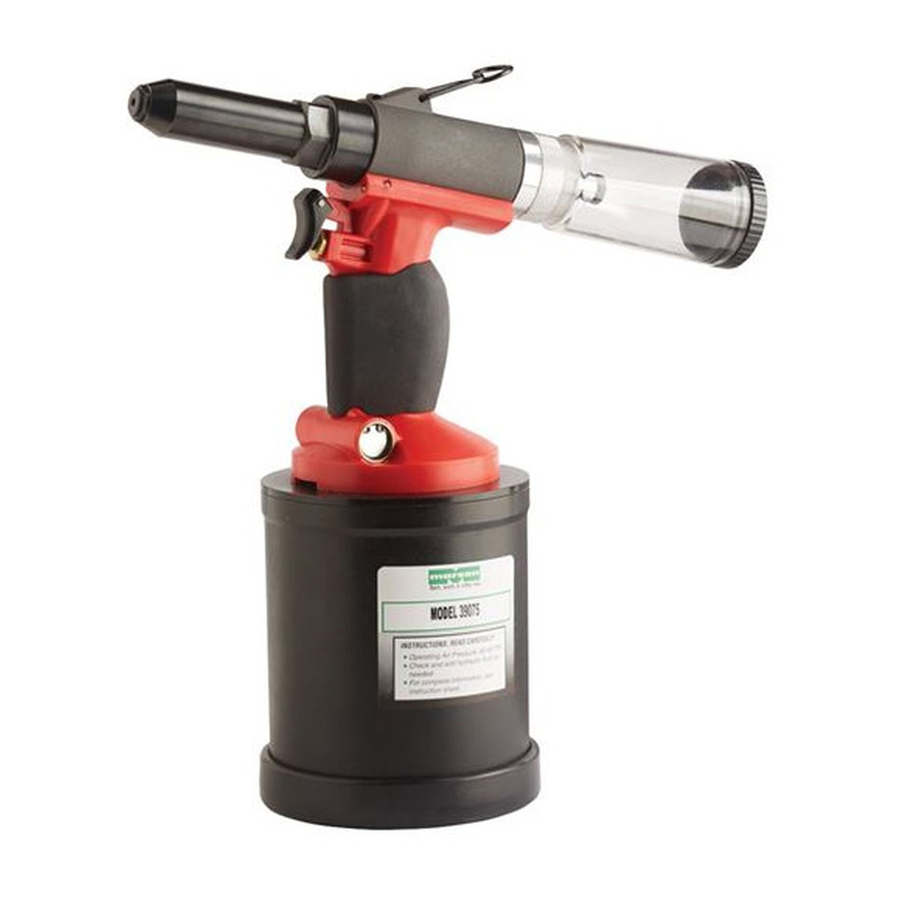

M39075
(
I F-‐1)
Integra-‐Fuse™ Rivet
T ool
Marson
®
Integra-Fuse™ (IF-1)
AFS
I ndustrial
D istribution
G roup
1925
N .
M acArthur
D rive
Tracy,
C A
9 5376
AFSIndustrial.com
Customer
S ervice:
8 00-‐826-‐2884
Tool
R epair
D ept:
8 00-‐826-‐2884
x
3
032
1
Advertisement
Related Manuals for Marson Integra-Fuse M39075
Summary of Contents for Marson Integra-Fuse M39075
- Page 1 M39075 ( I F-‐1) Integra-‐Fuse™ Rivet T ool Marson is making installation easier than ever with the new Marson Integra-Fuse™ (IF-1) ® It’s the one-and-only tool needed for single-pull installations of open-end blind and structural rivets in all alloys from 3/16”- 1/4” * Features: Capacity: up to ¼”* (6.350mm)
- Page 2 WARNING: ALWAYS WEAR SAFETY GLASSES WHEN OPERATING AND PERFORMING MAINTENANCE ON TOOL AIR FEED Use only compressed air. Check airline for damage from humidity & contaminants. In order to protect the tool from premature wear, we recommend the use of air regulator and moisture filter Recommended Air Pressure is 85 –...
- Page 3 How t o c hange j aws 1. Remove the frame head (part #38, fig.1). 2. Using two wrenches, separate front jaw housing (part #39) from rear jaw housing (part #42, fig. 2). 3. Remove and replace part #40 (fig. 3 jaws) and re-assemble part #39 back onto tool (fig. 2). 4.
- Page 4 IF-‐1 T ool B reakdown 4 ...
- Page 5 IF-‐1 P arts L ist Ref # AFS P art # Part N ame Qty Ref # AFS P art # Part ...
-
Page 6: Troubleshooting Tips
Troubleshooting T ips PROBLEM CAUSE SOLUTION Wrong size rivet Check nosepiece size versus rivet Rivet jammed Remove the frame head and clear Check for material in the jaw debris from the inside housing Remove the mandrel collector and No suction Shut off valve turned off turn the vacuum adjustment knob... -
Page 7: Important Warranty Information
IMPORTANT WARRANTY INFORMATION Alcoa Fastening Systems (AFS), makers of Huck, Marson and Recoil brand fasteners, tools and accessories warrants that this tool will be free from defects in materials and workmanship under normal service and use for ninety (90) days from the date of purchase. This warranty applies to the purchaser of the tool for original use only.
