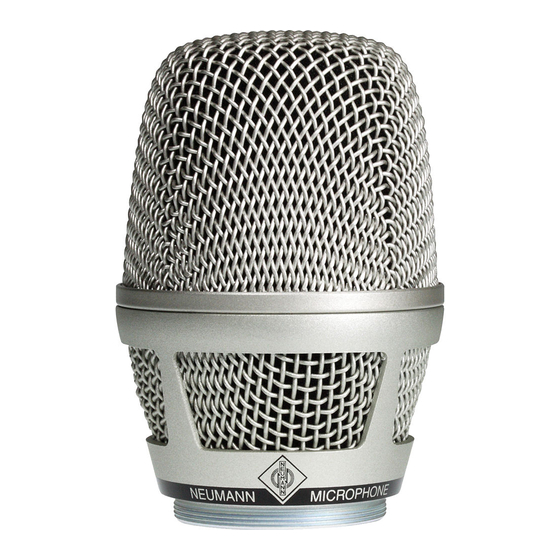

Neumann.Berlin KK 204 Instruction Manual

Quick Guide Guia rápido
Kurzanleitung Beknopte handleiding
Guide rapide Krótka instrukcja obsługi
Guida rapida
Snabbguide
Guía de inicio rápido
Kort vejledning
Pikaohje
快速指南
Γρήγορος οδηγός
クイックガイド
Kısa Kılavuz
퀵 가이드
Краткая инструкция
· . · ·
( ) / - · -
@ . · . .
KK 104 S
KK 105 S
*Sennheiser SKM 5200/5000
Instruction manual | Bedienungsanleitung | Notice d'emploi | Istruzioni per l'uso | Instrucciones de manejo |
Manual de instruções | Gebruiksaanwijzing | Instrukcja obsługi | Bruksanvisning | Betjeningsvejledning |
Käyttöohje | Οδηγίε λειτουργία | Kullanım kılavuzu | Инструкция по эксплуатации | 使用说明书 |
取扱説明書 | 사용 설명서 |
www.neumann.com | KK 104 S | KK 105 S | KK 204 | KK 205
Specifications
Directional pattern
Frequency range
Sensitivity at 1 kHz into 1 kΩ
Signal-to-noise ratio, CCIR 1) (rel. 94 dB SPL)
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL)
1)
Equivalent noise level, CCIR
1)
Equivalent noise level, A-weighted 1)
Maximum SPL for THD ≤ 0.5%
2)
Weight (incl. transmitter + power supply unit)
Dimensions (diameter / length)
Operating temperature range
Storage temperature range
Humidity range
1) according to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
KK 204
KK 205
*Sennheiser SKM 6000/SKM 9000
KK 104 S KK 105 S
Cardioid Supercardioid
80 Hz - 20 kHz 80 Hz - 20 kHz
1.7 mV/Pa –55.4 dBV ± 1 dB 1.3 mV/Pa –58 dBV ± 1 dB
52 dB 50 dB
63 dB 61 dB
42 dB 44 dB
31 dB-A 33 dB-A
148 dB 150 dB
approx. 325 g approx. 325 g
48 mm / 257 mm (incl. transmitter) 48 mm / 257 mm (incl. transmitter)
0 °C - +70 °C (32 °F - 158 °F) 0 °C - +70 °C (32 °F - 158 °F)
−20 °C - +70 °C (−4 °F - 158 °F) −20 °C - +70 °C (−4 °F - 158 °F)
max. 90 % at +20 °C max. 90 % at +20 °C
2) measured as equivalent el. input signal
*Sennheiser SKM 2000
SKM 300 G4/SKM 500 G4
SKM 300 G3/SKM 500 G3
KK 204/205
Cardioid/Supercardioid
40 Hz - 20 kHz
2.8 mV/Pa –51 dBV ± 1 dB
59 dB
70 dB
35 dB
24 dB-A
150 dB
approx. 500 g
55 mm / 272 mm (incl. SKM 2000)
0 °C - +70 °C (32 °F - 158 °F)
−20 °C - +70 °C (−4 °F - 158 °F)
max. 90 % at +20 °C
