PRIOR TO THE SET-UP OF BRAKEBUDDY® SELECT II™, REMOVE ALL CONTENTS FROM THE SHIPPING PACKAGE.
Select II™ Unit
Handle
Control
Panel
Handle Lock Release
NOTE: If there is ANY shipping damage, immediately call BrakeBuddy® Technical Service at 800-470-2287
BRAKEBUDDY® UNDER TOWED VEHICLE HOOD WIRING
4 feet of wire
8 feet of wire
Hopkins Manufacturing Corporation
INSIDE THE BOX
Wireless Remote
Break-Away Kit
Dash Mount Connector
Towed vehicle firewall
Grommet
Ground wire
to vehicle frame
Black wire from Dash Mount
to battery wire
Connect brown and red wires
from Dash Mount Connector
to wires from Break-Away Switch
Break-Away Switch
Dash Mount Connector
15 AMP Charger
15 AMP
battery charger
Ground
Battery wire
Connect to RV
auxiliary power

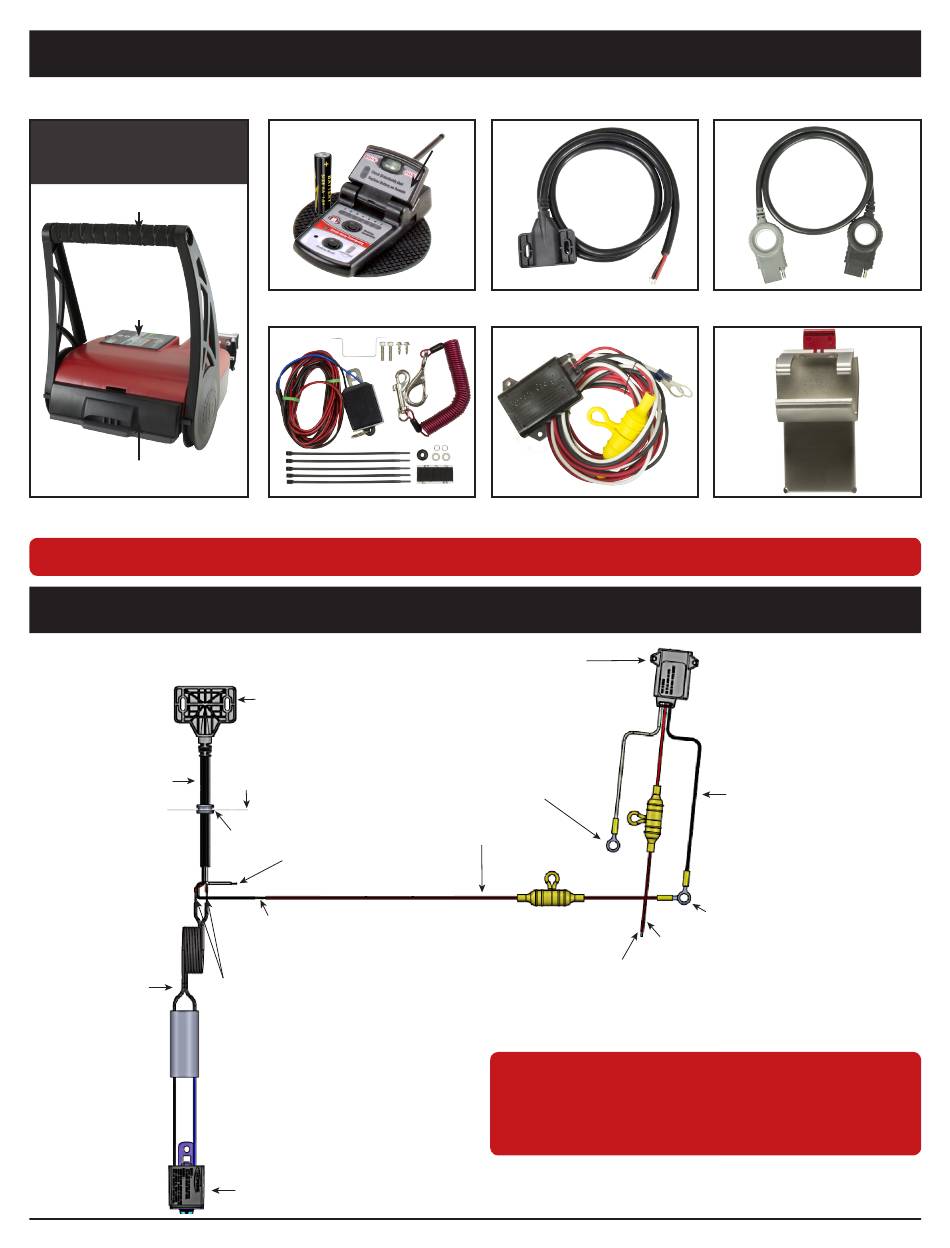

PLEASE FOLLOW THIS DIAGRAM TO INSTALL
BRAKEBUDDY® AND GET READY TO TOW
BrakeBuddy.com
Easy-Pull™ Power Cord
Quick Connect™ Clevis
4 feet of wire
Positive battery terminal
8 feet of wire
1-800-470-2287
