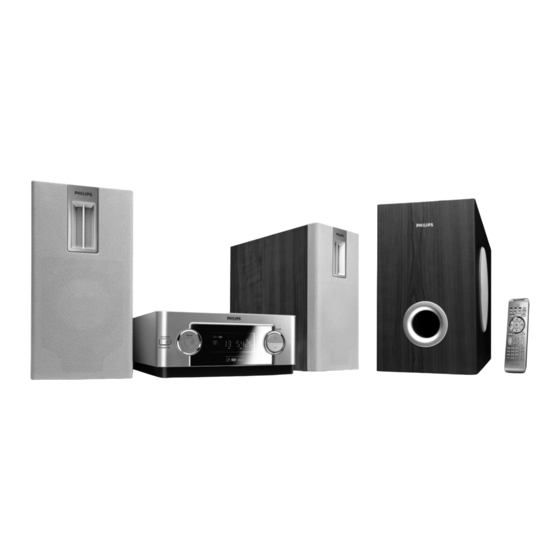

Summary of Contents for Philips MCD149/12
Page 1

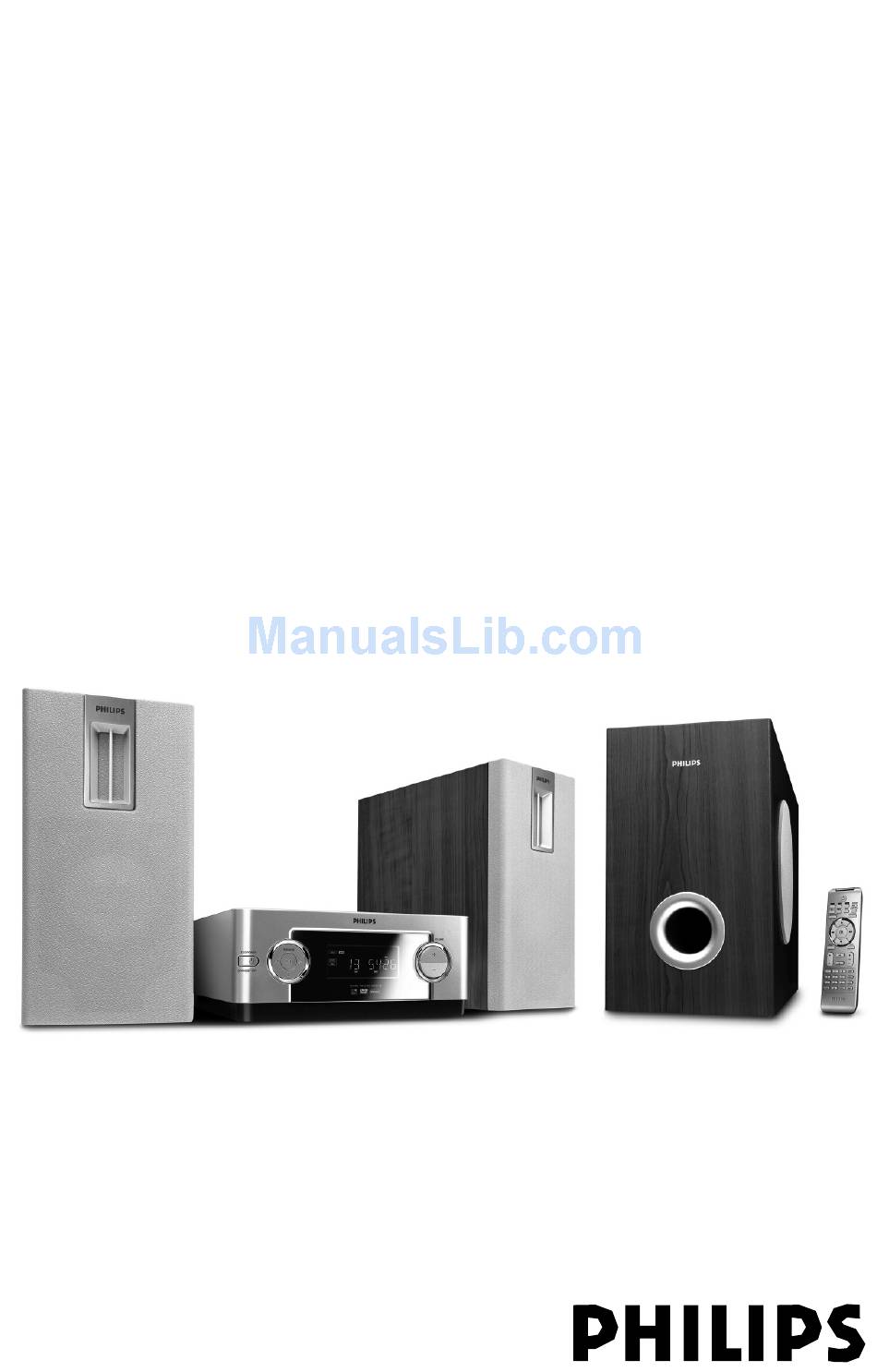

DVD Micro Theatre Register your product and get support at www.philips.com/welcome User manual Manuel d'utilisation Manual de usuario Benutzerhandbuch Gebruikershandleiding Manuale dell'utente Användarhandbok Brugervejledning MCD149...
See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972. Italia DICHIARAZIONE DI CONFORMITA’ Si dichiara che l’apparecchio MCD149 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548. Fatto a Eindhoven...
Page 5
Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten. Klass 1 laseraparat Varning! Om apparaten används på...
Page 6
Language Code Abkhazian 6566 Afar 6565 Afrikaans 6570 Amharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Avestan 6569 Aymara 6589 Azerhaijani 6590 Bahasa Melayu 7783 Bashkir 6665 Belarusian 6669 Bengali 6678 Bihari 6672 Bislama 6673 Bokmål, Norwegian 7866 Bosanski 6683 Brezhoneg 6682 Bulgarian...
Page 7
Index English ------------------------------------------------ 8 Français -------------------------------------------- 40 Español --------------------------------------------- 74 Deutsch ------------------------------------------- 108 Nederlands -------------------------------------- 142 Italiano -------------------------------------------- 176 Svenska ------------------------------------------- 210 Dansk --------------------------------------------- 244...
Contents General Information Features ... 10 Discs for playback ... 10 Supplied accessories ... 10 Environmental information ... 11 Care and safety information ... 11 Connections Step 1: Placing speakers and subwoofer ... 12 Step 2: Connecting speakers and subwoofer 13 Step 3: Antenna connection ...
Page 9
System Menu Options Basic operations ... 29 SYSTEM SETUP ... 29-30 TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT DIVX(R) VOD registration code LANGUAGE SETUP ... 31 VIDEO SETUP ... 31 BRIGHTNESS CONTRAST SATURATION TV MODE AUDIO SETUP ... 31 DIGITAL OUT DOWNMIX 3D PROCESSING...
General Information Congratulations on your purchase and welcome to Philips! To fully benifit from the support that Philips offers, register your product at www.philips.com/welcome Features Additional Component Connections Lets you connect other audio and audio/visual components to the system so you can use the system’s surround sound speakers.
Cleaning the disc lens ● After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.
Connections Speaker (right) IMPORTANT! – The type plate is located at the rear of the system. – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. – Never make or change any connections with the power switched on.
Step 2: Connecting speakers and subwoofer 1.000 DB15 CONNECTOR TO MAIN UNIT SPEAKERS 4 Connect the supplied DB15 cable to DVD player’s DB15 CONNECTOR TO SPEAKER jack and the Subwoofer’s DB15 CONNECTOR TO MAIN UNIT jack. ● Fix the two screws on each connector to ensure firm connection.
Antenna In jack (or labelled as 75 ohm or RF In), you will need a RF modulator in order to view the DVD playback via TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations. RF coaxial cable to TV ANT IN...
Step 5: Connecting the power cord IMPORTANT! – Never make or change any connection with the power switched on. After everything is connected properly, connect the AC power cord to the system and then to the power outlet. Optional: Connecting additional equipment IMPORTANT! –...
Connections Step 6: Connecting digital audio equipment 1.000 Digital audio recorder Recording (digital) Connect the system’s DIGITAL OUT jack to the DIGITAL IN jack on a digital recording device (DTS-Digital Theater System compatible, with a Dolby Digital decoder, for example). Before operation, set DIGITAL OUTPUT according to the audio connection.
Controls on the system – enables or disables bass enhancement. – selects different types of preset sound equalizer settings. TUNING à / á Tuner ... searches for a radio station Disc ... fast searches backward/forward in a disc at different speeds. ECO POWER/STANDBY-ON B –...
Page 18
Controls í/ë – Disc: skips to the previous/next chapter/title/ track. – Tuner: selects a preset radio station. – In DISC mode, to stop playback or clear a program. – In DISC mode, to start or interrupt playback. VOL +/- – adjusts the volume upward/downward.
IMPORTANT! – Make sure to complete the preparation procedures before operating the system. Before using the remote control Pull out the plastic protective sheet. Select the source you wish to control by pressing one of the source select keys on the remote control (for example DISC, TUNER).
Page 20
Preparations In stop mode or during playback, press SYSTEM MENU. Press 22/33/5/4 on the remote control to toggle through the functions and select your preferential option. ➜ Move to SYSTEM SETUP and press 4. ➜ Move to one of the following and press 33. –...
Press 22/33 repeatedly to select "VIDEO SETUP". Select "TV MODE" to "P-SCAN", then OK to confirm. ➜ The instruction menu appears on the TV. Press 22/33 to highlight OK in the menu and press OK to confirm. There will be a distorted picture on your TV at this state until you turn on the progressive scan mode on your TV.
Basic Functions Switching the system on ● Press ECO POWER/STANDBY-ON B on the front panel. ➜ The system will switch to the last selected source. ● Press SOURCE repeatedly (or DISC, USB, TUNER or AUX on the remote). ➜ The system will switch to the selected source. Switching the system to Eco Power Standby mode ●...
Plug and Play (for tuner installation) Plug and play allows you to store all available radio stations automatically. If plug and play has not been installed When you turn on the system, “AUTO INSTALL- PRESS PLAY TO START” will be displayed.
Video In channel. (See "Setting up the TV".) Press ECO POWER/STANDBY-ON 2 on the DVD Player front panel. ➜ You should see the blue Philips DVD background screen on the TV. Push OPEN/CLOSE on the system to open the disc door.
Zoom (DVD/VCD/JPEG) Zooming allows you to enlarge or reduce the video image during playback. Press ZOOM on the remote repeatedly to enlarge or reduce the playback video image. Press 22/33/5/4 to pan across the TV screen. Repeat and shuffle modes (DVD/VCD/CD/MP3/WMA) ●...
Disc Operations Forward/Reverse Searching (DVD/VCD/ CD/MP3/WMA) Press TUNING 22/33 during playback to select the required speed: X2, X4, X8 or X20 (backward or forward). ➜ Sound will be muted. To return to normal speed, press 2;. Time search & search by chapter/track number (DVD/VCD/CD/MP3/WMA) Press GOTO until the time or chapter/track edit box appears.
Playing MP3/WMA/JPEG Disc IMPORTANT! – You have to turn on your TV and set to the correct Video In channel. (See "Setting up the TV".) Playing MP3/WMA disc General operation Load an MP3/WMA disc. ➜ A data disc menu appears on the TV screen and playback starts automatically from the first track.
Disc Operations Special JPEG features Zoom picture (JPEG) ● During playback, press ZOOM repeatedly to display the picture with different scales (ZOOM2, ZOOM3 and ZOOM4). ● Use 22/33/5/4 to view the zoomed picture (ZOOM1/2, ZOOM1/3 and ZOOM1/4). Playback with multi-angles (JPEG) ●...
Basic operations Press SYSTEM MENU to enter the Setup Menu. Press 22/33 to select a page to be set. Press 5/4 to highlight an option. Enter its submenu by pressing 33 or OK. Move the cursor by pressing 5/4 to highlight the selected item.
– When this function is activated, all settings will be reset to factory defaults. DIVX(R) VOD registration code ® Philips provides you the DivX Demand) registration code that allows you to rent and purchase videos using the DivX service. For more information, visit us at www.divx.com/ vod.
LANGUAGE SETUP The options included in LANGUAGE SETUP page are: "OSD LANGUAGE", "AUDIO LANG", "SUBTITLE LANG" and "MENU LANG". See "Preparations-Step 4: Setting language preference" for details. VIDEO SETUP The options included in VIDEO SETUP page are: "BRIGHTNESS", "CONTRAST", "HUE", "SATURATION"...
Radio Reception Tuning to radio stations Press SOURCE on the set or TUNER on the remote repeatedly until the desired waveband (FM) is displayed. Press and hold TUNING 22/33 and release the button. ➜ The radio automatically tunes to a station with sufficient reception.
Using a non-USB device Connect the system's AUX IN jack to the AUDIO OUT jacks on another audio/visual device (such as a VCR, Laser Disc player or cassette desk). Press AUX to select external equipment. ➜ "AUX" is displayed. Note: –...
External Sources How to transfer music files from PC to a USB mass storage device By dragging and dropping music files, you can easily transfer your favorite music from PC to a USB mass storage device. For the flash player, you can also use its music management software for the music transfer.
Clock setting See "Preparations-Step 2: Setting the clock". Timer setting ● The system can be used as an alarm clock, whereby DISC, USB or TUNER is switched on at a set time (one time operation). The clock time needs to be set first before the timer can be used. In standby mode, press and hold SLEEP/ TIMER on the remote control for more than three seconds.
Specifications AMPLIFIER Output power ... 2 x 50 W + 100W RMS Signal-to-noise ratio ... ≥ 60 dBA Frequency response ... 35– 20000 Hz, ± 3 dB Input sensitivity AUX ... 0.9 V (max. 2 V) Impedance loudspeakers ... 4 Ω DVD PLAYER Laser Type ...
Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help. Problem No power.
Page 38
Troubleshooting Problem The language for the sound or subtitle cannot be changed when playing a DVD. No image is output when a function is selected. Sound cannot be heard or is of poor quality Poor radio reception. Left and right sound outputs are reversed.
Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs.
Page 40
Meet Philips at the Internet http://www.philips.com MCD149 CLASS 1 LASER PRODUCT Printed in China PDCC-LL/ZC-0737...
