Page 1: User Manual

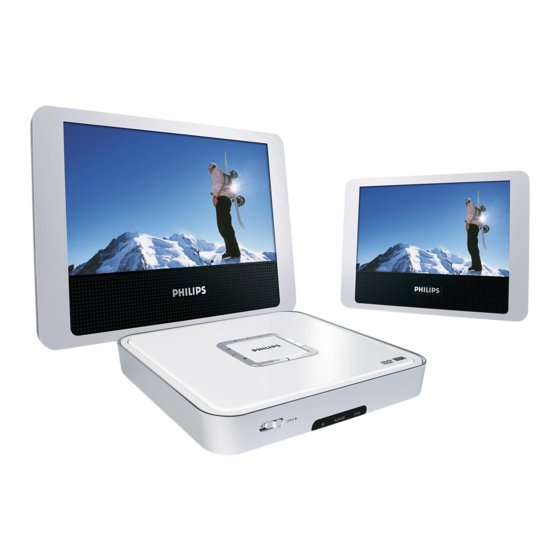

Portable DVD player with Dual Display Screens Register your product and get support at www.philips.com/welcome User manual... -
Page 2: Table Of Contents
1. Important Safety instructions Environmental information Power Sources Hearing Safety 2. Introduction Your portable DVD player Unpacking Overview 2.3.1 Main unit controls 2.3.2 Display controls 2.3.3 Remote Control 3. Prepration 3.1 Install the DVD player in car 3.2 Connect AV cable 3.3 Connect power cable 3.3.1 Power connection for the screens... -
Page 3: Safety Instructions
1. Important 1.1 Safety instructions • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -
Page 4: Environmental Information
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Battery usage: CAUTION To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit: •... - Page 5 to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste.
-
Page 6: Power Sources
1.3 Power Sources This unit operates on a supplied AC adapter or car adapter. • Make sure that the input voltage of the AC adaptor is in line with the local voltage. Otherwise, the AC adaptor and unit maybe dam- aged. -
Page 7: Hearing Safety
1.4 Hearing Safety Listen at a moderate volume • Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. - Page 8 In case this oneneeds replacement, we recommend that you contact yourretailer to order a model identical to that of the originalprovided by Philips. • Traffic safety: do not use while driving or cycling as you maycause...
-
Page 9: Your Portable Dvd Player
2. Introduction Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. 2.1 Your portable DVD player Your portable DVD player plays digital video discs conforming to the universal DVD Video standard. With it, you can play movies with true cinema picture quality and stereo or multi-channel sound (depending on disc and playback set-up). -
Page 10: Main Unit Controls
2.3 Overview Use the controls only as stated in the user manual. 2.3.1 Main unit controls... -
Page 11: Display Controls
1 3, 4 2 J( )K 3 2; 4 MENU 6 SETUP 8 – VOL + 9 POWER B 10 POWER/IR Power/Remote sensor indicator 11 OPEN 12 AV out 1 and 2 13 DC OUT 14 DC IN 2.3.2 Display controls Move cursor up / down Skip to previous/next chapter, track or title Move cursor to left/right... -
Page 13: Remote Control
1 DISPLAY 2 POWER ON/OFF 3 1, 2 5 – VOL + 6 DC IN 7 Audio In L(left) and R(right) 8 VIDEO IN 2.3.3 Remote Control Setup screen display Turn the screen on/off Adjust display value of the screen Headphone jack Adjust volume Power supply from the DVD player... -
Page 14: Numeric Keypad
1 SETUP 2 3, 4, 1, 2 3 OSD 4 J( 5 PLAY/PAUSE 2; 6 MUTE 7 Numeric Keypad 0 - 9 8 SUBTITLE 9 RETURN 10 A-B 11 DVD MENU Return to main menu of DVD disc 12 TITLE 13 )K 14 STOP 15 AUDIO... -
Page 15: Install The Dvd Player In Car
3. Prepration 3.1 Install the DVD player in car 1 Strap the car pouches over your car seat headrest. 2 Insert the DVD player and the two screens into the pouches. 3 Close the buckle and adjust the belt until it fits tightly around the headrest. -
Page 16: Connect Av Cable
3.2 Connect AV cable There are two AV cables supplied, one for each screen is to be used. 1 Connect AV cable to the DVD player and to the screen as the figure shown below. Note: Match the color of the AV cable with the jacks: the yellow cable is for the yellow video jack, the red/white cable is for the red/white audio jacks. -
Page 17: Connect Power Cable
3.3 Connect power cable 3.3.1 Power connection for the screens 1 Plug the green end of the supplied Y-type power cord to the DVD player first, then plug the other side with two ends to the two- screens (see figure below). - Page 18 3.3.2 Power connection for the DVD player option 1: using car adaptor 1 Connect the car cigarette adaptor to the DVD player and to the Car Cigeratte Lighter. (see figure below)l Option 2: Using AC adapter 1 Connect the AC adapter to the DVD player and the main power supply (see figure below).
-
Page 19: Connect Headphones
3.4 Insert battery into remote control For first time use: Pull out the protective plastic tab. For change battery: 1 Open the battery compartment cover. 2 Insert 1 x CR2025 3V lithium battery. 3 Close the cover. 3.5 Connect headphones Plug the headphones into the p jack of your DVD Player DVD player or screen. -
Page 20: Load Disc
4. Basic functions 4.1 Power on 1 Power on the DVD player and the two screens by: – Switch the POWER switch on the DVD player to ON position. – Press the POWER ON/OFF button on the screens. 4.2 Select On-Screen-Display(OSD) language English is the default language for screen display. -
Page 21: Adjust Volume
For MP3 CDs Use 1, 2, 3, 4 to select folder and MP3 file, then press OK to start play. For Picture CDs Use 1, 2, 3, 4 to select folder and JPEG file, then press OK to view the picture. 2 During play, press J( or §... - Page 22 Contrast: to adjust the contrast ( Display ratio: 16:9 display mode ( 2 Press 1 or 2 to change value.. )of thescreen ) or 6:9 display mode (...
- Page 23 5. Special functions 5.1 Change audio language (for DVD) Some DVD contain two or more audio languages for selection. You can change language by: 1 Press AUDIO repeatedly. 5.2 Change subtitle (for DVD) If the disc contains two or more subtitle languages, you can 1 Press SUBTITLE.
-
Page 24: Repeated Play
5.6 Repeated play A-B repeat 1 Press A-B to set the starting point . 2 Press A-B again to set the ending point. • The DVD player starts play the loop repeatedly. 3 Press A-B to cancel repeat play. Repeat 1/all (For audio/MP3 CD) 1 Press OSD. - Page 25 6. Setup operation You can change the following default settings of the DVD player by: 1 Press SETUP. A list of features is shown. 2 Press 3 4 to highlight the selection. 3 Press 2 to enter its sub-menu • Press 1 to return to the previous menu. 4 Press OK to confirm.
- Page 26 Power Consumption Operating temperature range 0 - 50°C Laser wavelength Video system PHILIPS reserves the right to make design and specifi cation changes for product improvement without prior notice. Modifi cations not authorized by the manufacturer may void users authority to operate this device.
-
Page 27: Handling Discs
8. Maintenance 8.1 General • Do not use any cleaning agents containing alcohol, ammonia, ben- zene, or abrasives as these may harm the player. • Take care not to drop the unit or subject it to strong shocks,which may cause malfunction. •... - Page 28 Philips web site www.welcome.philips.com/ us_en/, or contact Philips (see Contact information). When you contact Philips, ensure that your micro system is nearby and the model number and serial number are available. To keep the warranty valid, never try to repair the system yourself.
- Page 29 No sound Disc can’t be played The player does not respond to the remote control Distorted or B/W picture with Player does not respond to all operating commands during playback Player feels warm • Check if both plugs of the mains cord are properly connected.
-
Page 30: Copyright Information
Copyright information The making of unauthorized copies of copy-protected material, including com- puter programmes, files, broadcasts and sound recordings, may be an infringe- ment of copyrights and constitute a criminal offence. This equipment should not be used for such purposes. Important notes for users in the U.K. - Page 31 • As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows: – Connect the blue wire to the terminal marked N or co- loured black. – Connect the brown wire to the terminal marked L or coloured red.
