Connecting to Optional
Equipment

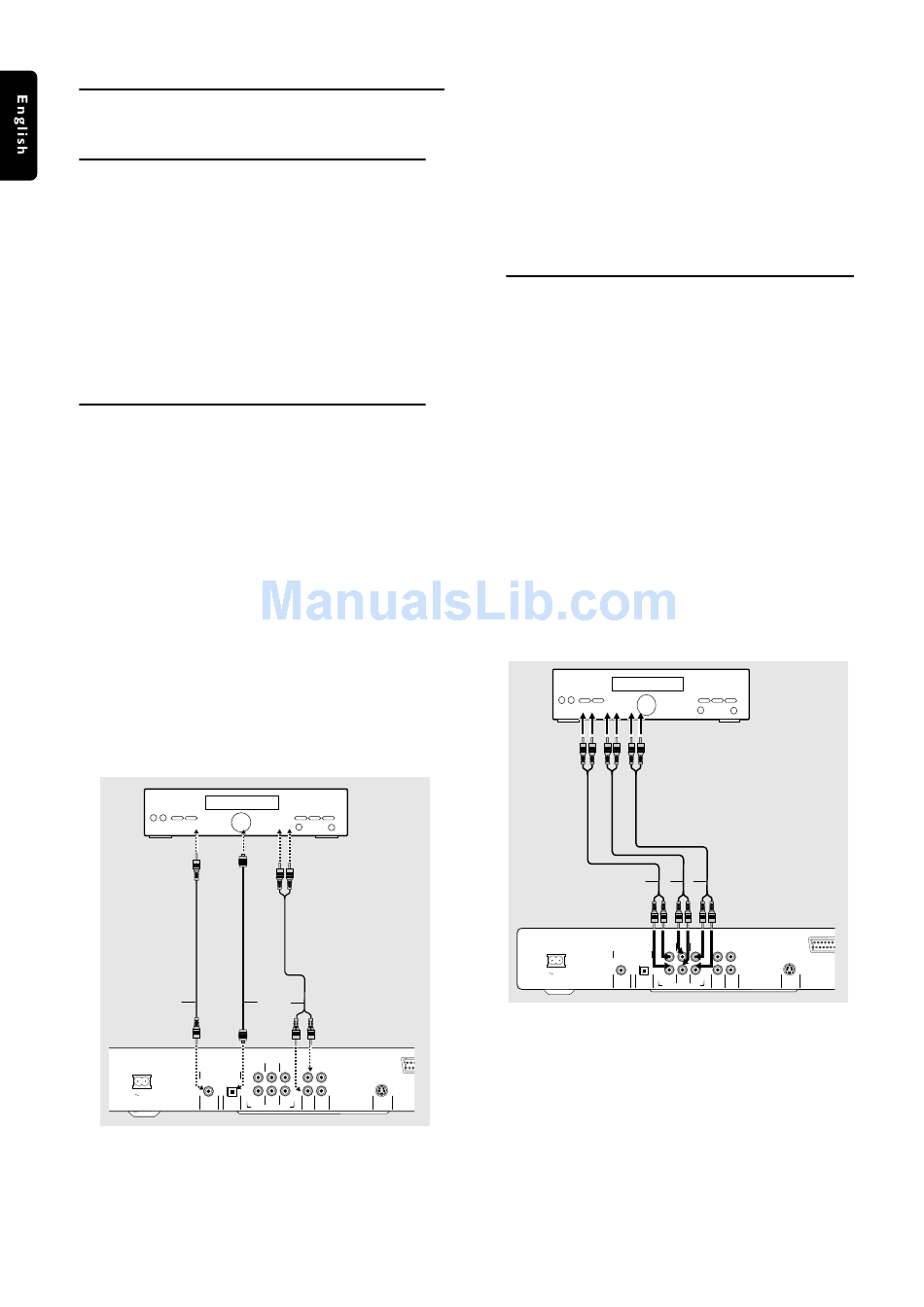

Connecting to an amplifier equipped with
two channel analog stereo or Dolby
Surround
1
Connect the Left and Right audio out jacks of the DVD
player to the audio left and right in jacks on your amplifier,
receiver or stereo system, using the optional audio cable
(A).
Note:
– You cannot use the MP3 function with the Digital Out
connectors.
Connecting to an amplifier equipped with
two channel digital stereo (PCM) or to an
Audio/Video receiver equipped with a
multi-channel decoder (Dolby Digital™,
MPEG 2 and DTS)
1
Connect the player’s digital audio out jack (optical G or
coaxial F) to the corresponding in jack on your amplifier.
Use an optional digital (optical G or coaxial F) audio cable.
2
You will need to activate the player’s digital output (see
‘Personal Preferences’).
Digital Multi-channel sound
The digital multi-channel connection provides the best
sound quality. For this you need a multi-channel A/V
receiver that supports one or more of the audio formats
supported by your DVD player (MPEG 2, Dolby Digital™
and DTS). Check the receiver manual and the logos on the
front of the receiver.
AMPLIFIER
F
G
A
FRONT
SURROUND
CENTER
TV OUT
DIGITAL AUDIO OUT
L
1
PCM/MPEG2/AC-3/DTS
L
R
2
R
MAINS
SURROUND
SUB WF
FRONT
AUDIO
CVBS
S-VIDEO
COAXIAL
OPTICAL
OUT
MULTICHANNEL AUDIO OUT
Warning:
Due to DTS Licencing agreement, the digital
output will also be in DTS digital out when DTS
audio stream is selected.
P
REPARATION
Note:
– If the audio format of the digital output does not match the
capabilities of your receiver, the receiver will produce a strong,
distorted sound or no sound at all.
– Six Channel Digital Surround Sound via digital connection
can only be obtained if your receiver has a Digital Multi-
channel decoder.
– To see the selected audio format of the current DVD in the
Status Window, press SYSTEM MENU or Audio button.
Analog connection to a multi-channel A/V
receiver with 6 CH connectors (Dolby
Digital & DTS)
This DVD player contains a multi-channel decoder. This
enables playback of DVDs recorded in Multi-channel
Surround without the need for an optional decoder.
1
Connect the audio out jacks for Center speaker and
Subwoofer connection (C) to the corresponding in jacks on
your receiver.
2
Connect the audio Left and Right out jacks for Front
speaker connection (B) to the corresponding in jack
sockets on your receiver.
3
Connect the audio Left and Right out jacks for Surround
speaker connection (D) to the corresponding in jacks on
your receiver.
4
Make the appropriate Sound settings for Analog Output
and Speaker Settings in the Personal Preferences menu.
AMPLIFIER
C
B
D
FRONT
SURROUND
CENTER
TV OUT
DIGITAL AUDIO OUT
L
1
PCM/MPEG2/AC-3/DTS
L
R
2
R
MAINS
SURROUND
SUB WF
FRONT
AUDIO
CVBS
S-VIDEO
COAXIAL
OPTICAL
OUT
MULTICHANNEL AUDIO OUT
