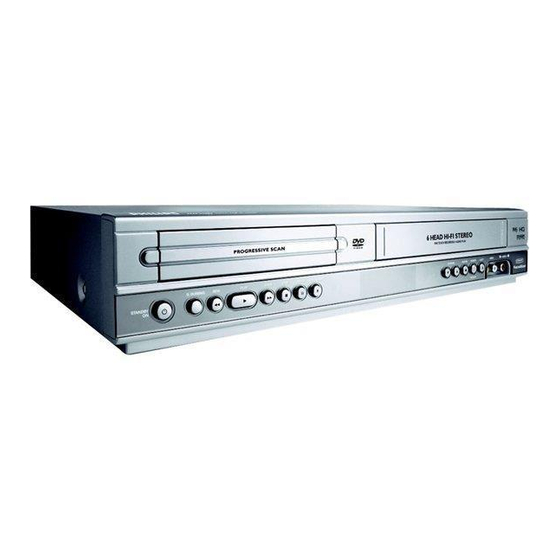

Philips dvd/vcr player dvp3100v direct dubbing progressive scan
Hide thumbs Also See for DVP3100V/02:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Download this manual See also: User Manual
SCART IN
1
Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you
have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.
2
Connect the EURO AV1 AUDIO/VIDEO on the rear panel of this DVD/VCR to the SCART input on the TV
using the SCART cable (supplied).
3
Connect your existing RF cable from the Antenna TV signal directly to the AERIAL jack on the rear of the
DVD/VCR.
If you have a Cable Box (or Satellite Receiver), connect the OUT jack of the Cable Box/Satellite Receiver to the AERIAL
jack on the DVD/VCR using an RF coaxial cable (not supplied).
4
Connect the supplied black RF cable to the DVD/VCR's RF-OUT jack and to your TV's ANTENNA IN jack.
The TV's ANTENNA IN jack could be labelled 75-ohm, TV IN, or RF IN. Check your TV manual for details.
5
Connect the power cords of the DVD/VCR,TV, and Cable Box (if applicable) to a power outlet.
6
Turn on the TV power. Set the TV to a video channel. (See the accompanying DVD/VCR owner's manual for
details.)
7
Press STANDBY-ON/POWER 2 on the DVD/VCR or its remote to turn on the DVD/VCR. The first time
you turn on the DVD/VCR, you should complete the VCR setup. See the other side of this Quick-Use Guide for
details.
DVP3100V
TV SIGNAL
4
2
SCART IN
Cable box (optional)
IN
OUT
CABLE
RF
CABLE
Antenna
3
5
SgpSL/0509/02_8

Advertisement

Table of Contents
loading

Related Manuals for Philips DVP3100V/02

Summary of Contents for Philips DVP3100V/02

  • Page 1 SCART IN SCART IN Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you have finished hooking up everything. Never make or change connections with equipment connected to the power outlet. Connect the EURO AV1 AUDIO/VIDEO on the rear panel of this DVD/VCR to the SCART input on the TV using the SCART cable (supplied).

  • Page 2: Playing A Disc

    Playing a Disc With the TV and DVD/VCR on, press the DVD button to put the DVD/VCR in DVD mode. Press OPEN/CLOSE / to open the disc tray. Put a Disc in the tray with the label facing up and the shiny side facing down. Press OPEN/CLOSE / again to close the tray.

  • Page 3: Lecture D'un Disque

    Déconnectez tous les appareils des prises de courant. Connectez l’appareil à la prise de courant seulement après avoir tout raccordé. N’établissez et ne modifiez jamais les connexions lorsque l’appareil est connecté à une prise de courant. Reliez la prise EURO AV1 AUDIO/VIDEO sur la face arrière du magnétoscope/lecteur de DVD à...

  • Page 4: Wiedergabe Einer Disk

    Netzstecker der gesamten Ausrüstung ziehen. Die Ausrüstung erst an Steckdosen anschließen, nachdem alle Geräteanschlüsse erfolgt sind. Niemals Anschlüsse vornehmen oder umstecken, wenn Ausrüstung an die Steckdose angeschlossen ist. Verbinden Sie die Buchse EURO AV1 AUDIO/VIDEO an der Rückseite dieses DVD-Players/Videorecorders mithilfe eines SCART -Kabels (im Lieferumfang) mit dem SCART - Eingang des Fernsehgerätes.
  • Page 5 Kody regionu ACMS Pr-12 ACMS OK i...
  • Page 6 4 3 1 ACMS Pr-12 ACMS OK i...

  • Page 7: Spela En Skiva

    Koppla från all utrustning från elnätet. Koppla inte utrustningen till elnätet igen förrän du har gjort alla anslutningar. Gör eller ändra aldrig några anslutningar med utrustning kopplad till elnätet Anslut SCART -kabeln (medföljer) från EURO AV1 AUDIO/VIDEO på bakpanelen på DVD+videobandspelaren till SCART -ingången på...
  • Page 8 Afbryd alt udstyr fra strømforsyningens stikkontakter. Tilslut kun udstyret til stikkontakterne, når du er færdig med at forbinde alt udstyret. Du må aldrig foretage eller ændre tilslutninger til udstyr, som er forbundet med en stikkontakt. Forbind EURO AV1 AUDIO/VIDEO på DVD/VCR- apparatets bagpanel med tv'ets SCART -indgang.
  • Page 9 Kytke kaikki laitteet irti virtalähteistä. Kytke laite virtalähteisiin vasta, kun olet tehnyt kaikki kytkennät. Älä koskaan suorita tai muuta virtalähteeseen liitetyn laitteen kytkentöjä. Liitä tämän DVD/Video-yhdistelmäsoittimen takapaneelissa oleva EURO AV1 AUDIO/VIDEO television SCART -tuloon SCART -kaapelilla (vakiovaruste). Liitä TV:n antennisignaalin RF-kaapeli suoraan DVD/Video-yhdistelmäsoittimen takana olevaan AERIAL- liittimeen.
