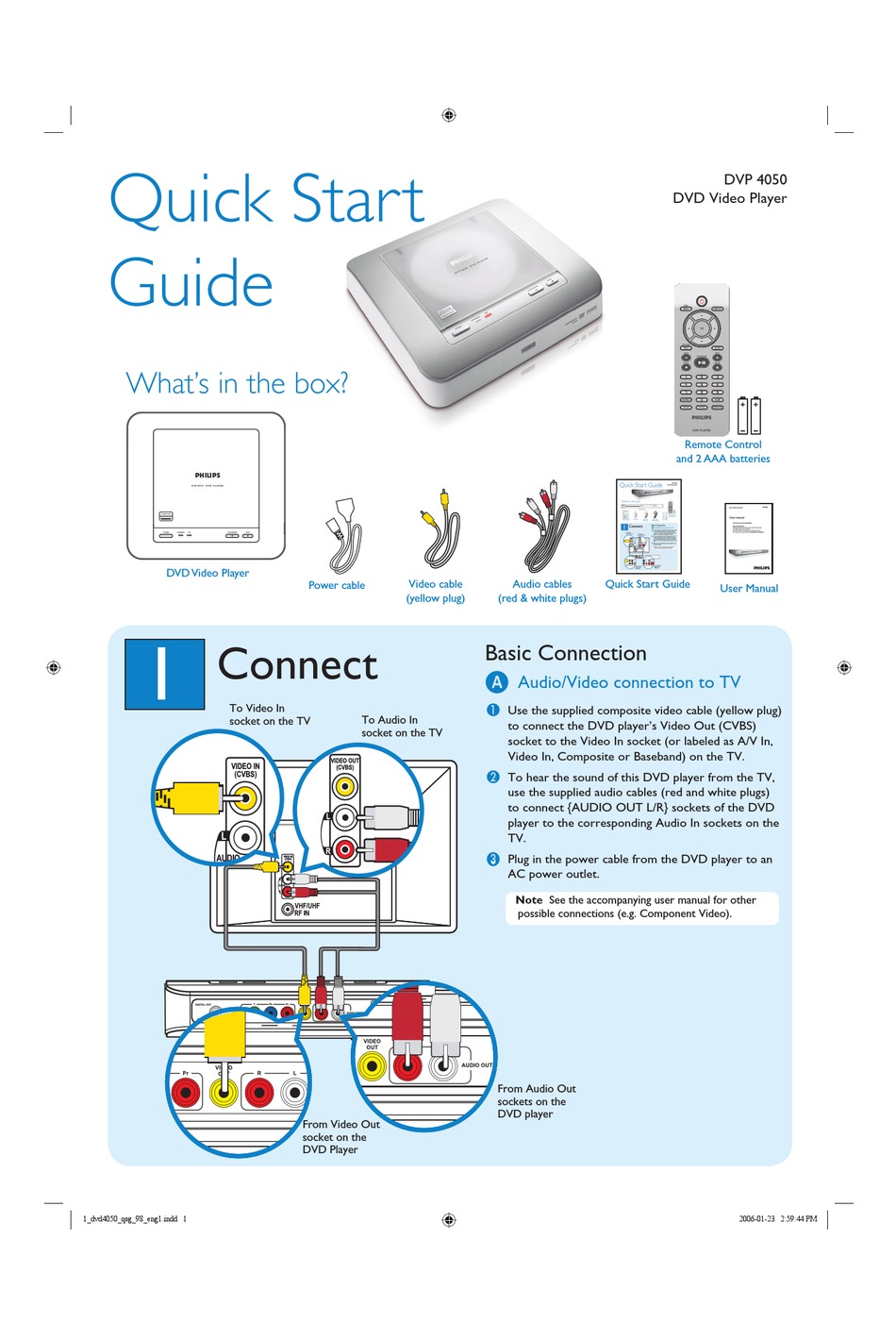

Quick Start
Guide
What's in the box?
DVD Video Player
1
Connect
To Video In
socket on the TV
VIDEO IN
(CVBS)
1_dvd4050_qsg_98_eng1.indd 1
1_dvd4050_qsg_98_eng1.indd 1
Video cable
Power cable
(yellow plug)
To Audio In
socket on the TV
VIDEO OUT
(CVBS)
VIDEO IN
(CVBS)
From Video Out
socket on the
DVD Player
Audio cables
Quick Start Guide
(red & white plugs)
Basic Connection
A
Audio/Video connection to TV
A
Use the supplied composite video cable (yellow plug)
to connect the DVD player's Video Out (CVBS)
socket to the Video In socket (or labeled as A/V In,
Video In, Composite or Baseband) on the TV.
B
To hear the sound of this DVD player from the TV,
use the supplied audio cables (red and white plugs)
to connect {AUDIO OUT L/R} sockets of the DVD
player to the corresponding Audio In sockets on the
TV.
C
Plug in the power cable from the DVD player to an
AC power outlet.
Note See the accompanying user manual for other
possible connections (e.g. Component Video).
From Audio Out
sockets on the
DVD player
DVP 4050
DVD Video Player
Remote Control
and 2 AAA batteries
DVP3020
User Manual
